Cable tray – sealed, 3 m, 150 mm

C2

E No:

|

MP-number: 330S

Unperforated cable tray. Painted trays are supplied with internally paint-free ends. Other lengths and colours quoted on request. The Sendzimir process is used to prevent corrosion and may result in slight variations in colour/appearance. Bracket distance is determined by the length of the rail. 2 m rail = C-C 2 m and 3 m rail C-C = 3 m. 6 m rail needs a suspension in the middle. These values apply at normal load.
All variants

Product details

  • MP-number 330S
  • EAN 7394333100401
  • Length 3000 mm
  • Width 150 mm
  • Height 45 mm
  • Weight 6.01 kg
  • Climate impact 16.167 kgCO2e
  • Surface treatment Pre-galvanized 20 µm
  • Corrosion class C2
  • Configuration Tight gutter

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

310S

3000 mm

75 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

320S

3000 mm

100 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

330S

3000 mm

150 mm

C2

Pre-galvanized 20 µm

Selected

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

340S

3000 mm

200 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

350S

2000 mm

300 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

360S

2000 mm

400 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

370S

2000 mm

500 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

380S

2000 mm

600 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

390S

3000 mm

50 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

310V

3000 mm

75 mm

C2

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

320V

3000 mm

100 mm

C2

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

330V

3000 mm

150 mm

C2

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

340V

3000 mm

200 mm

C2

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

350V

2000 mm

300 mm

C2

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

360V

2000 mm

400 mm

C2

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

370V

2000 mm

500 mm

C2

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

380V

2000 mm

600 mm

C2

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

390V

3000 mm

50 mm

C2

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

320SV

3000 mm

100 mm

C2

Lacquered

RAL 9005 (black)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

340SV

3000 mm

200 mm

C2

Lacquered

RAL 9005 (black)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

350SV

2000 mm

300 mm

C2

Lacquered

RAL 9005 (black)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

360SV

2000 mm

400 mm

C2

Lacquered

RAL 9005 (black)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

380SV

2000 mm

600 mm

C2

Lacquered

RAL 9005 (black)

Select

Relaterade produkter

C2

Luminaire bracket, 150 mm

E No:

MP-number: 632S

C2

Luminaire bracket, 50-200 mm

E No:

MP-number: 935S

C2

Supporting tray joint – centre or side suspension, 150 mm

E No:

MP-number: 334S

C2

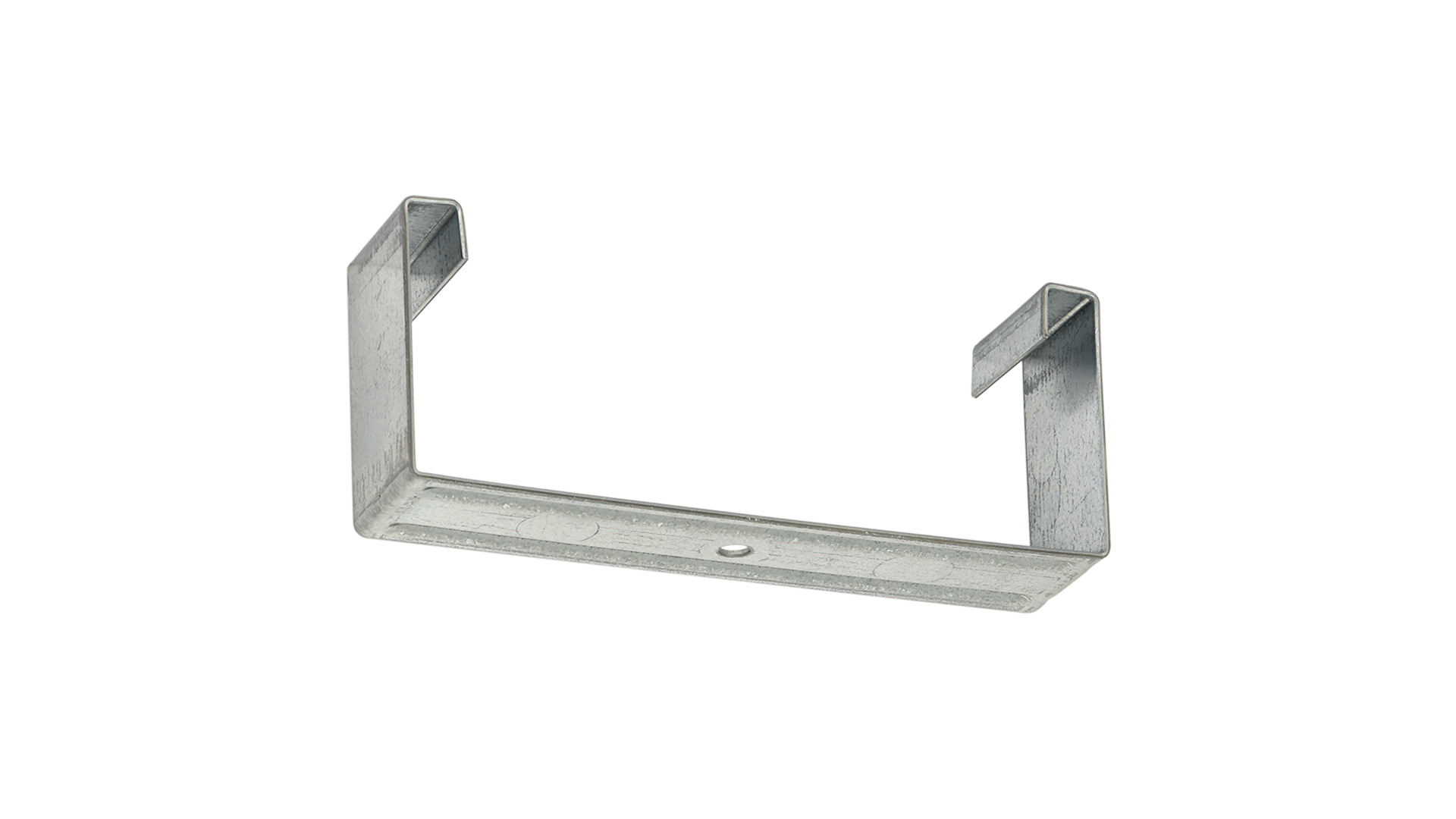

Beam hook wide tray/rail, 150 mm

E No:

MP-number: 536S

C2

Fixing plate perforated, 180x175 mm

E No:

MP-number: 953S

C2

Fixing plate perforated, 180x130 mm

E No:

MP-number: 955S

C2

Internal support bracket, 100-200 mm

E No:

MP-number: 942S

C2

L-branch tray, 150 mm

E No:

MP-number: 437S

C2

Cover, 3 m, 150 mm

E No:

MP-number: 430S

C2

Seam support, 150 mm

E No:

MP-number: 637S

C2

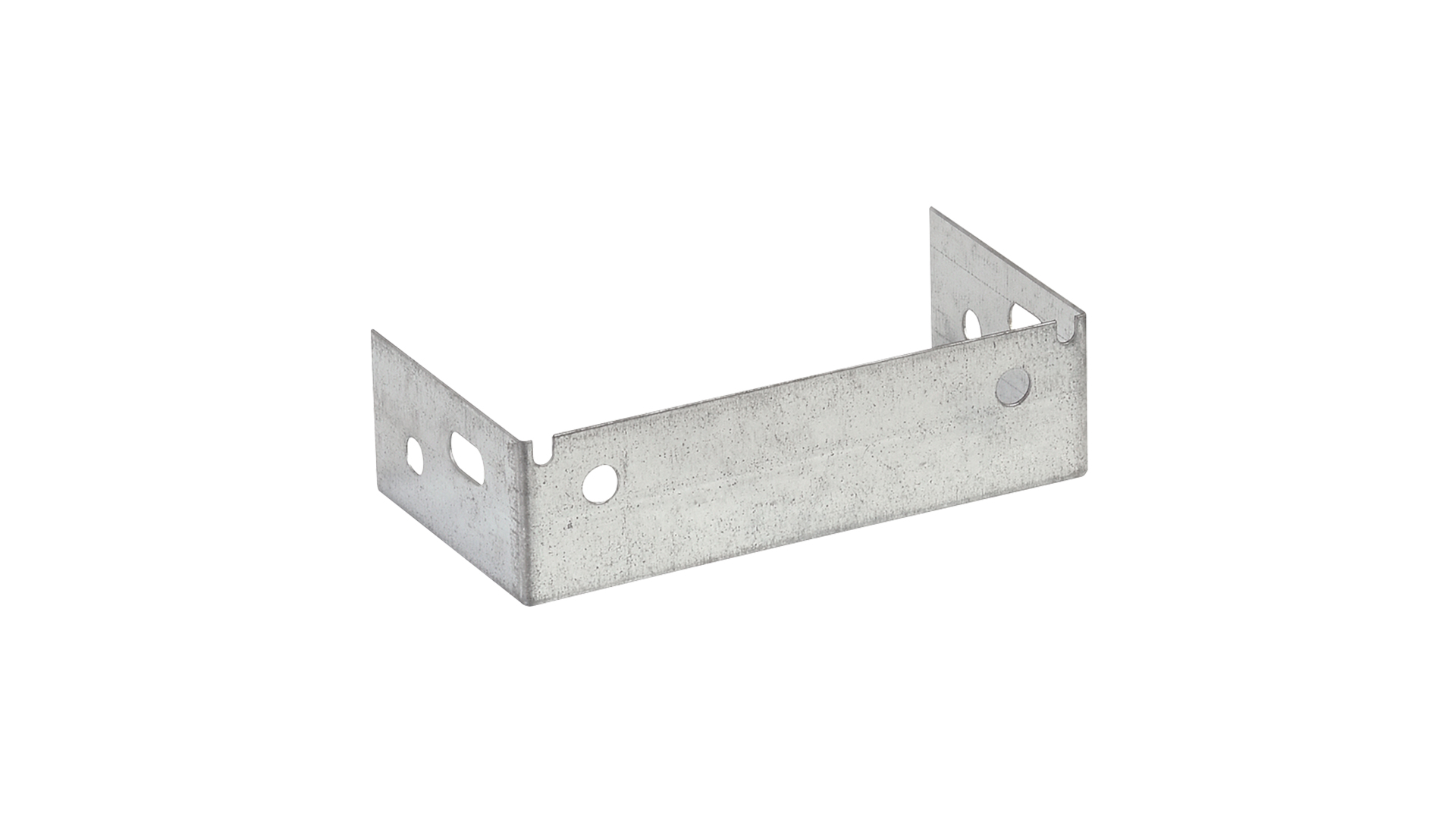

Level joint, 150 mm

E No:

MP-number: 338S

C2

Splice partition plate, 25 mm, 2750 mm

E No:

MP-number: 137S

C2

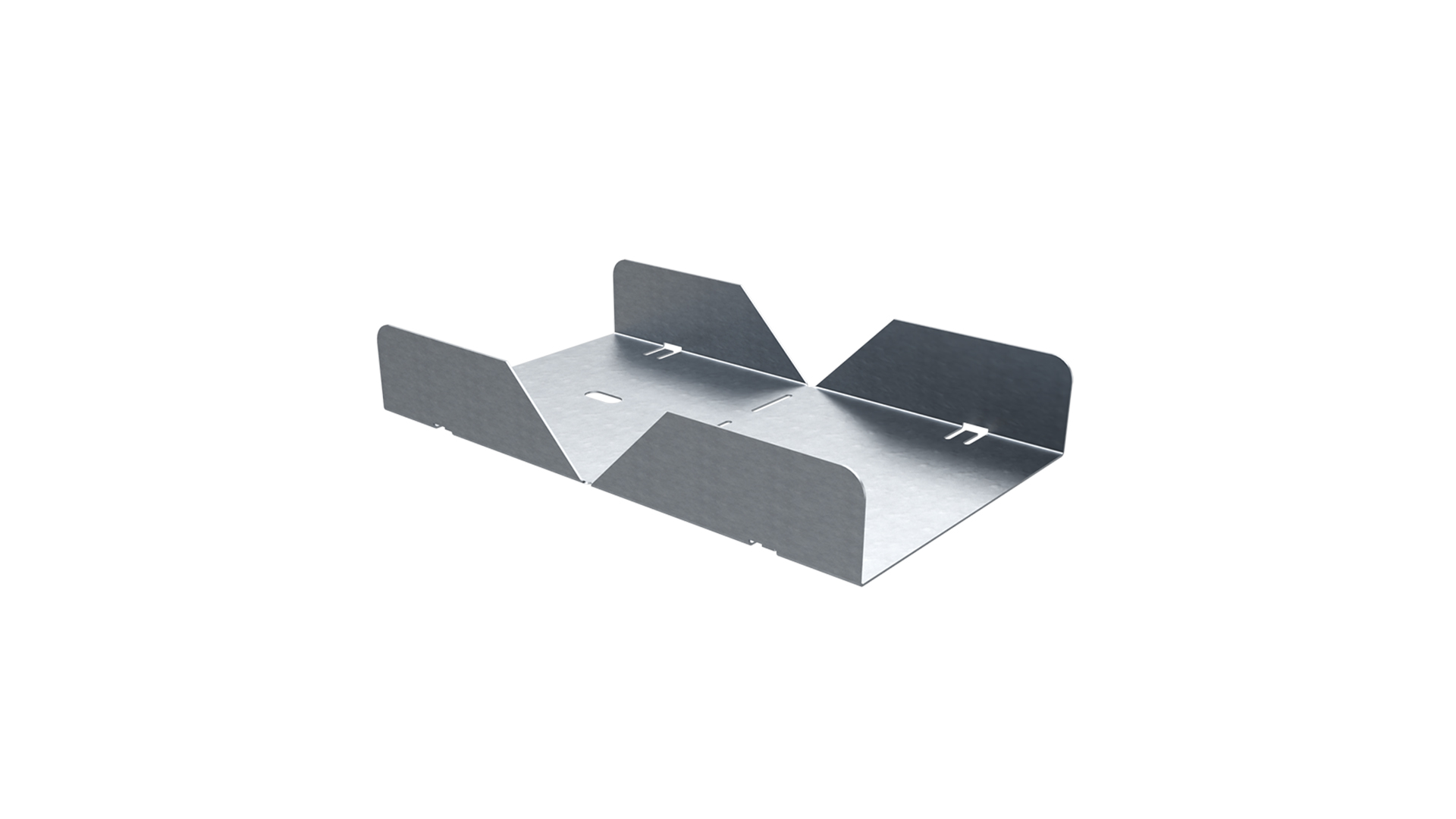

Adjustable bend, 150 mm

E No:

MP-number: 433S

C2

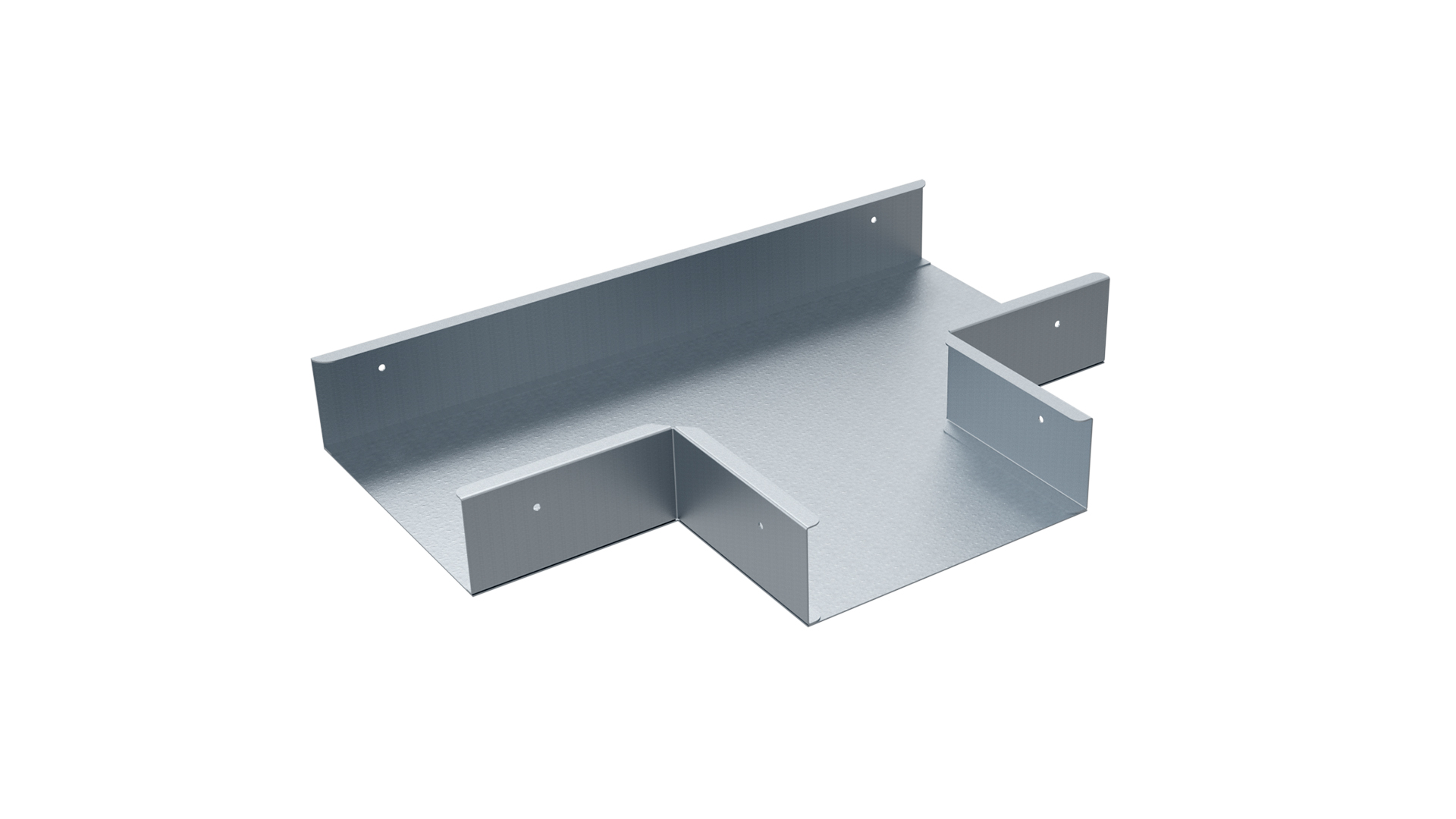

T-branch tray, 150 mm
