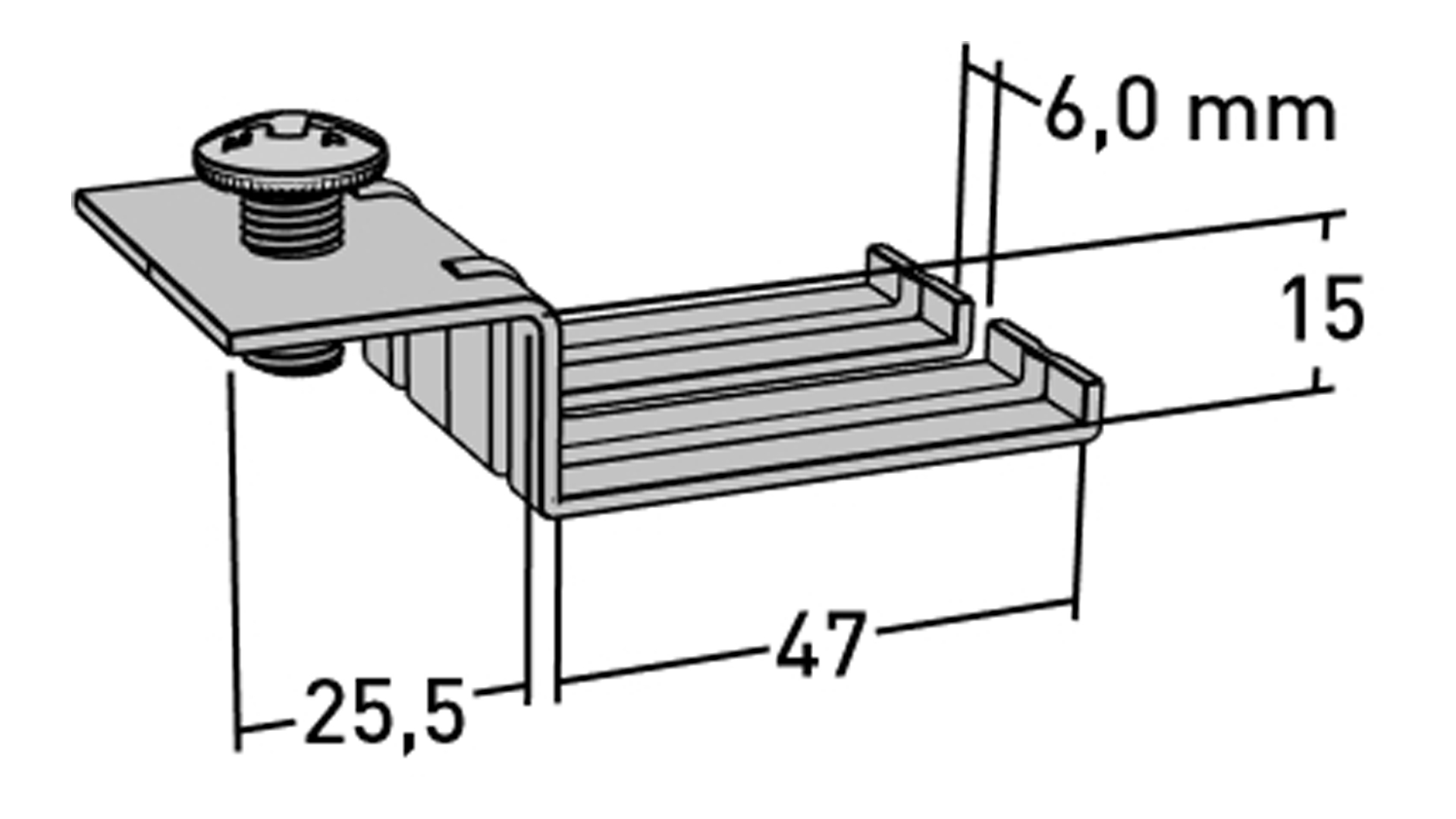

Luminaire bracket, 50-200 mm
C2
E No:
|
MP-number: 935S

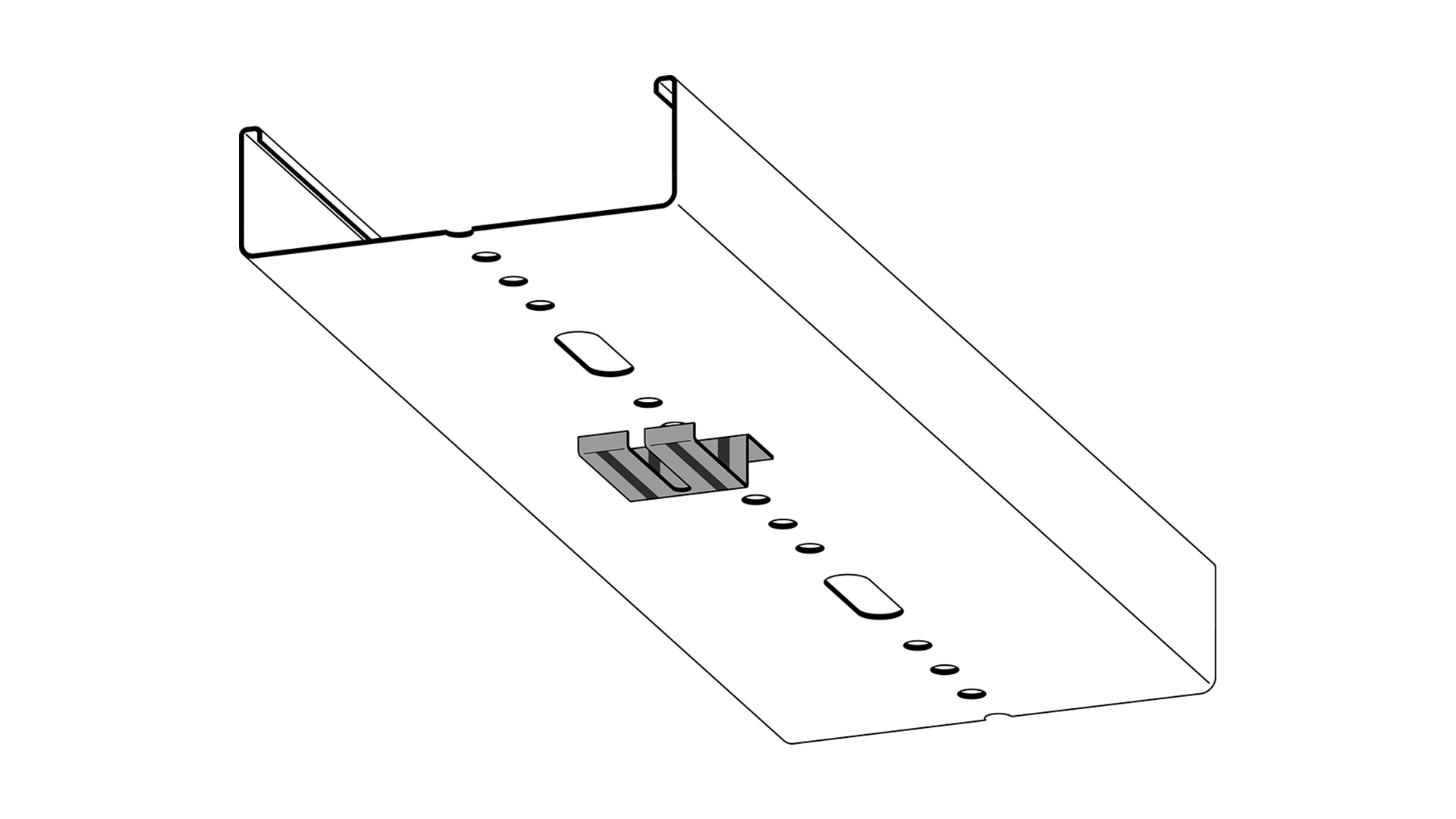

The angled luminaire bracket is screwed to hole system in the luminaire rail. TIP! First fit the bracket on the luminaire and align the fastening holes with the rail's hole system c-c 25 mm, then screw the luminaire onto the rail. The bracket is supplied with screw M8x16 mm.
All variants
Product details
- MP-number 935S
- EAN 7394333135977
- Length 75 mm
- Width 40 mm
- Height 19 mm
- Weight 0.05 kg
- Climate impact 0.161 kgCO2e
- Surface treatment Pre-galvanized 20 µm
- Corrosion class C2
- Suitable for Cable trays
Documents
Environmental data galvanized S_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Length
Width
Height
Surface treatment
Corrosion class
Suitable for
935S
75 mm
40 mm
19 mm
Pre-galvanized 20 µm
C2
Cable trays
