Pendulum bracket
C2
E No:
|
MP-number: 931S
Pendant bracket for centrally suspended support yokes for cable ladders, cable trays and luminaire rails with a width of 100–600 mm. The pendant bracket is made of Sendzimir galvanised sheet (20 µm) and is suitable for environmental class max C2. Install in an internal splice or support yoke by folding the legs into the groove on the splice/support yoke and then fixing with bolt set MP-937E to a pendant rail or fitting together with threaded rod bracket MP-925E.
All variants
Product details
- MP-number 931S
- EAN 7394333115863
- Length 30 mm
- Width 40 mm
- Height 115 mm
- Weight 0.12 kg
- Climate impact 0.323 kgCO2e
- Surface treatment Pre-galvanized 20 µm
- Corrosion class C2
- Suitable for Cable ladders, Cable trays
Documents
Environmental data galvanized S_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Surface treatment
Color
Corrosion class
931V
Lacquered
NCS S 0500-N (white)
C2
Relaterade produkter
C4
Angle bracket
E No:
MP-number: 900Z
C1
Screw set M8
E No:
MP-number: 937E
C1
Threaded rod mount M10, electro-galvanized
E No:
MP-number: 925E
C1
Threaded rod, 3 m
E No:
MP-number: 928E
C2

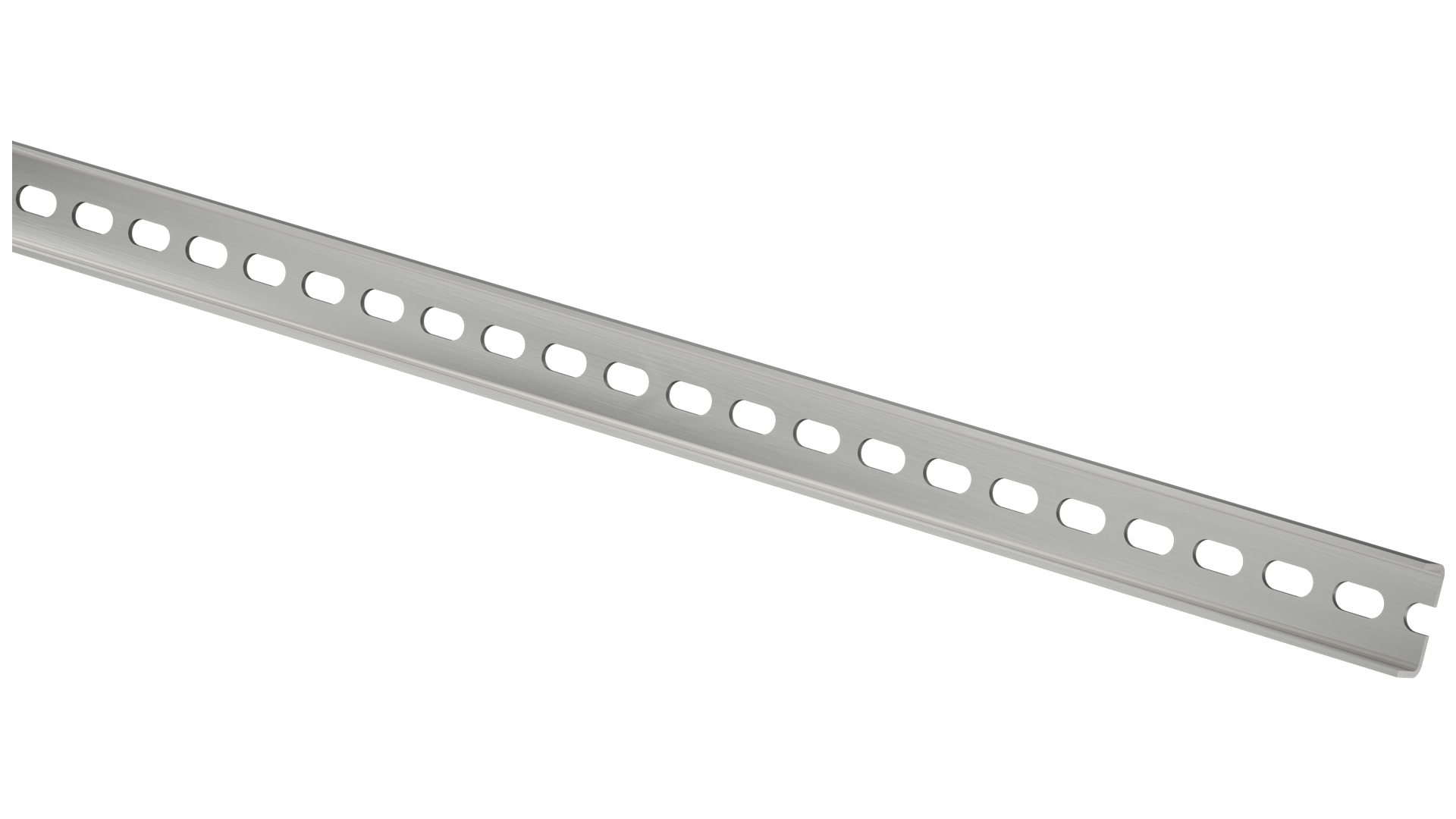

Pendant rail
