Cable tray – sealed, 3 m, 100 mm

E No:

MP-number: 320V

Unperforated cable tray. Painted trays are supplied with internally paint-free ends. Other lengths and colours quoted on request. Bracket distance is determined by the length of the rail. 2 m rail = C-C 2 m and 3 m rail C-C = 3 m. 6 m rail needs a suspension in the middle. These values apply at normal load.

All variants All variants

Product details

MP-number 320V
EAN 7394333100371
Length 3000 mm
Width 100 mm
Height 45 mm
Weight 4.83 kg
Climate impact 12.944 kgCO2e
Surface treatment Lacquered
Color NCS S 0500-N (white)
Corrosion class C2
Configuration Tight gutter

Documents

Environmental data varnished_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Length	Width	Corrosion class	Surface treatment	Color
310S	3000 mm	75 mm	C2	Pre-galvanized 20 µm		Select
320S	3000 mm	100 mm	C2	Pre-galvanized 20 µm		Select
330S	3000 mm	150 mm	C2	Pre-galvanized 20 µm		Select
340S	3000 mm	200 mm	C2	Pre-galvanized 20 µm		Select
350S	2000 mm	300 mm	C2	Pre-galvanized 20 µm		Select
360S	2000 mm	400 mm	C2	Pre-galvanized 20 µm		Select
370S	2000 mm	500 mm	C2	Pre-galvanized 20 µm		Select
380S	2000 mm	600 mm	C2	Pre-galvanized 20 µm		Select
390S	3000 mm	50 mm	C2	Pre-galvanized 20 µm		Select
310V	3000 mm	75 mm	C2	Lacquered	NCS S 0500-N (white)	Select
320V	3000 mm	100 mm	C2	Lacquered	NCS S 0500-N (white)	Selected
330V	3000 mm	150 mm	C2	Lacquered	NCS S 0500-N (white)	Select
340V	3000 mm	200 mm	C2	Lacquered	NCS S 0500-N (white)	Select
350V	2000 mm	300 mm	C2	Lacquered	NCS S 0500-N (white)	Select
360V	2000 mm	400 mm	C2	Lacquered	NCS S 0500-N (white)	Select
370V	2000 mm	500 mm	C2	Lacquered	NCS S 0500-N (white)	Select
380V	2000 mm	600 mm	C2	Lacquered	NCS S 0500-N (white)	Select
390V	3000 mm	50 mm	C2	Lacquered	NCS S 0500-N (white)	Select
320SV	3000 mm	100 mm	C2	Lacquered	RAL 9005 (black)	Select
340SV	3000 mm	200 mm	C2	Lacquered	RAL 9005 (black)	Select
350SV	2000 mm	300 mm	C2	Lacquered	RAL 9005 (black)	Select
360SV	2000 mm	400 mm	C2	Lacquered	RAL 9005 (black)	Select
380SV	2000 mm	600 mm	C2	Lacquered	RAL 9005 (black)	Select

Variants

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

310S

3000 mm

75 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

320S

3000 mm

100 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

330S

3000 mm

150 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

340S

3000 mm

200 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

350S

2000 mm

300 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

360S

2000 mm

400 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

370S

2000 mm

500 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

380S

2000 mm

600 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

390S

3000 mm

50 mm

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

310V

3000 mm

75 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

320V

3000 mm

100 mm

Lacquered

NCS S 0500-N (white)

Selected

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

330V

3000 mm

150 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

340V

3000 mm

200 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

350V

2000 mm

300 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

360V

2000 mm

400 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

370V

2000 mm

500 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

380V

2000 mm

600 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

390V

3000 mm

50 mm

Lacquered

NCS S 0500-N (white)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

320SV

3000 mm

100 mm

Lacquered

RAL 9005 (black)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

340SV

3000 mm

200 mm

Lacquered

RAL 9005 (black)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

350SV

2000 mm

300 mm

Lacquered

RAL 9005 (black)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

360SV

2000 mm

400 mm

Lacquered

RAL 9005 (black)

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

Color

380SV

2000 mm

600 mm

Lacquered

RAL 9005 (black)

Select

Relaterade produkter

Luminaire bracket, 100 mm

E No:

MP-number: 622V

Supporting tray joint – centre or side suspension, 100 mm

E No:

MP-number: 324S

Beam hook wide tray/rail, 100 mm

E No:

MP-number: 526S

Decorative joint

E No:

MP-number: 325V

Touch-up paint, 25 ml

E No:

MP-number: 951V

Spray paint

E No:

MP-number: 948V

Fixing plate perforated, 180x175 mm

E No:

MP-number: 953V

Fixing plate perforated, 180x130 mm

E No:

MP-number: 955V

Internal support bracket, 100-200 mm

E No:

MP-number: 942V

L-branch tray, 100 mm

E No:

MP-number: 427V

Cover, 3 m, 100 mm

E No:

MP-number: 420V

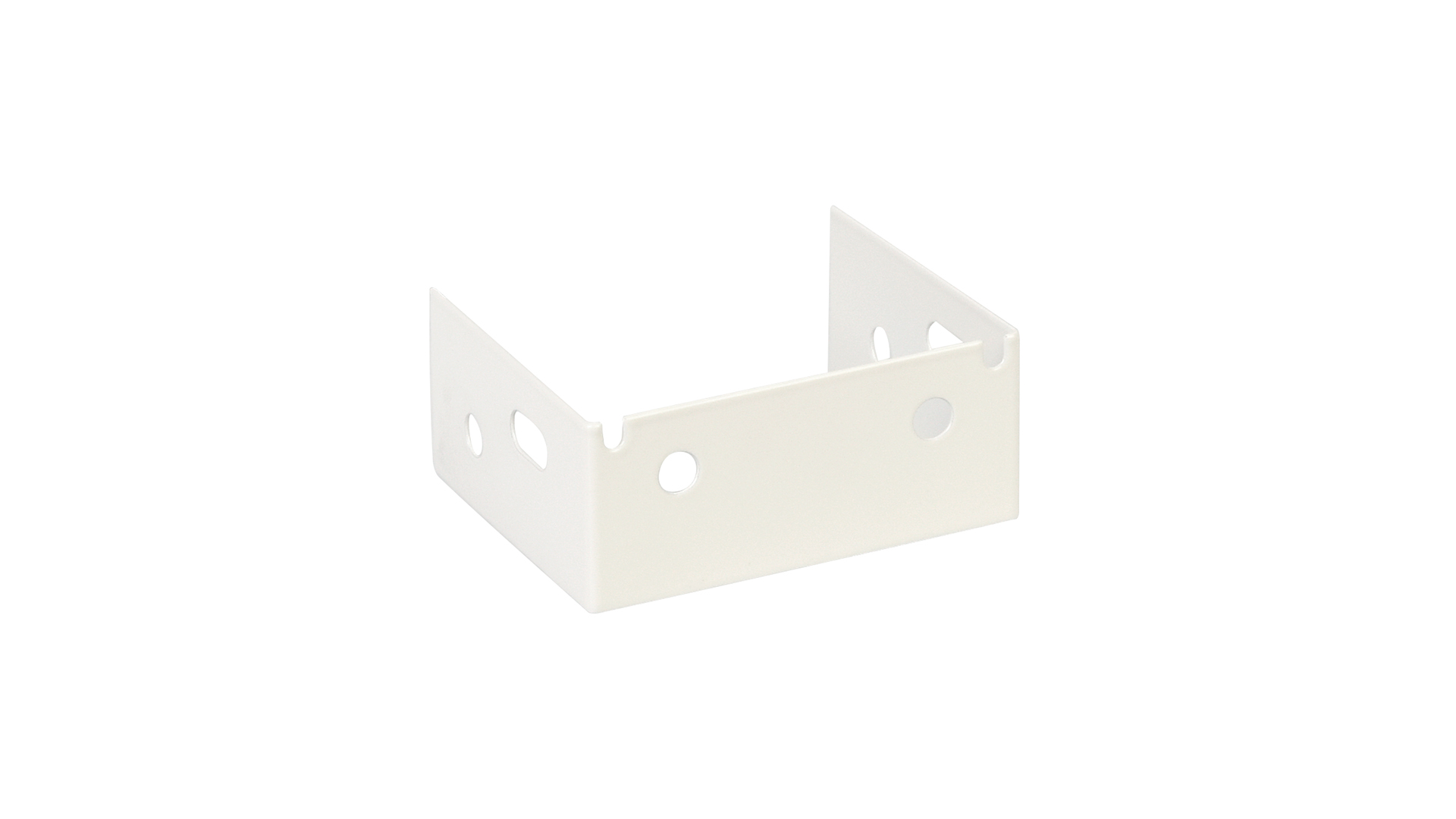

Seam support, 100 mm

E No:

MP-number: 627S

Level joint, 100 mm

E No:

MP-number: 328V

Splice partition plate, 25 mm, 1750 mm

E No:

MP-number: 127S

Splice partition plate, 25 mm, 2750 mm

E No:

MP-number: 137S

Adjustable bend, 100 mm

E No:

MP-number: 423V

Roof bracket, 100 mm

E No:

MP-number: 523V

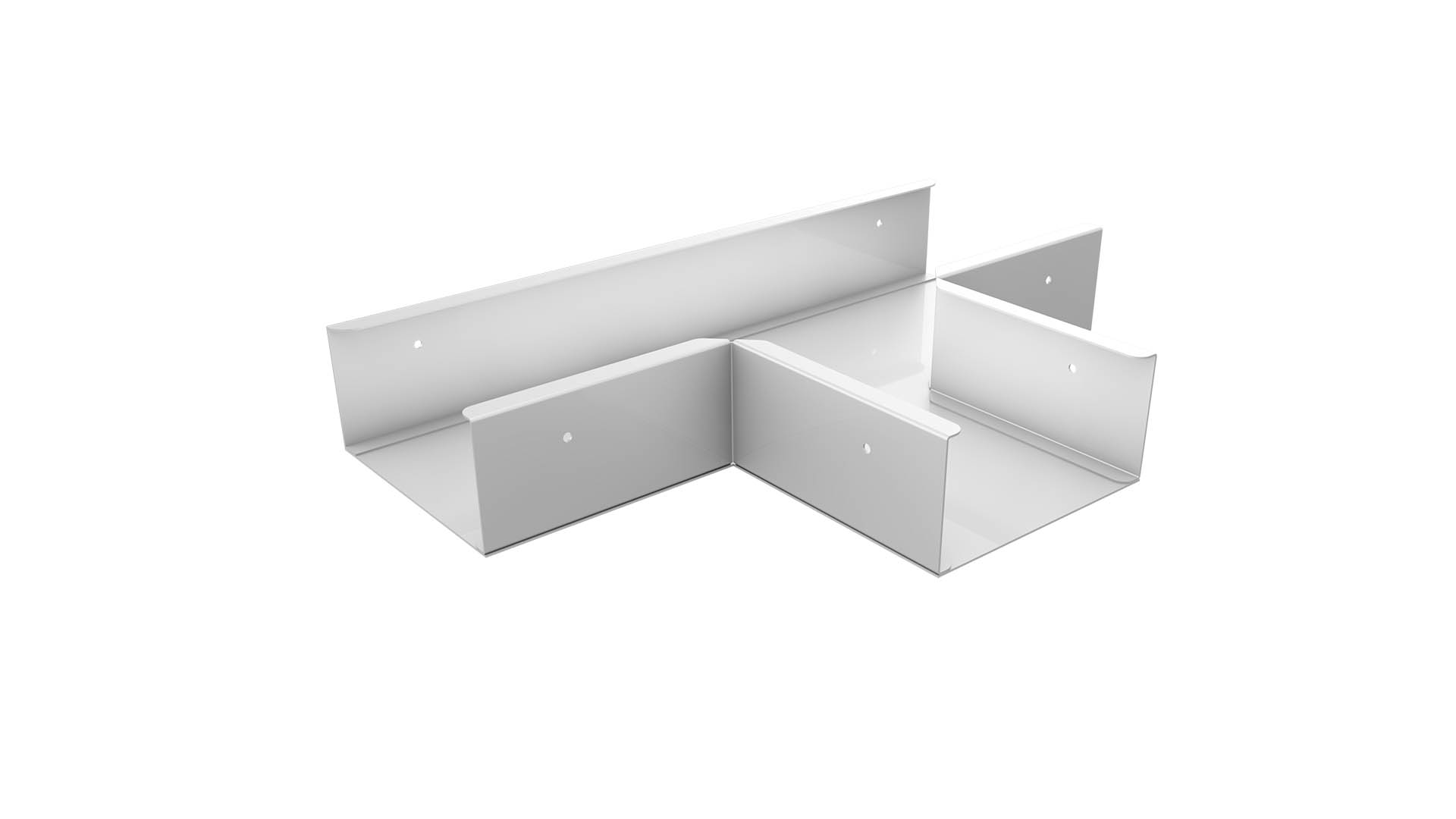

T-branch tray, 100 mm

E No:

MP-number: 428V

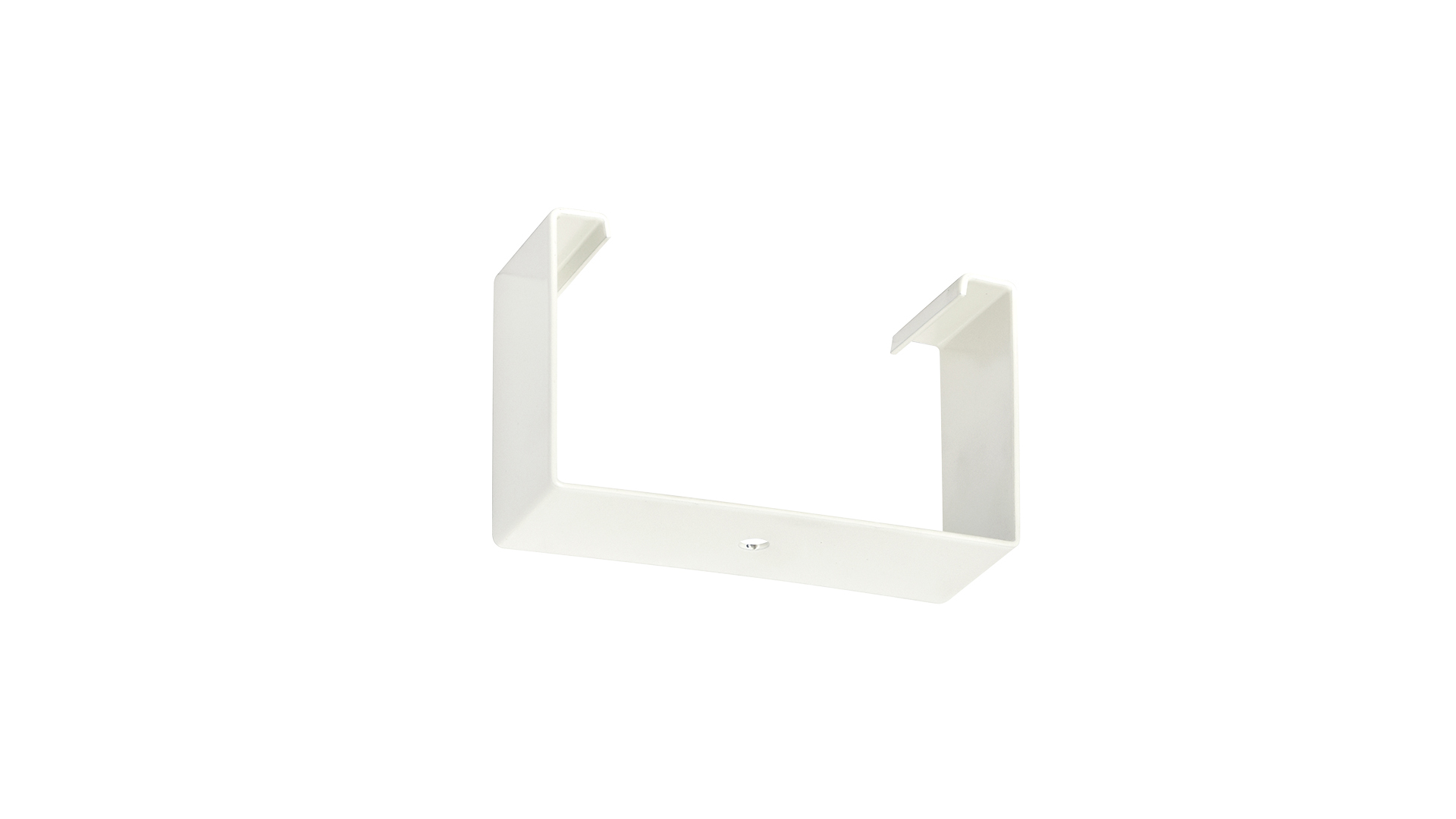

Suspension bracket, height 45 mm

E No:

MP-number: 625V

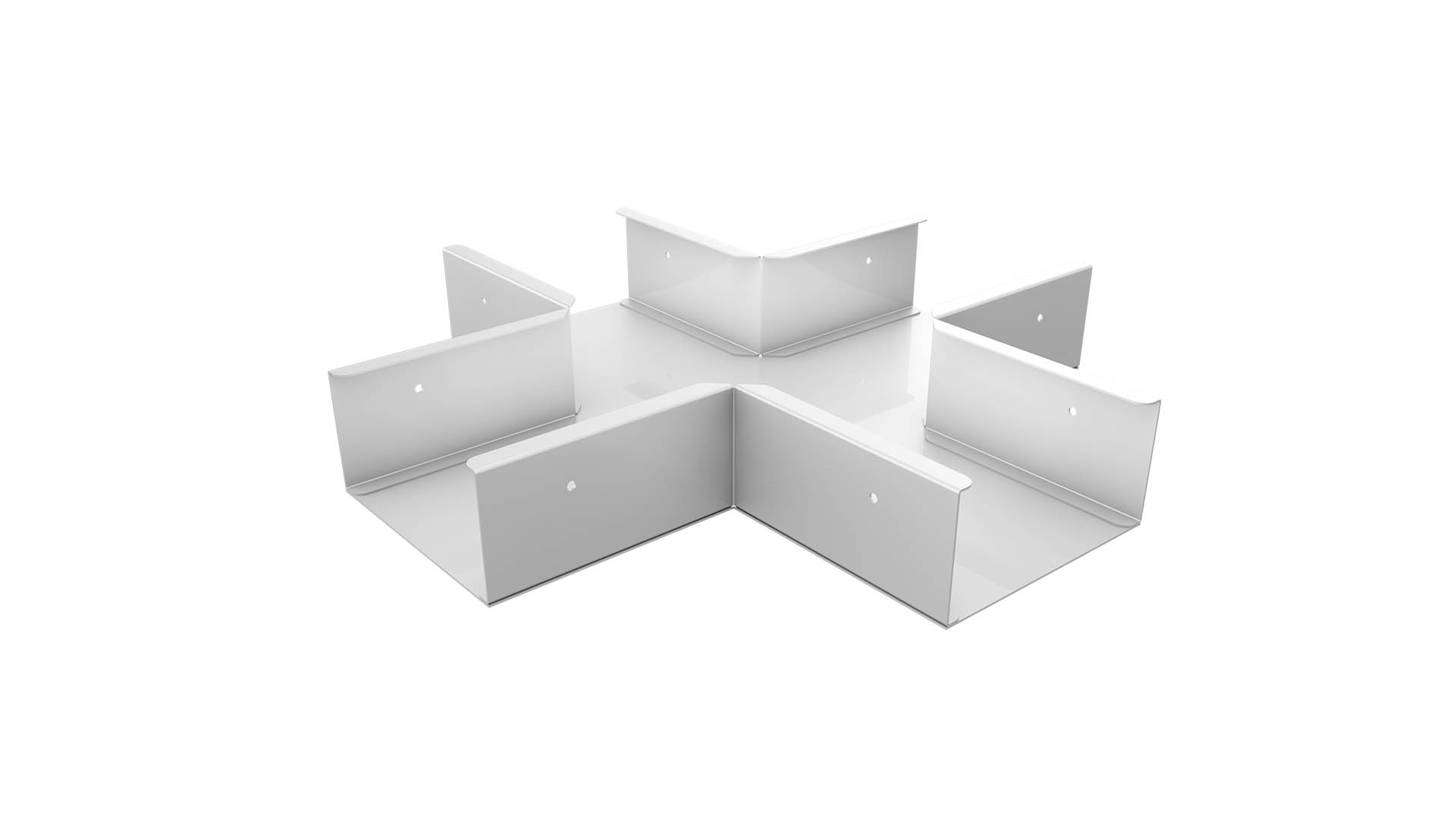

X-branch tray, 100 mm
