End hook, 150 mm

C2

E No:

|

MP-number: 539S

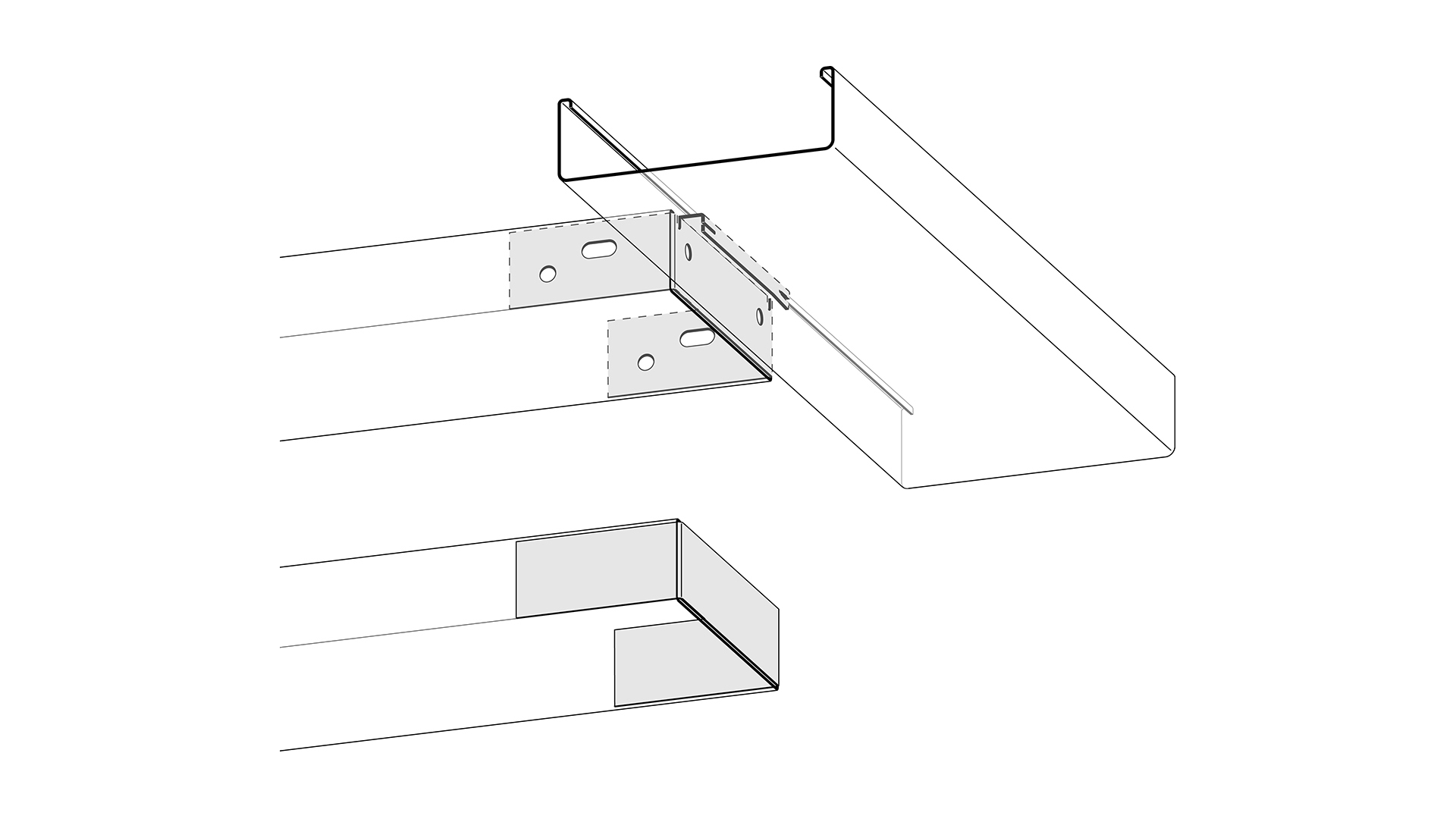

The end hook has locking tabs that prevent the connecting tray from loosening or tipping. To prevent the end hook from sliding longitudinally, close the hook section with a pair of pliers or the like.

All variants All variants

Product details

MP-number 539S
EAN 7394333130347
Length 147 mm
Width 90 mm
Height 41 mm
Weight 0.11 kg
Climate impact 0.323 kgCO2e
Surface treatment Pre-galvanized 20 µm
Corrosion class C2
Suitable for Cable trays

Documents

Environmental data galvanized S_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

	MP-number	E No	Length	Width	Height	Surface treatment	Corrosion class	Suitable for
	519S		72 mm	90 mm	41 mm	Pre-galvanized 20 µm	C2	Cable trays	Select
	529S		97 mm	90 mm	41 mm	Pre-galvanized 20 µm	C2	Cable trays	Select
	539S		147 mm	90 mm	41 mm	Pre-galvanized 20 µm	C2	Cable trays	Selected
	549S		200 mm	90 mm	40 mm	Pre-galvanized 20 µm	C2	Cable trays	Select
	559S		297 mm	90 mm	41 mm	Pre-galvanized 20 µm	C2	Cable trays	Select
	569S		397 mm	90 mm	41 mm	Pre-galvanized 20 µm	C2	Cable trays	Select
	579S		497 mm	90 mm	41 mm	Pre-galvanized 20 µm	C2	Cable trays	Select
	589S		597 mm	90 mm	41 mm	Pre-galvanized 20 µm	C2	Cable trays	Select
	599S		90 mm	45 mm	42 mm	Pre-galvanized 20 µm	C2	Cable trays	Select

Variants

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

519S

72 mm

90 mm

41 mm

Pre-galvanized 20 µm

C2

Cable trays

Select

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

529S

97 mm

90 mm

41 mm

Pre-galvanized 20 µm

C2

Cable trays

Select

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

539S

147 mm

90 mm

41 mm

Pre-galvanized 20 µm

C2

Cable trays

Selected

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

549S

200 mm

90 mm

40 mm

Pre-galvanized 20 µm

C2

Cable trays

Select

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

559S

297 mm

90 mm

41 mm

Pre-galvanized 20 µm

C2

Cable trays

Select

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

569S

397 mm

90 mm

41 mm

Pre-galvanized 20 µm

C2

Cable trays

Select

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

579S

497 mm

90 mm

41 mm

Pre-galvanized 20 µm

C2

Cable trays

Select

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

589S

597 mm

90 mm

41 mm

Pre-galvanized 20 µm

C2

Cable trays

Select

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

599S

90 mm

45 mm

42 mm

Pre-galvanized 20 µm

C2

Cable trays

Select
