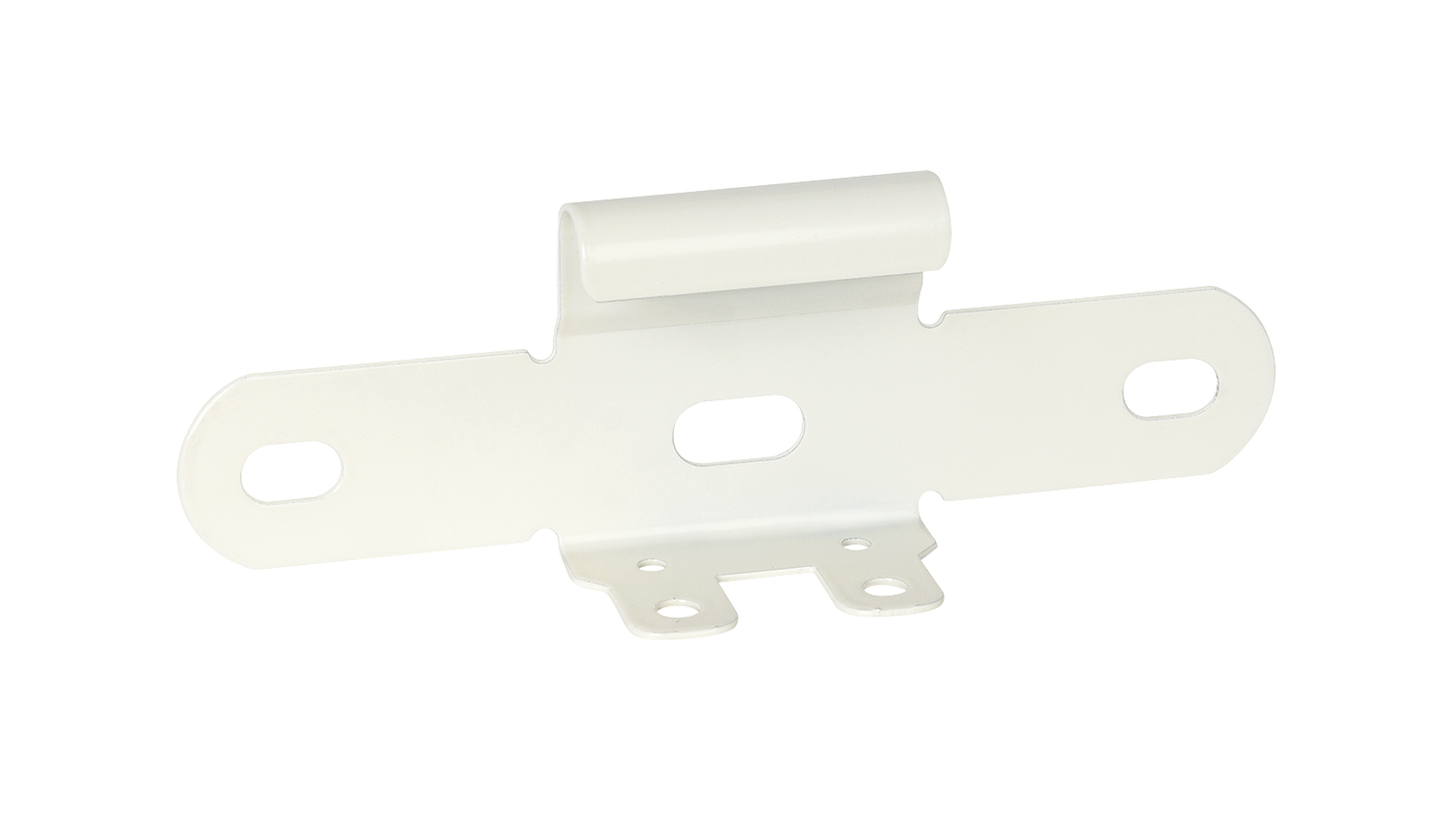

Universal joint

C4

E No:

|

MP-number: 114Z

Universal link for splicing cable ladders (not reinforced). Can be used as a level link, a connection to another ladder or to make a T-branch. The universal link is made of hot-dip galvanised sheet (55 µm) and is suitable for environmental class max C4. Fixing can be done easily by folding up the tongues around the side of the rungs, or with bolt set M8x16. Meets requirements for equipotential bonding according to SS-EN 61537:2007.
All variants

Product details

  • MP-number 114Z
  • EAN 7394333013893
  • Length 167 mm
  • Width 35 mm
  • Height 59 mm
  • Weight 0.09 kg
  • Climate impact 0.283 kgCO2e
  • Surface treatment Hot-dip galvanized 55 µm
  • Corrosion class C4
  • Mounting External
  • Suitable for Cable ladders

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Color

Surface treatment

Corrosion class

Mounting

114S

Pre-galvanized 20 µm

C2

External

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Mounting

114V

NCS S 0500-N (white)

Lacquered

C2

External

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Mounting

114Z

Hot-dip galvanized 55 µm

C4

External

Selected

MP-number

E No

Color

Surface treatment

Corrosion class

Mounting

114Z4

Z4

C4

External

Select
