Cable ladder MP-LS, 3 m, 200 mm

C2

E No:

|

MP-number: 102LS

Cableladder made of thinner material for indoor installations. The weight is 30% lighter, offering advantages both during installation and for the environment. The cable ladders are manufactured in pre-galvanized (20 µm) steel sheet and are suitable for environmental class C2. The perforated side allows for the installation of branches, angle brackets, etc. Additionally, the profile shape enables cables up to 19 mm in diameter to utilize over 98% of the width of the tray. The rungs are perforated (except for one closed in each end) and have a center-to-center distance of 250 mm. Breaking load: greater than or equal to 1.7 times the maximum load.

All variants All variants

Product details

MP-number 102LS
EAN 7394333000626
Length 3000 mm
Width 200 mm
Height 56 mm
Weight 3.64 kg
Material thickness ladder side 0.7 mm
Climate impact 9.792 kgCO2e
Surface treatment Pre-galvanized 20 µm
Corrosion class C2
Cable ladder properties Perforated rungs
Model MP-LS

Documents

Environmental data galvanized S_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

	MP-number	E No	Length	Width	Corrosion class	Surface treatment
	102LS		3000 mm	200 mm	C2	Pre-galvanized 20 µm	Selected
	103LS		3000 mm	300 mm	C2	Pre-galvanized 20 µm	Select
	104LS		3000 mm	400 mm	C2	Pre-galvanized 20 µm	Select
	105LS		3000 mm	500 mm	C2	Pre-galvanized 20 µm	Select
	106LS		3000 mm	600 mm	C2	Pre-galvanized 20 µm	Select
	102LS6		6000 mm	200 mm	C2	Pre-galvanized 20 µm	Select
	103LS6		6000 mm	300 mm	C2	Pre-galvanized 20 µm	Select
	104LS6		6000 mm	400 mm	C2	Pre-galvanized 20 µm	Select
	105LS6		6000 mm	500 mm	C2	Pre-galvanized 20 µm	Select
	106LS6		6000 mm	600 mm	C2	Pre-galvanized 20 µm	Select

Variants

MP-number

E No

Length

Width

Corrosion class

Surface treatment

102LS

3000 mm

200 mm

C2

Pre-galvanized 20 µm

Selected

MP-number

E No

Length

Width

Corrosion class

Surface treatment

103LS

3000 mm

300 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

104LS

3000 mm

400 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

105LS

3000 mm

500 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

106LS

3000 mm

600 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

102LS6

6000 mm

200 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

103LS6

6000 mm

300 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

104LS6

6000 mm

400 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

105LS6

6000 mm

500 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Width

Corrosion class

Surface treatment

106LS6

6000 mm

600 mm

C2

Pre-galvanized 20 µm

Select

Relaterade produkter

C2

Wall bracket, light, 200 mm

E No:

MP-number: 753S

C2

Fixing plate, unperforated, 180x175 mm

E No:

MP-number: 110S

End cap ladder

E No:

MP-number: 169P

C1

Potential connection screw, 10 pcs, 7, 5xM8x16 mm

E No:

MP-number: 939E

C4

Luminaire bracket

E No:

MP-number: 119Z4

C2

Beam hook cable ladder – exterior, 200 mm

E No:

MP-number: 162S2

C2

Interior beam hook ladder, 200 mm

E No:

MP-number: 157S

C2

Fixing plate 12x Keystone, 180x175 mm

E No:

MP-number: 110SK

C2

Fixing plate 12x Lexcom/Actassi, 180x175 mm

E No:

MP-number: 110SL

C2

Fixing plate, perforated, 180x175 mm

E No:

MP-number: 112S

C2

Fixing plate with box IP65, 180x175 mm

E No:

MP-number: 112SD

C2

Fixing plate with socket IP21, 180x175 mm

E No:

MP-number: 112SF

C2

Fixing plate with socket IP55, 180x175 mm

E No:

MP-number: 112SG

C2

Internal support bracket, 100-200 mm

E No:

MP-number: 942S

C2

L-branch ladder, 200 mm

E No:

MP-number: 122S

C2

Cover, 3 m, 200 mm

E No:

MP-number: 440S

C2

Interior splice MP-S

E No:

MP-number: 108S

C2

Step splice

E No:

MP-number: 107S

C2

Splice partition plate, 25 mm, 2750 mm

E No:

MP-number: 137S

C2

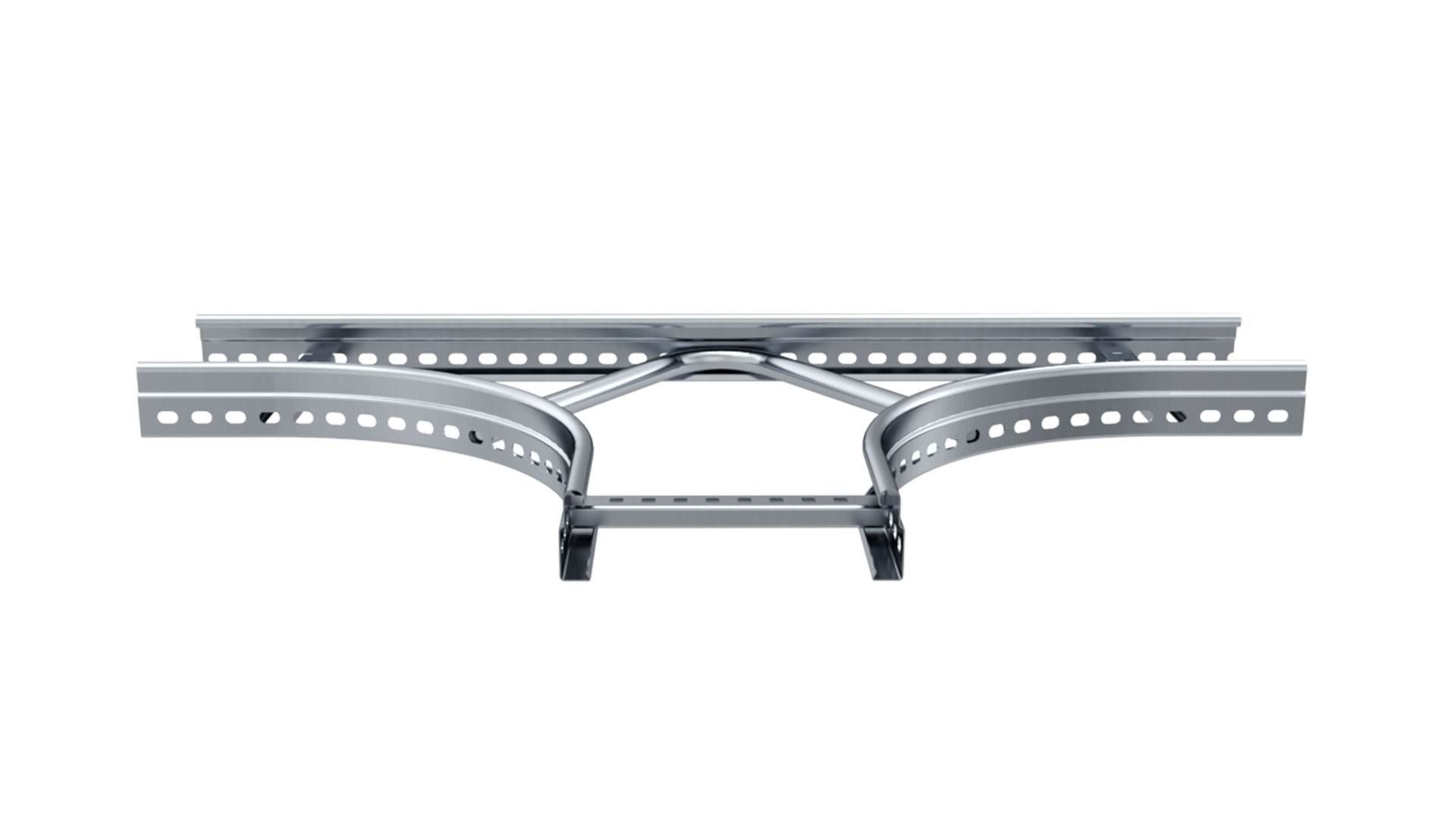

T-branch ladder, 200 mm

E No:

MP-number: 132S

C2

Trench unperforated, 3 m, 50 mm

E No:

MP-number: 128S

C2

Trench perforated, 3 m, 50 mm

E No:

MP-number: 138S

C2

Universal joint

E No:

MP-number: 114S

C4

Wall bracket, 200 mm

E No:

MP-number: 172Z2

C2

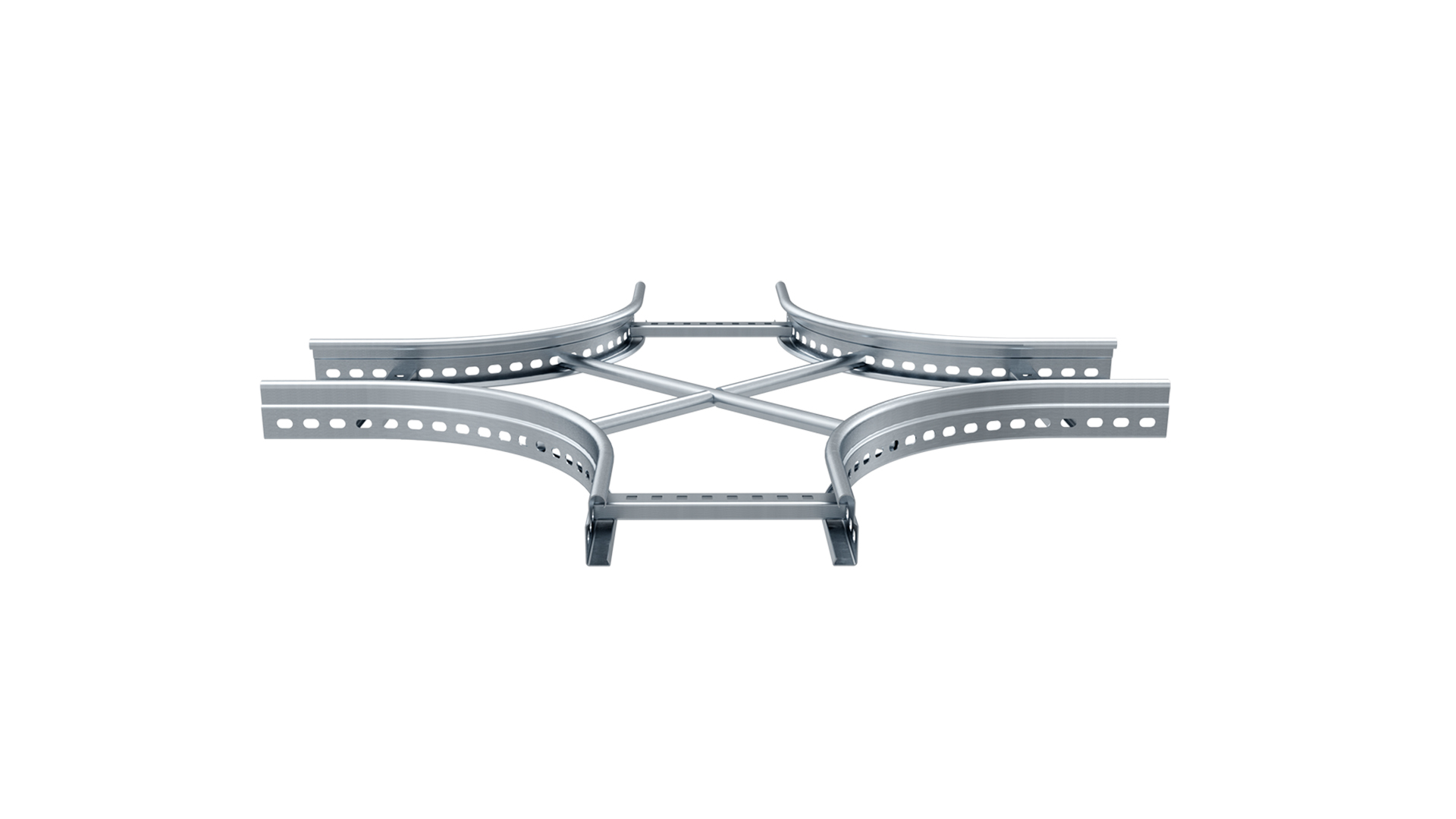

X-branch ladder, 200 mm
