Universal joint

C2

E No:

|

MP-number: 114S

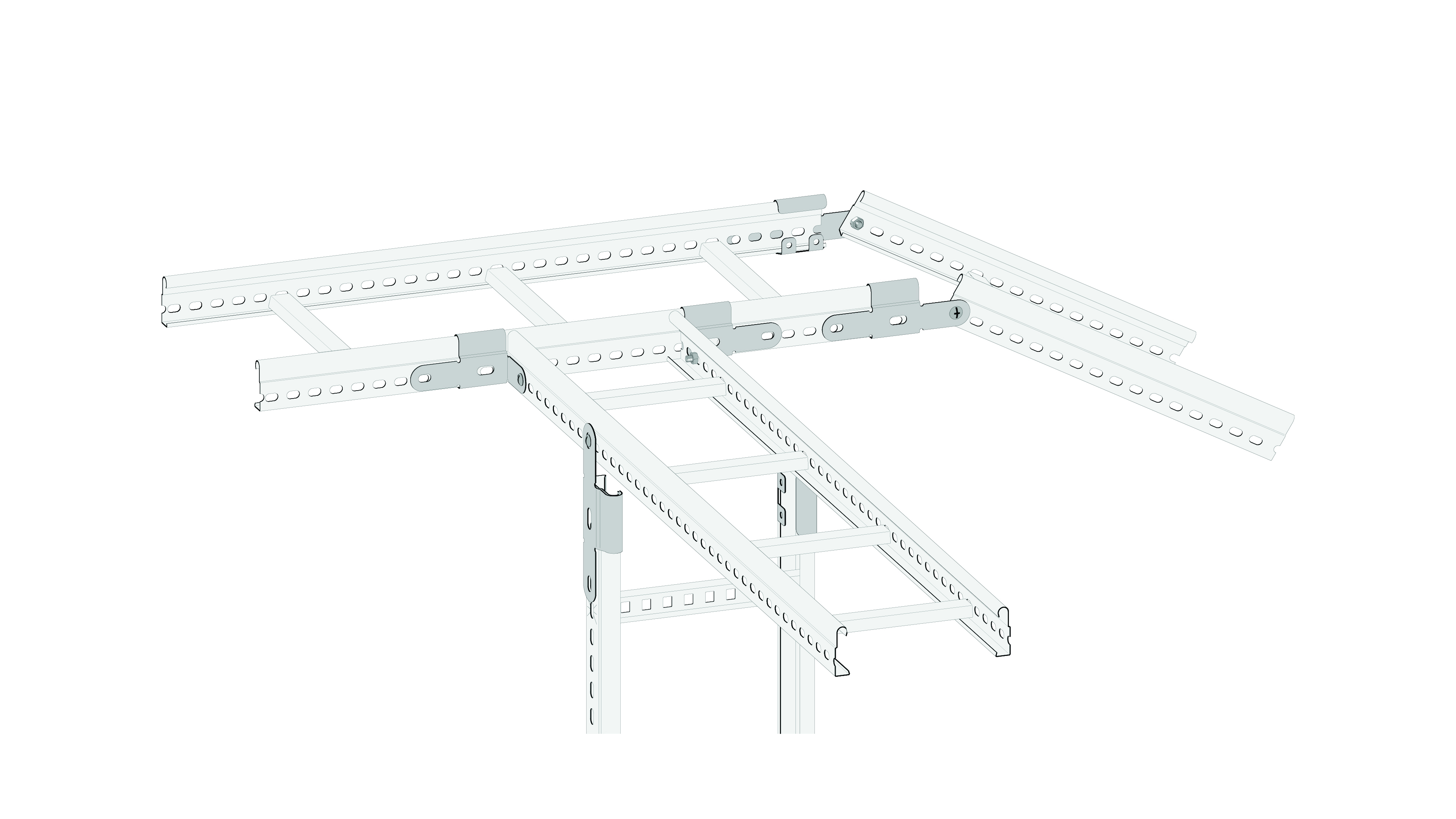

Universal link for splicing cable ladders (not reinforced). Can be used as a level link, a connection to another ladder or to make a T-branch. The universal link is made of Sendzimir galvanised sheet (20 µm) and is suitable for environmental class max C2. Fixing can be done easily by folding up the tongues around the side of the rungs, or with bolt set M8x16. Meets requirements for equipotential bonding according to SS-EN 61537:2007.
All variants

Product details

  • MP-number 114S
  • EAN 7394333013763
  • Length 167 mm
  • Width 35 mm
  • Height 59 mm
  • Weight 0.08 kg
  • Climate impact 0.242 kgCO2e
  • Surface treatment Pre-galvanized 20 µm
  • Corrosion class C2
  • Mounting External
  • Suitable for Cable ladders

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Color

Surface treatment

Corrosion class

Mounting

114S

Pre-galvanized 20 µm

C2

External

Selected

MP-number

E No

Color

Surface treatment

Corrosion class

Mounting

114V

NCS S 0500-N (white)

Lacquered

C2

External

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Mounting

114Z

Hot-dip galvanized 55 µm

C4

External

Select

MP-number

E No

Color

Surface treatment

Corrosion class

Mounting

114Z4

Z4

C4

External

Select
