Seam support, 100 mm

C2

E No:

|

MP-number: 627S

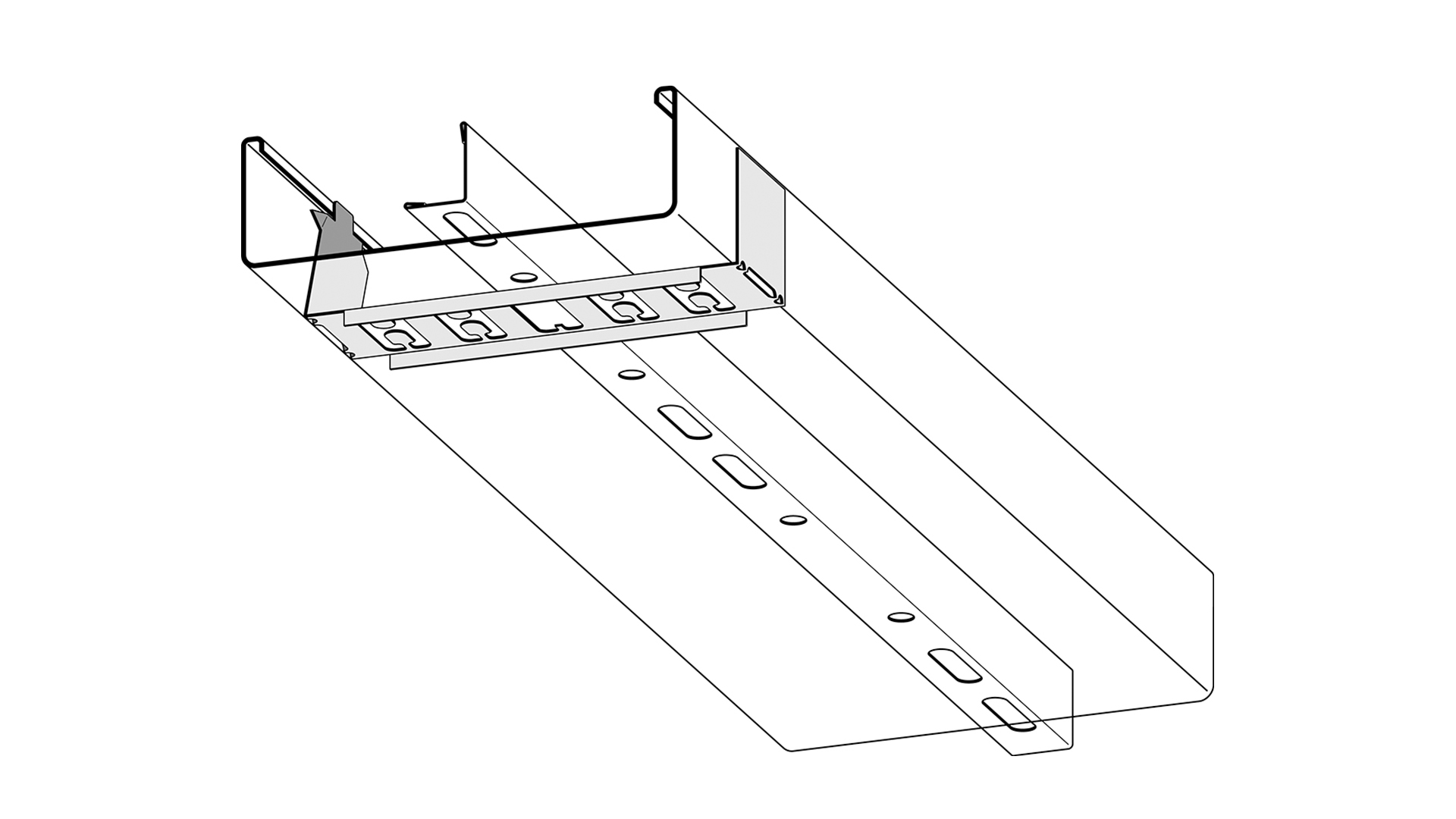

Designed for stripping cable and/or fastening dividers, the support snaps onto the tray. 2 Tie supports per tray are used when installing the Divider. Trunking widths available in increments of 25 mm.

All variants All variants

Product details

MP-number 627S
EAN 7394333139821
Length 92 mm
Width 42 mm
Height 5 mm
Weight 0.03 kg
Climate impact per unit 0.108 kgCO2e
Surface treatment Sendzimir galvanized 20 µm
Corrosion class C2
Fits (width) 100 mm
Suitable for Cable trays

Documents

Environmental data galvanized S_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

	MP-number	E No	Length	Width	Height	Fits (width)	Surface treatment	Corrosion class	Suitable for
	627S		92 mm	42 mm	5 mm	100 mm	Sendzimir galvanized 20 µm	C2	Cable trays	Selected
	637S		142 mm	42 mm	5 mm	150 mm	Sendzimir galvanized 20 µm	C2	Cable trays	Select
	647S		192 mm	42 mm	5 mm	200 mm	Sendzimir galvanized 20 µm	C2	Cable trays	Select
	657S		292 mm	42 mm	5 mm	300 mm	Sendzimir galvanized 20 µm	C2	Cable trays	Select
	667S		392 mm	42 mm	5 mm	400 mm	Sendzimir galvanized 20 µm	C2	Cable trays	Select
	677S		492 mm	42 mm	5 mm	500 mm	Sendzimir galvanized 20 µm	C2	Cable trays	Select
	687S		592 mm	42 mm	5 mm	600 mm	Sendzimir galvanized 20 µm	C2	Cable trays	Select
