Beam hook wide tray/rail, 100 mm

E No:

MP-number: 526S

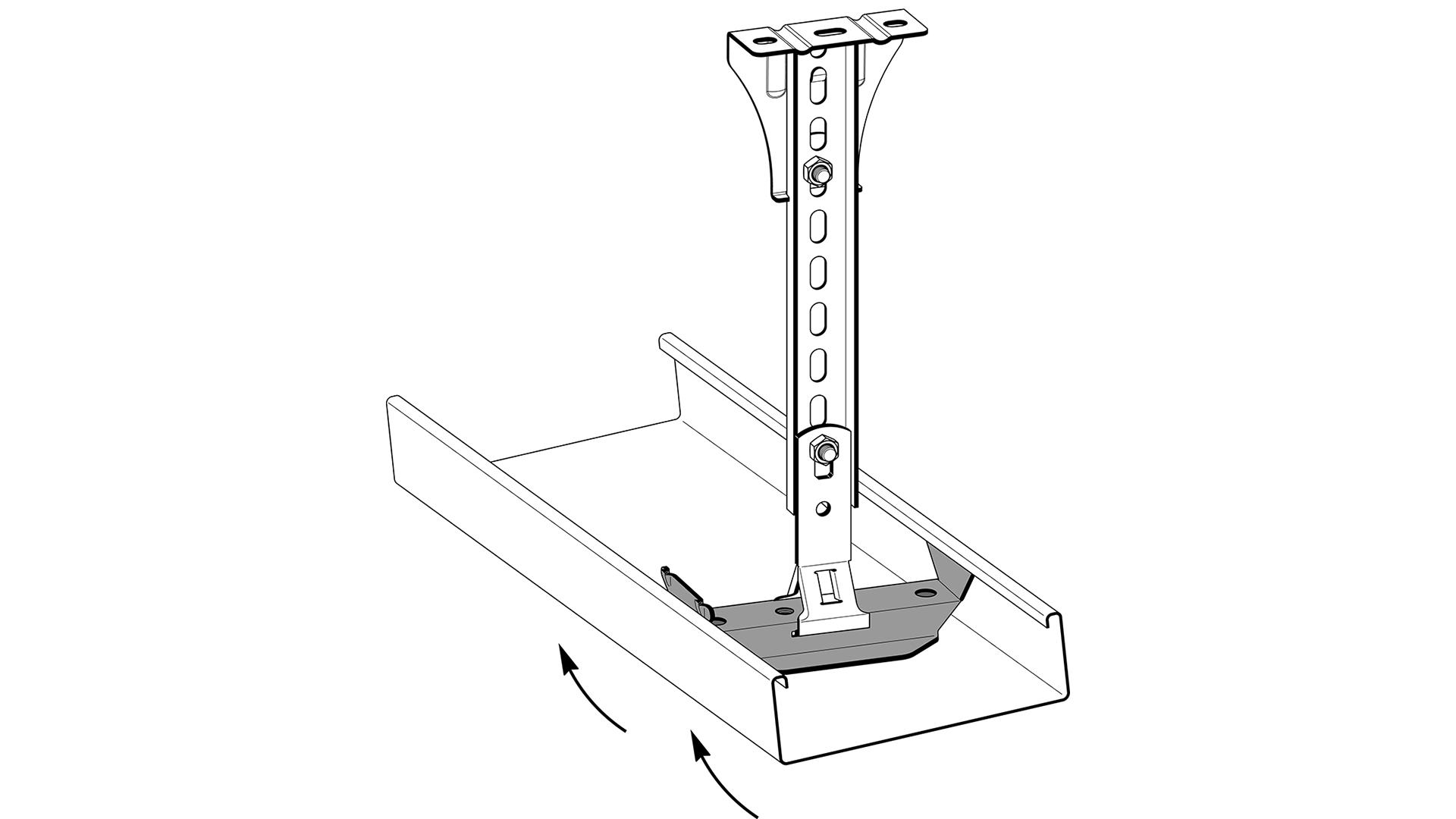

Support yoke for cable trays and luminaire rails. The support yoke is made of Sendzimir galvanised sheet (20 µm) and is suitable for environmental class max C2. The support yoke can be pushed in from the side or hung on one edge of the tray and snapped under the other. Can be used both for centrally suspended assembly together with pendant bracket and also for side assembly with internal cantilever arm. Maximum load for support yoke: 150 kg with evenly distributed load. Ultimate failure load: 1.7 times maximum load.

All variants All variants

Product details

MP-number 526S
EAN 7394333120645
Length 98 mm
Width 59 mm
Height 35 mm
Weight 0.12 kg
Climate impact 0.35 kgCO2e
Surface treatment Pre-galvanized 20 µm
Corrosion class C2
Mounting Internal
Fits (width) 100 mm
Suitable for Cable trays

Documents

Environmental data galvanized S_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

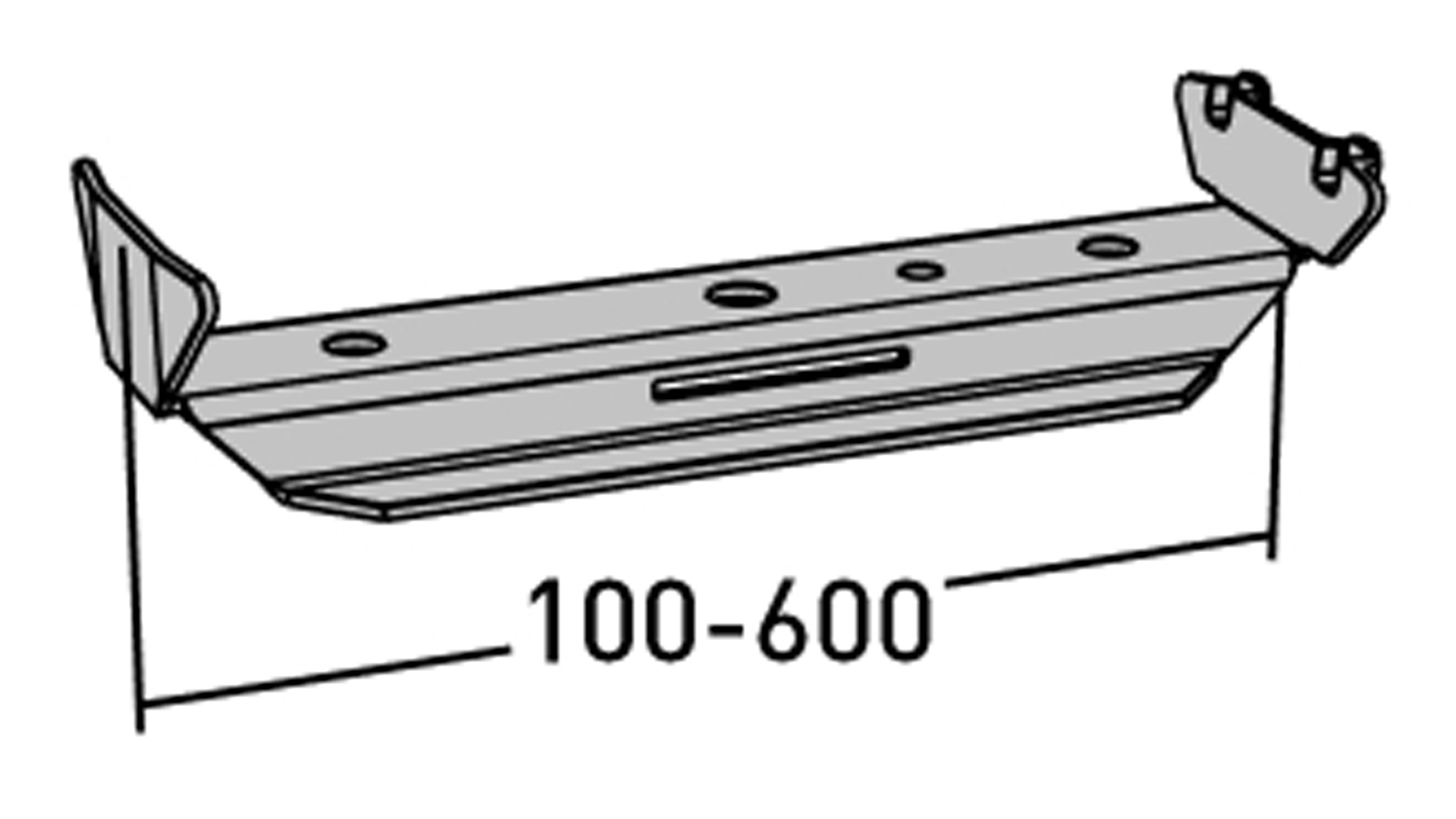

Variants

MP-number	Surface treatment	Corrosion class	Fits (width)
526S	Pre-galvanized 20 µm	C2	100 mm	Selected
536S	Pre-galvanized 20 µm	C2	150 mm	Select
546S	Pre-galvanized 20 µm	C2	200 mm	Select
556S	Pre-galvanized 20 µm	C2	300 mm	Select
566S	Pre-galvanized 20 µm	C2	400 mm	Select
576S	Pre-galvanized 20 µm	C2	500 mm	Select
586S	Pre-galvanized 20 µm	C2	600 mm	Select
