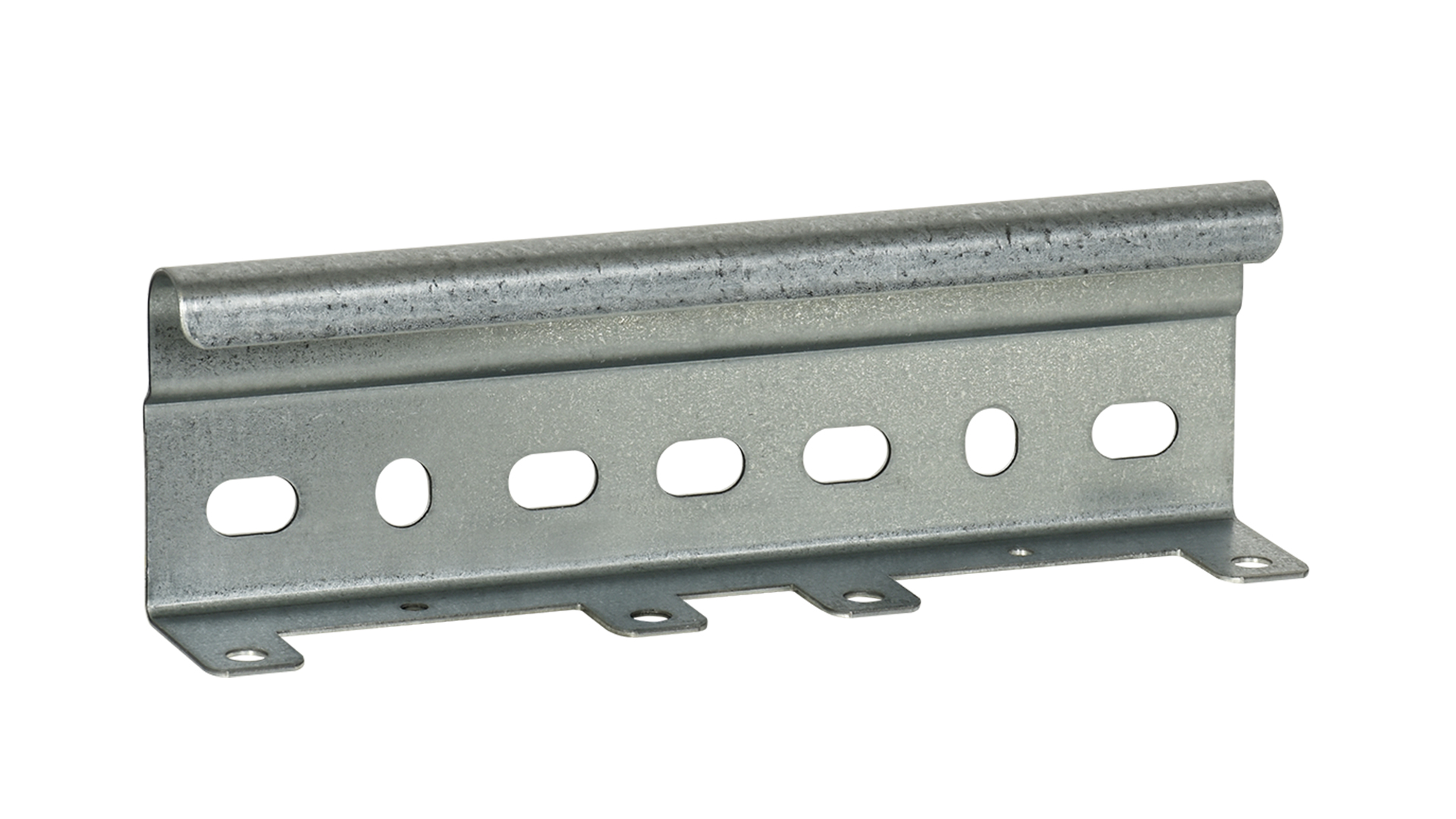

Step splice

E No:

MP-number: 107S

External ladder splice for splicing cable ladders (not reinforced). The splice is made of Sendzimir galvanised sheet (20 µm) and is suitable for environmental class max C2. Fixing can be done easily by folding up the tongues around the side of the rungs, or with bolt set M8x16. Meets requirements for equipotential bonding according to SS-EN 61537:2007.

All variants All variants

Product details

MP-number 107S
EAN 7394333012957
Length 185 mm
Width 35 mm
Height 60 mm
Weight 0.19 kg
Climate impact 0.511 kgCO2e
Surface treatment Pre-galvanized 20 µm
Corrosion class C2
Mounting External
Suitable for Cable ladders

Documents

Environmental data galvanized S_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Color	Surface treatment	Corrosion class	Mounting
107S		Pre-galvanized 20 µm	C2	External	Selected
107V	NCS S 0500-N (white)	Lacquered	C2	External	Select
107Z		Hot-dip galvanized 55 µm	C4	External	Select
107Z4		Z4	C4	External	Select
