Wire ladder light, 75 mm

C2

E No:

|

MP-number: 720S3

Wire mesh tray in a "light" version with thinner wires. The diameter of the wires is 4 mm. The ladder is made of pre-galvanised steel and is suitable for environmental class max C1. The ladders are treated before welding so they may feel a little sooty around the welds but this will heal over time. All accessories intended for wire mesh trays also fit the "light" version. Meets the requirements for lightweight cable ladders according to EL-AMA. Can be ordered painted in any colour.
All variants

Product details

  • MP-number 720S3
  • EAN 7394333048789
  • Length 3000 mm
  • Width 75 mm
  • Height 58 mm
  • Weight 2.22 kg
  • Climate impact per unit 5.994 kgCO2e
  • Surface treatment Pre-galvanized
  • Corrosion clas C2
  • Wire diameter 4 mm

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion clas

719S3

4 mm

55 mm

Pre-galvanized

C2

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion clas

720S3

4 mm

75 mm

Pre-galvanized

C2

Selected

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion clas

722S3

4 mm

120 mm

Pre-galvanized

C2

Select

MP-number

E No

Wire diameter

Width

Surface treatment

Corrosion clas

723S3

4 mm

200 mm

Pre-galvanized

C2

Select

Relaterade produkter

C1

Screw pack - M8x16 mm - 50 pcs

E No:

MP-number: 937E

C1

Potential connection screw, 10 pcs, 7, 5xM8x16 mm

E No:

MP-number: 939E

C2

Beam hook for threaded rod, 55–75 mm

E No:

MP-number: 768S

C4

Beam hook, wire mesh tray, 55–75 mm

E No:

MP-number: 769Z4

C2

Angle bracket for wire mesh tray

E No:

MP-number: 737S

C2

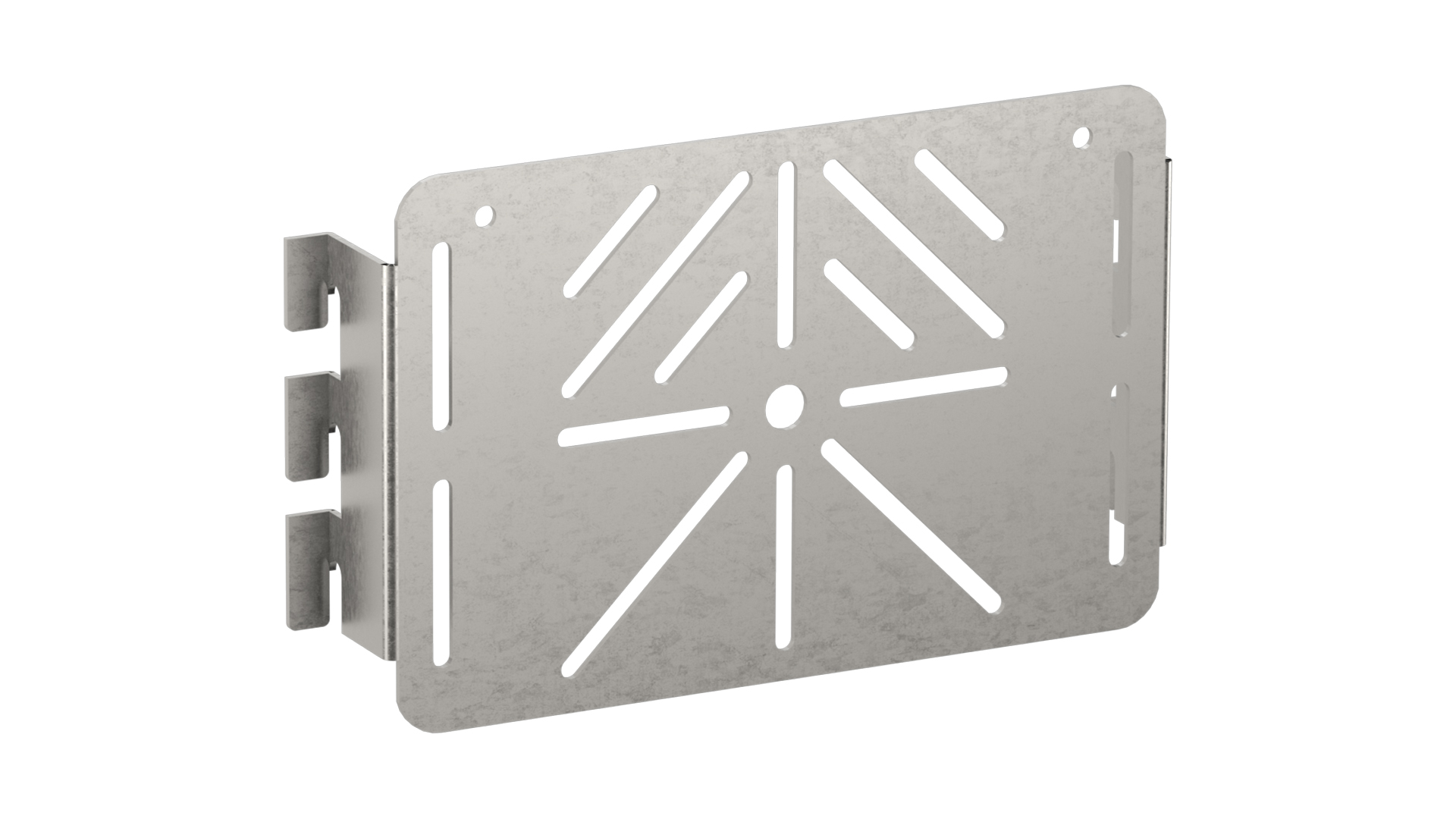

Fixing plate, perforated, 180x120 mm

E No:

MP-number: 739S

C2

Corner joint for wire ladder

E No:

MP-number: 732S

C2

Cover, 3 m, 75 mm

E No:

MP-number: 410S

N/A

Labelling plate, Coax, 10 pcs

E No:

MP-number: 780CO

N/A

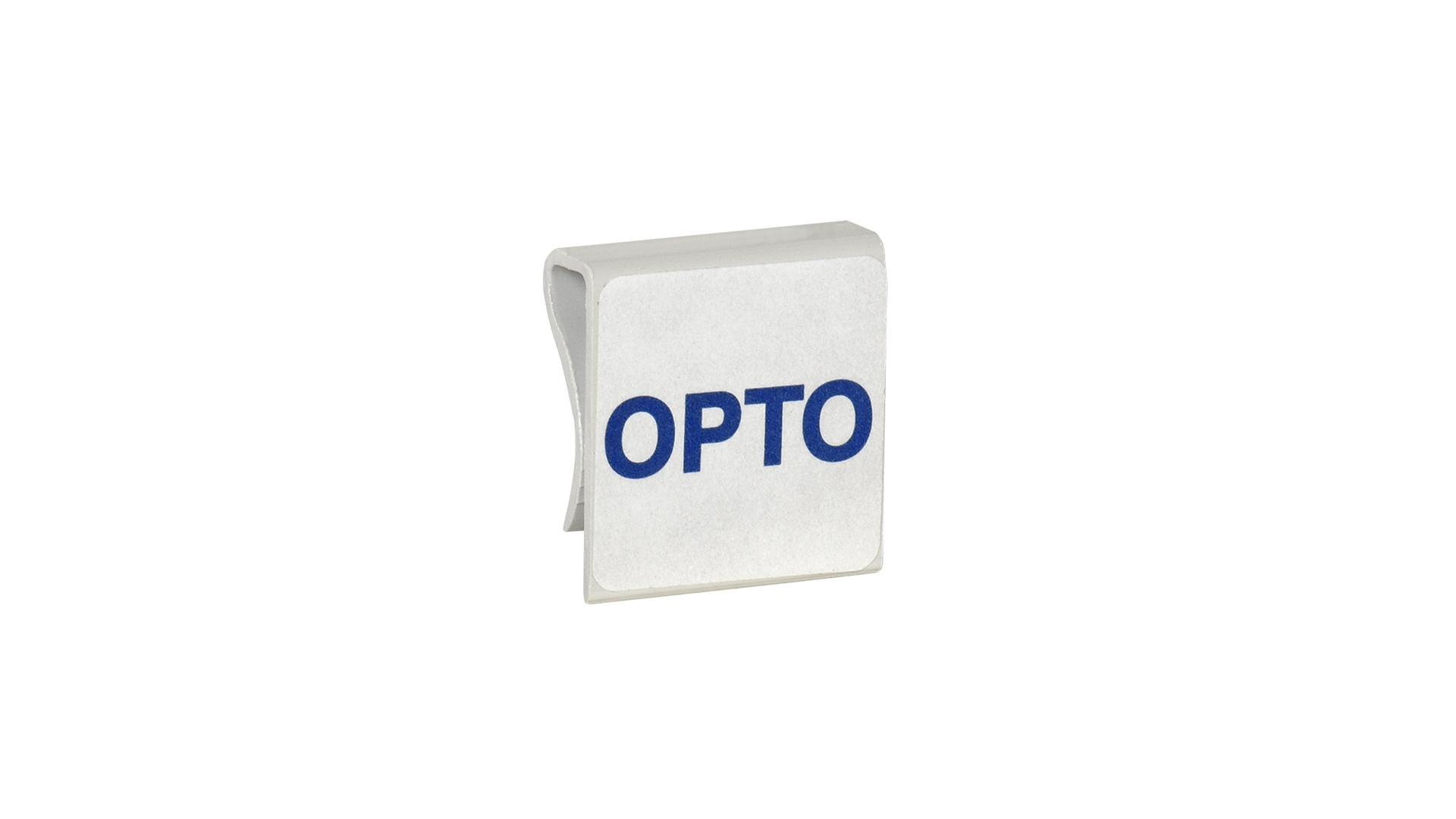

Labelling plate, Opto, 10 pcs

E No:

MP-number: 780OP

N/A

Labelling plate, Pair, 10 pcs

E No:

MP-number: 780PA

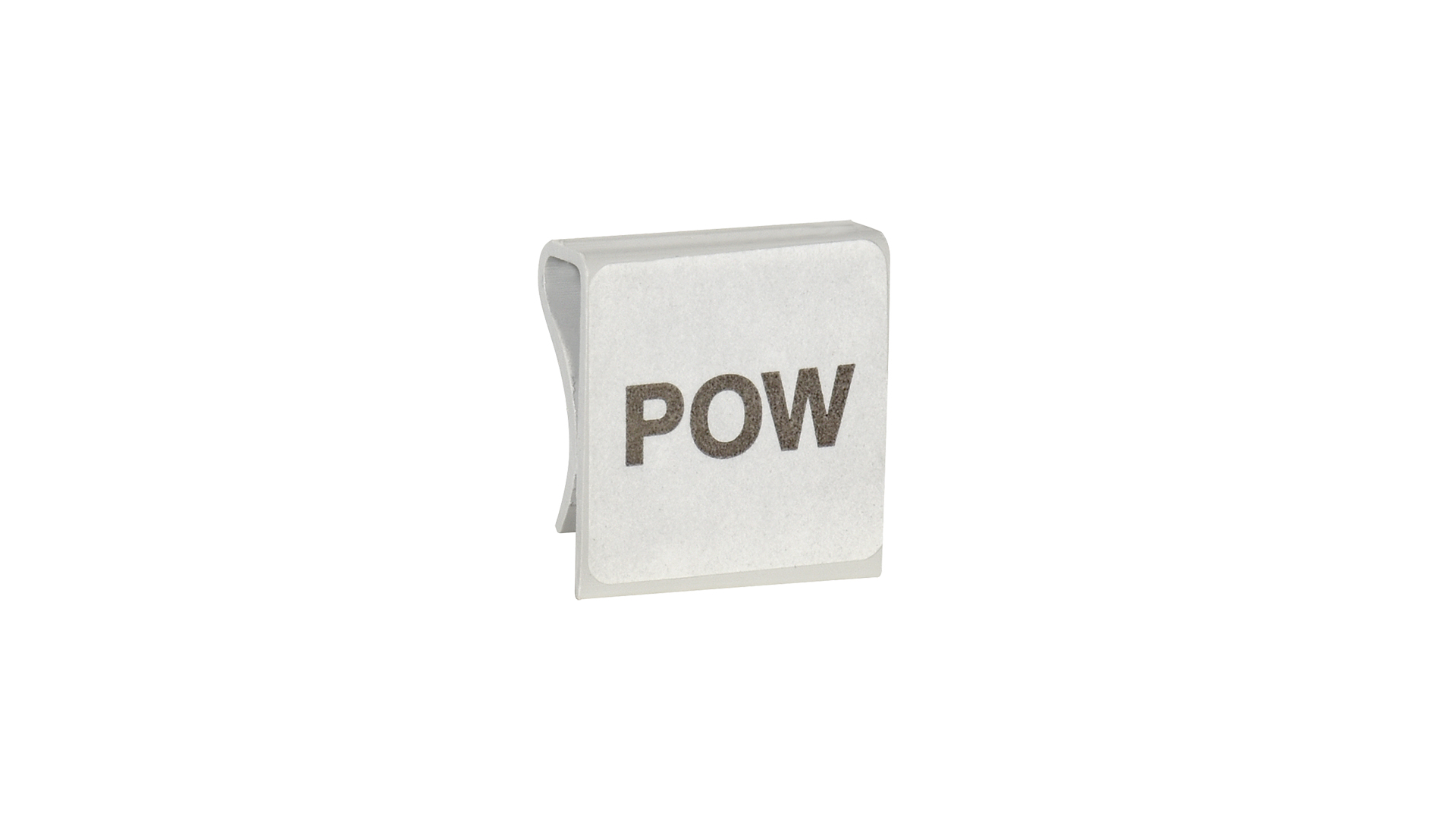

Labelling plate, Pow, 10 pcs

E No:

MP-number: 780PO

N/A

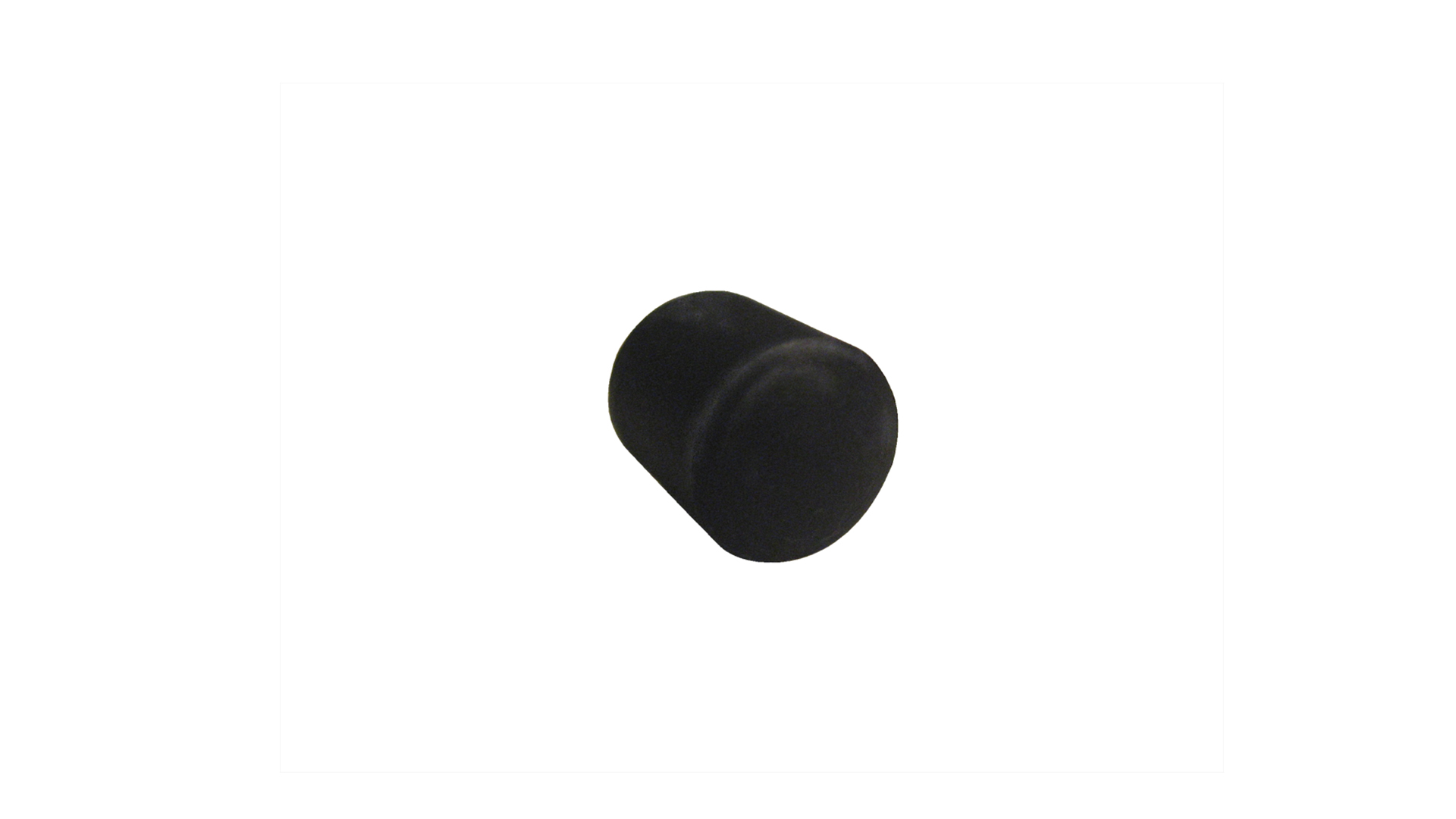

Plastic knob, 100 pcs, 4 mm

E No:

MP-number: 761P

C2

Splice for wire ladders

E No:

MP-number: 730S

C2

Splice partition plate, 25 mm, 2750 mm

E No:

MP-number: 137S

C2

Trench unperforated, 3 m, 50 mm

E No:

MP-number: 128S

C2

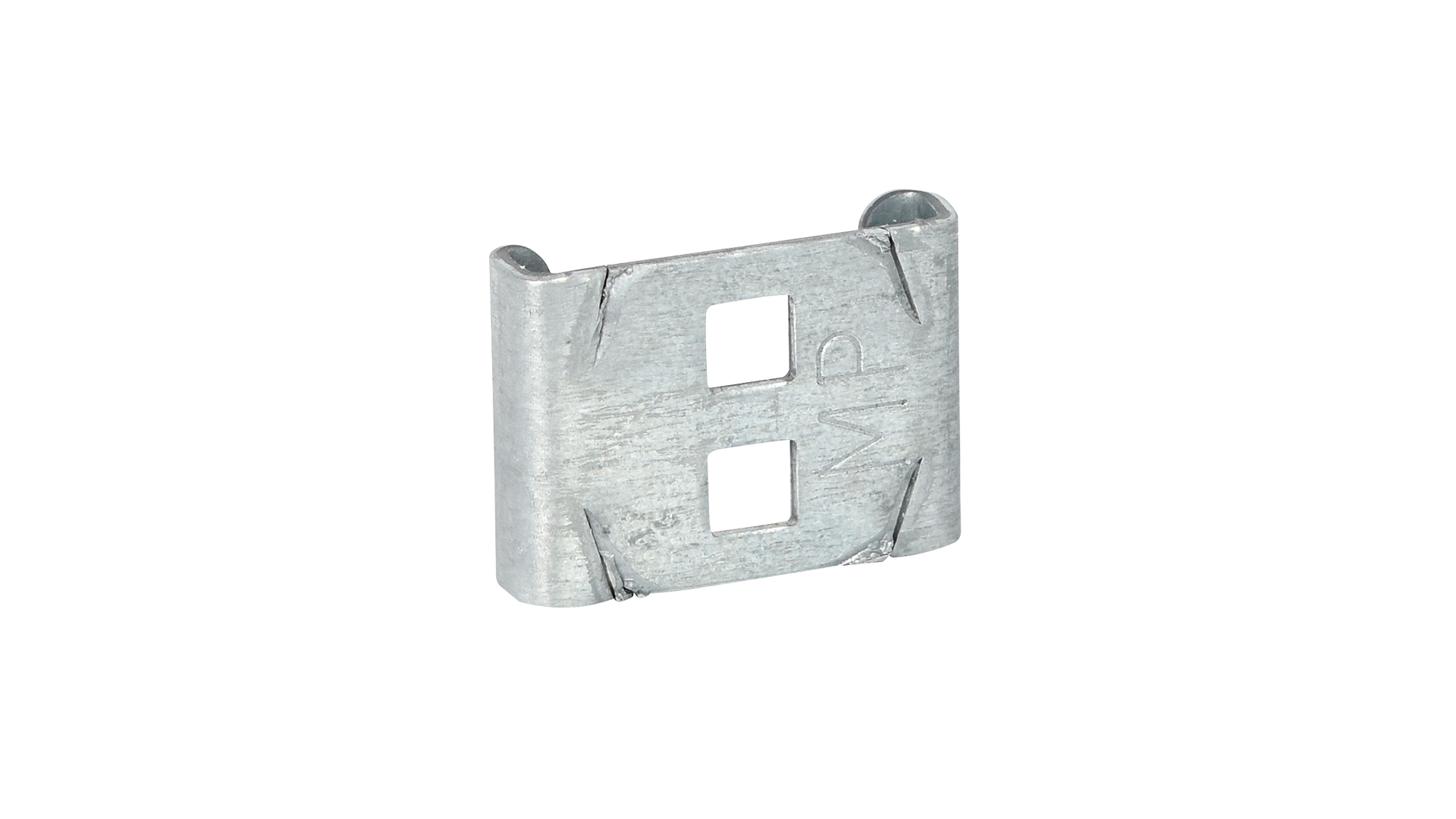

Universal washer

E No:

MP-number: 731S

Manual bolt cutter

E No:

MP-number: 790P

C2

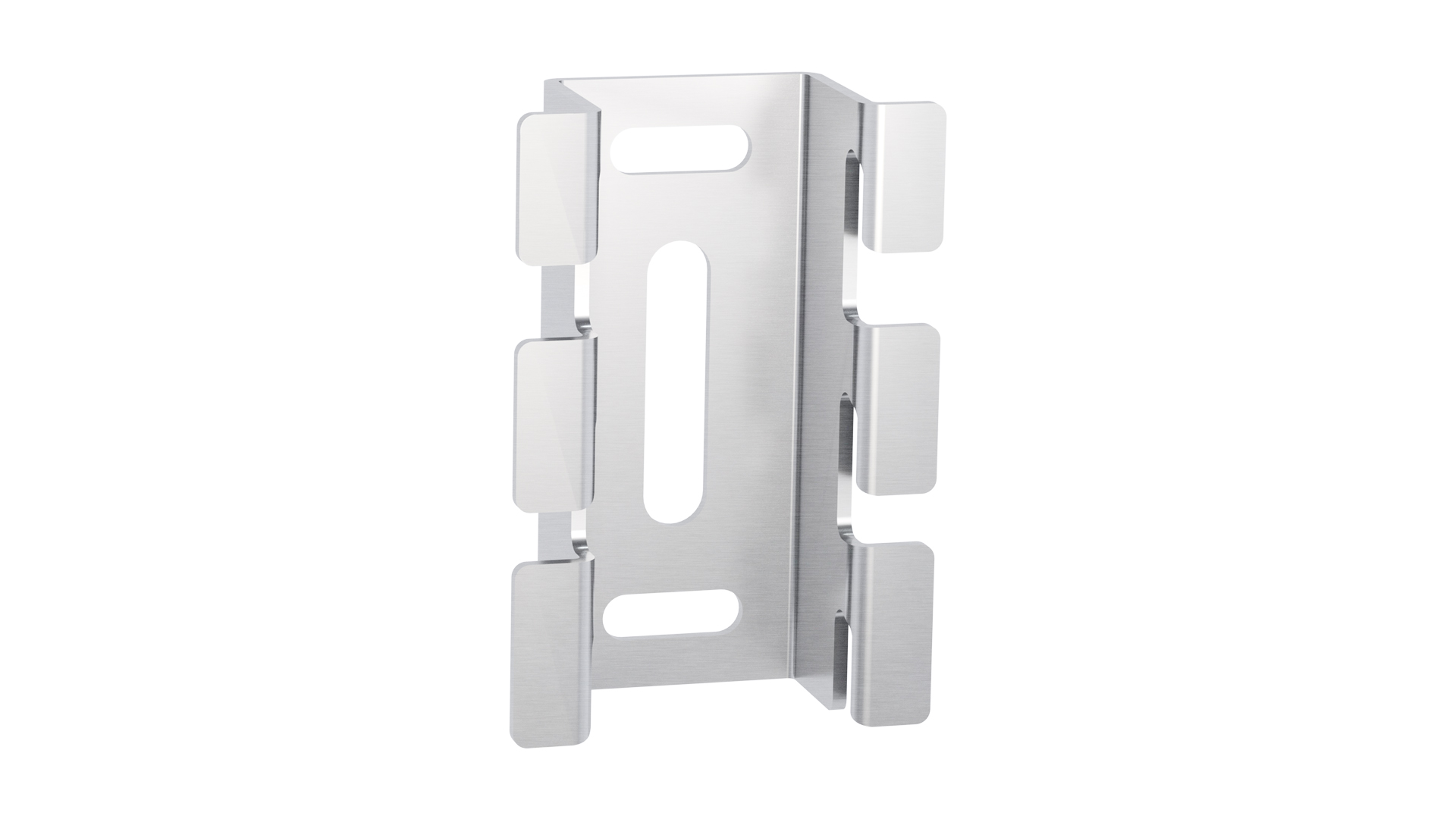

Wall bracket for wire mesh tray
