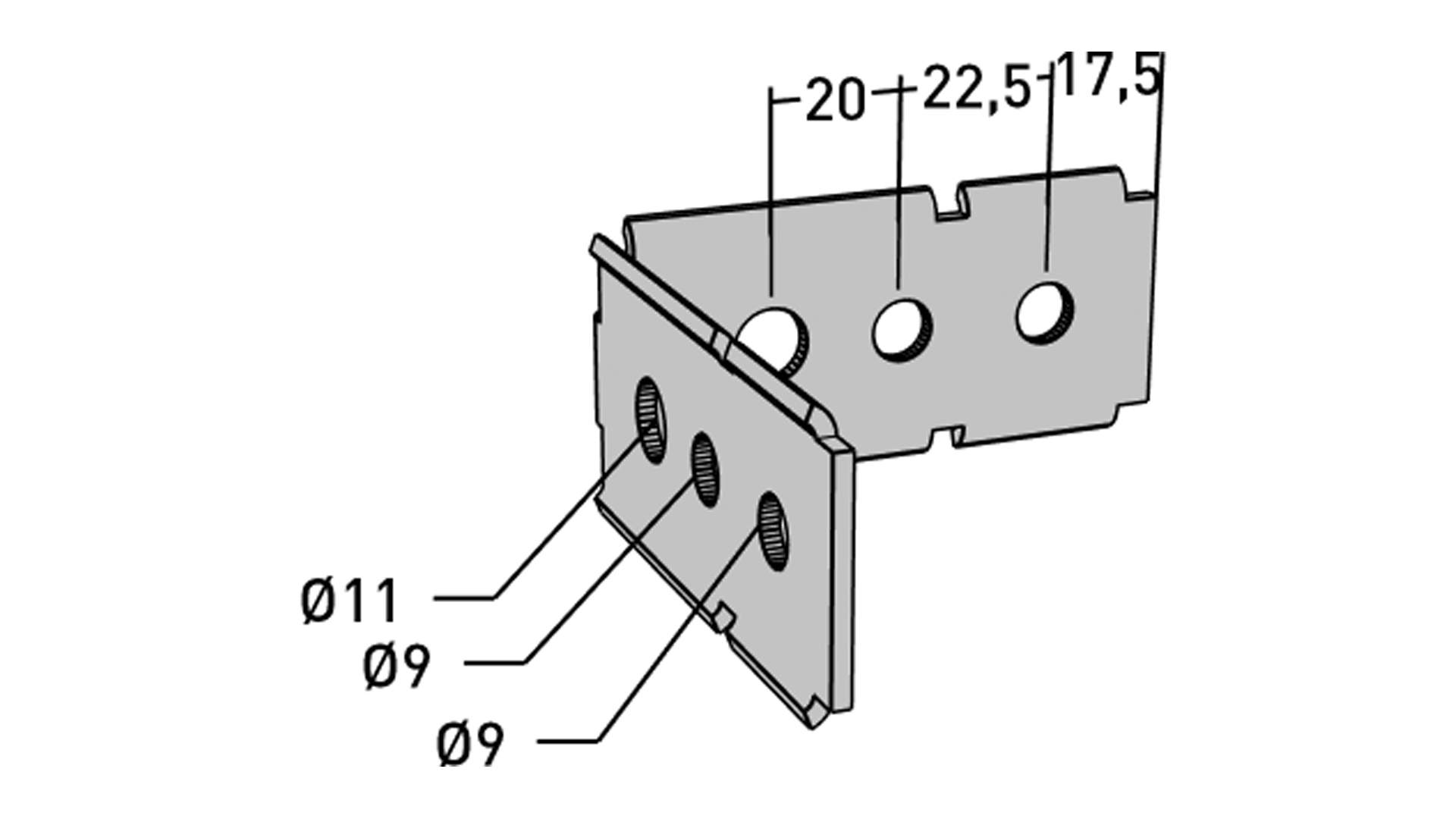

Angle bracket for wire mesh tray

E No:

MP-number: 737S

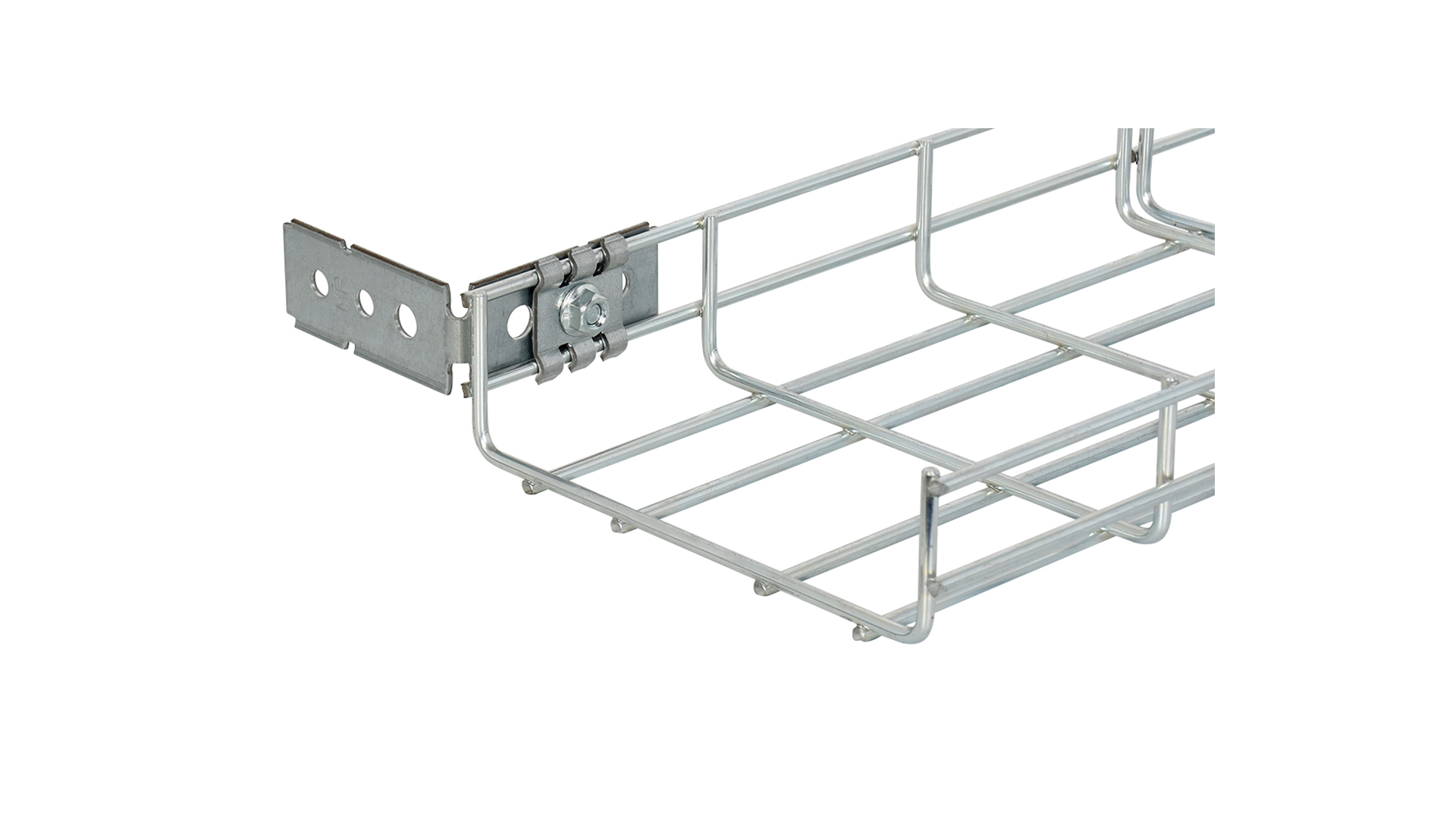

Angle bracket for wire mesh trays, used as an end bracket against a wall or other ladder. The bracket is made of Sendzimir galvanised steel (20 µm) and is suitable for environmental class max C2. Can also be used as a ceiling bracket for 55–120 mm wire mesh trays. The angle bracket is mounted with universal bracket MP-731S and bolt set MP-937E.

All variants All variants

Product details

MP-number 737S
EAN 7394333056340
Length 86 mm
Width 40 mm
Height 86 mm
Weight 0.11 kg
Climate impact 0.296 kgCO2e
Surface treatment Pre-galvanized 20 µm
Corrosion class C2
Suitable for Wire ladders

Documents

Environmental data galvanized S_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Length	Width	Height	Color	Surface treatment	Corrosion class	Suitable for
737S	86 mm	40 mm	86 mm		Pre-galvanized 20 µm	C2	Wire ladders	Selected
737V	86 mm	40 mm	86 mm	NCS S 0500-N (white)	Lacquered	C2	Wire ladders	Select
737R	86 mm	40 mm	86 mm		Stainless steel 316L	C5-M	Wire ladders	Select
737Z	86 mm	40 mm	86 mm		Hot-dip galvanized 55 µm	C4	Wire ladders	Select
