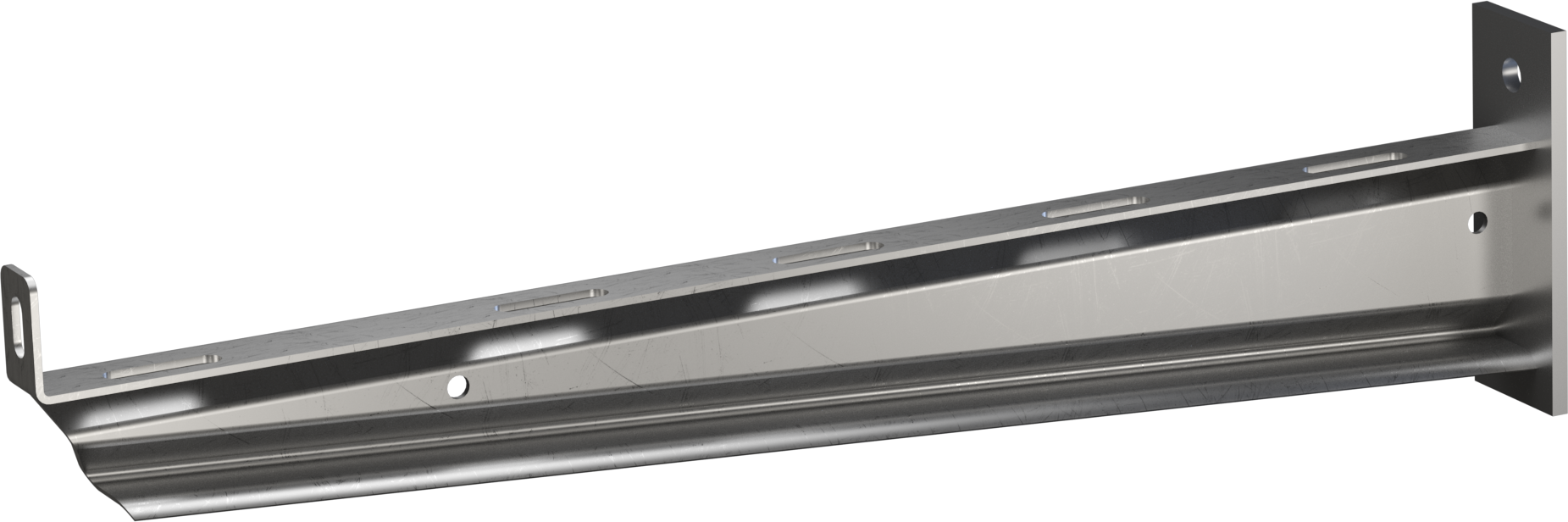

Wall bracket SF, 500 mm
E No: 1116327
|
MP-number: 185-48
Wall bracket for cable ladder where the ladders are fixed with bracket clamp 6100 for tube and C-profile ladders and 6120 for reinforced ladders. The brackets are adapted for use with both stainless and acid-resistant cable ladders.
Breaking load: = 1.7 times maximum load.
Product details
- MP-number 185-48
- EAN 7394333453231
- E-number 1116327
- Length 553 mm
- Width 50 mm
- Height 135 mm
- Weight 1.61 kg
- Climate impact 7.374 kgCO2e
- Material/surface treatment Stainless steel 316L
- Corrosivity class C5-M
- Fits (width) 500 mm
- Max load 450 kg
- Mounting External
- Suitable for Cable ladders RF/SF
Documents
Environmental data art 48_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Fits (width)
Max load
Material/surface treatment
Corrosivity class
182-48
1116324
200 mm
450 kg
Stainless steel 316L
C5-M
MP-number
E No
Fits (width)
Max load
Material/surface treatment
Corrosivity class
183-48
1116325
300 mm
450 kg
Stainless steel 316L
C5-M
MP-number
E No
Fits (width)
Max load
Material/surface treatment
Corrosivity class
184-48
1116326
400 mm
450 kg
Stainless steel 316L
C5-M
MP-number
E No
Fits (width)
Max load
Material/surface treatment
Corrosivity class
185-48
1116327
500 mm
450 kg
Stainless steel 316L
C5-M
MP-number
E No
Fits (width)
Max load
Material/surface treatment
Corrosivity class
186-48
1116328
600 mm
450 kg
Stainless steel 316L
C5-M
