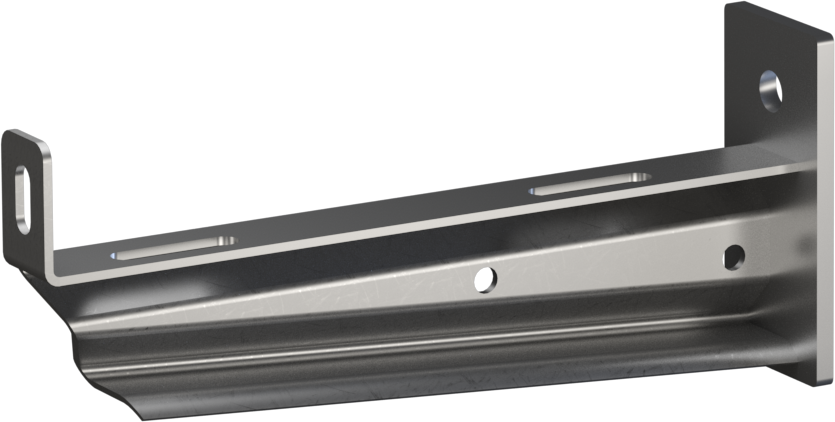

Wall bracket SF, 200 mm

C5-M

E No: 1116324

MP-number: 182-48

Wall bracket for cable ladder where the ladders are fixed with bracket clamp 6100 for tube and C-profile ladders and 6120 for reinforced ladders. The brackets are adapted for use with both stainless and acid-resistant cable ladders.

Breaking load: = 1.7 times maximum load.

All variants All variants

Product details

MP-number 182-48
EAN 7394333453200
E-number 1116324
Length 251 mm
Width 50 mm
Height 105 mm
Weight 0.62 kg
Climate impact 2.84 kgCO2e
Material/surface treatment Stainless steel 316L
Corrosivity class C5-M
Fits (width) 200 mm
Max load 450 kg
Mounting External
Suitable for Cable ladders RF/SF

Documents

Environmental data art 48_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	E No	Fits (width)	Max load	Material/surface treatment	Corrosivity class
182-48	1116324	200 mm	450 kg	Stainless steel 316L	C5-M	Selected
183-48	1116325	300 mm	450 kg	Stainless steel 316L	C5-M	Select
184-48	1116326	400 mm	450 kg	Stainless steel 316L	C5-M	Select
185-48	1116327	500 mm	450 kg	Stainless steel 316L	C5-M	Select
186-48	1116328	600 mm	450 kg	Stainless steel 316L	C5-M	Select
