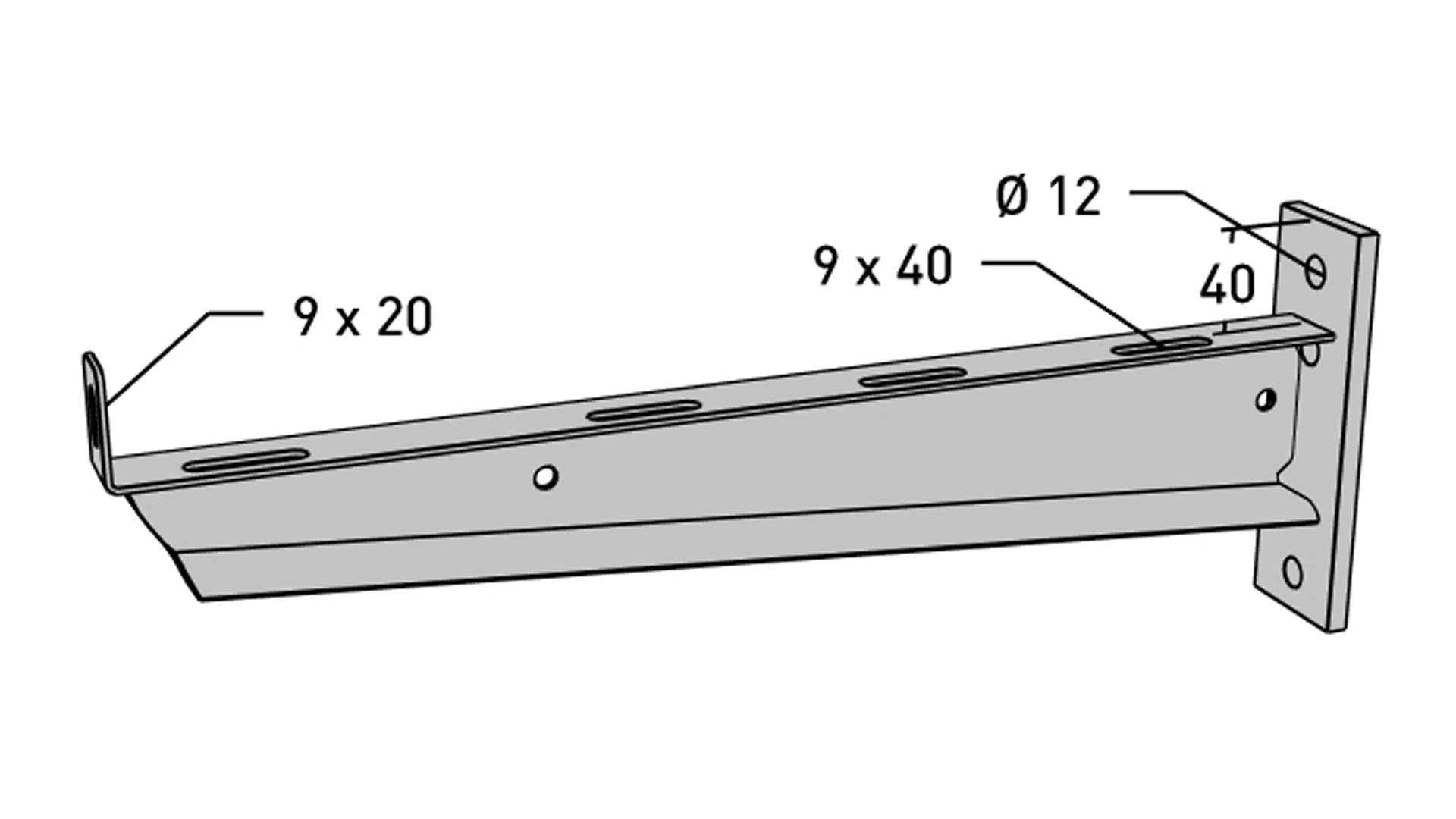

Wall bracket reinforced FZ, 200 mm

E No:

MP-number: 182Z2

Reinforced cantilever arm for large loads. Fastening on the cantilever arm is done using fastening screw on the front edge and cantilever arm clamp MP-187Z4 and screws MP-937Z on the rear edge as required. For porous walls use a backing plate. Ultimate failure load: greater than or equal to 1.7 times the maximum load.

All variants All variants

Product details

MP-number 182Z2
EAN 7394333099415
Length 252 mm
Width 50 mm
Height 140 mm
Weight 0.91 kg
Climate impact 2.575 kgCO2e
Material/surface treatment Hot-dip galvanized 55 µm
Corrosivity class C4
Fits (width) 200 mm
Max load 450 kg
Mounting External

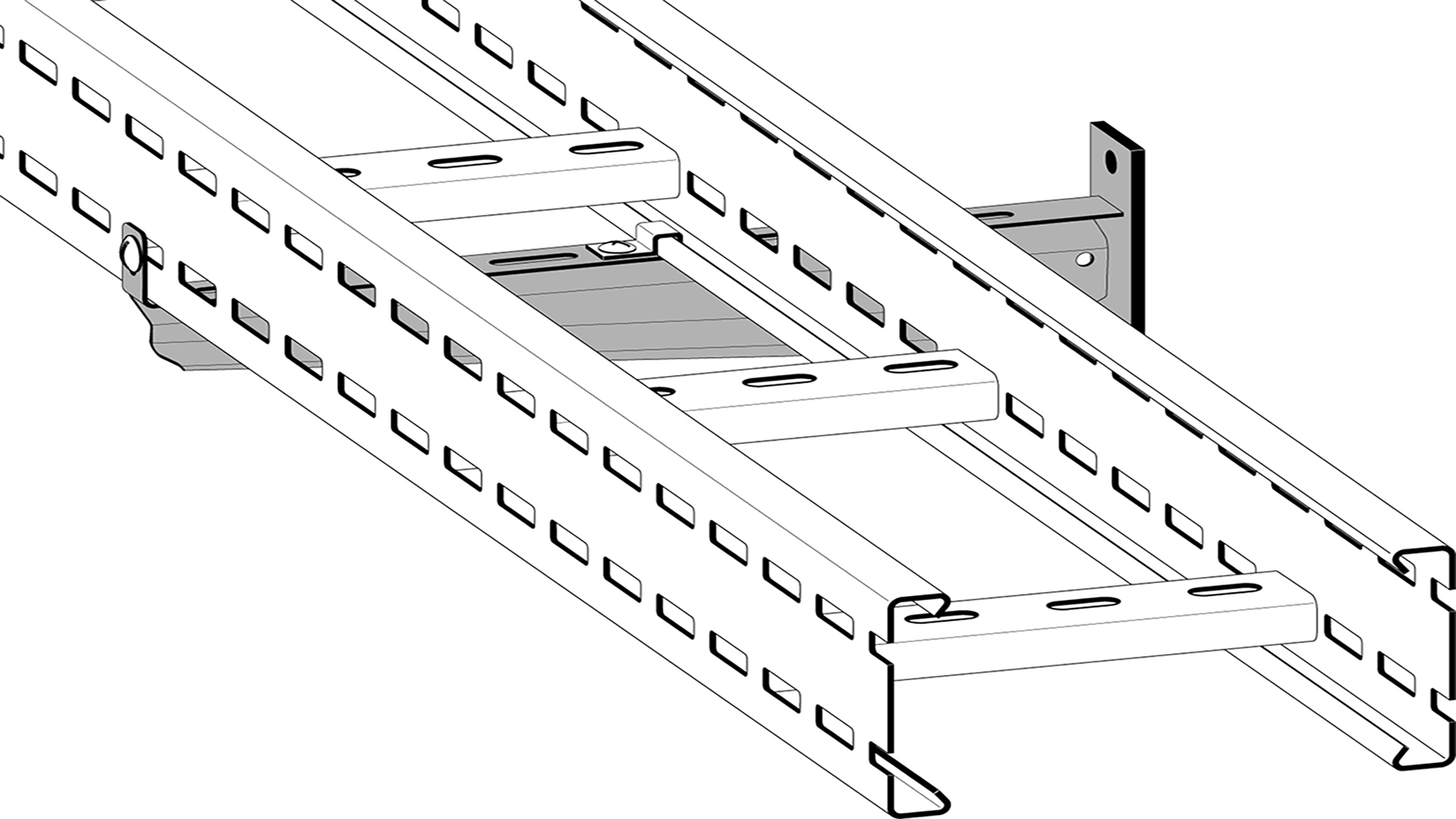

Suitable for Cable ladders

Documents

Environmental data galvanized Z_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Fits (width)	Max load	Material/surface treatment	Corrosivity class
182Z2	200 mm	450 kg	Hot-dip galvanized 55 µm	C4	Selected
183Z2	300 mm	450 kg	Hot-dip galvanized 55 µm	C4	Select
184Z2	400 mm	450 kg	Hot-dip galvanized 55 µm	C4	Select
185Z2	500 mm	450 kg	Hot-dip galvanized 55 µm	C4	Select
186Z2	600 mm	450 kg	Hot-dip galvanized 55 µm	C4	Select
188Z2	1000 mm	390 kg	Hot-dip galvanized 55 µm	C4	Select
189Z	800 mm	390 kg	Hot-dip galvanized 55 µm	C4	Select
