Wall bracket reinforced FZ, 1000 mm

C4

E No:

|

MP-number: 188Z2

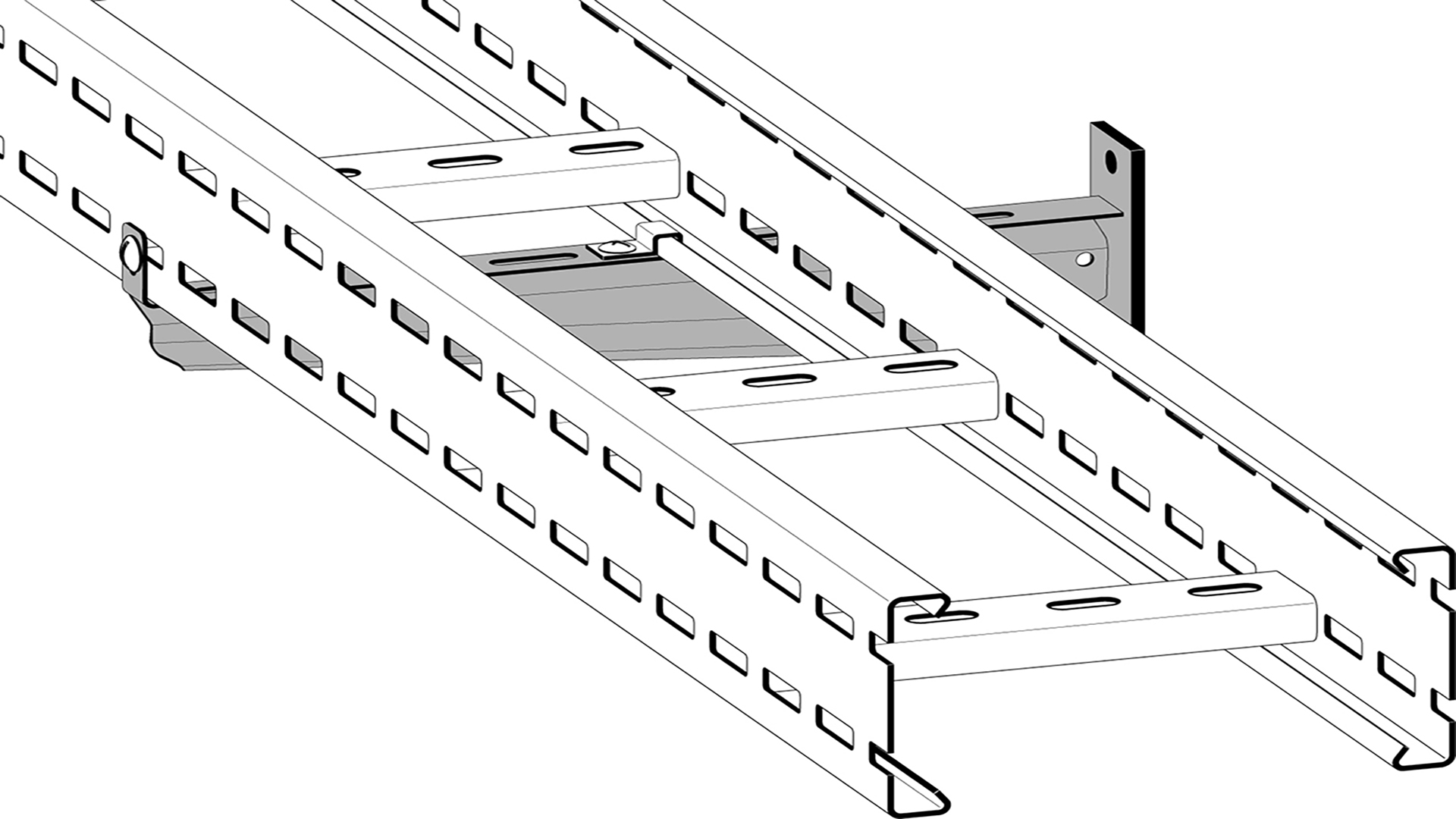

Reinforced cantilever arm for large loads. Fastening on the cantilever arm is done using fastening screw on the front edge and cantilever arm clamp MP-187Z4 and screws MP-937Z on the rear edge as required. For porous walls use a backing plate. Ultimate failure load: greater than or equal to 1.7 times the maximum load.
All variants

Product details

  • MP-number 188Z2
  • EAN 7394333706818
  • Length 1050 mm
  • Width 50 mm
  • Height 210 mm
  • Weight 4.5 kg
  • Climate impact 12.735 kgCO2e
  • Material/surface treatment Hot-dip galvanized 55 µm
  • Corrosivity class C4
  • Fits (width) 1000 mm
  • Max load 390 kg
  • Mounting External
  • Suitable for Cable ladders

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Fits (width)

Max load

Material/surface treatment

Corrosivity class

182Z2

200 mm

450 kg

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Max load

Material/surface treatment

Corrosivity class

183Z2

300 mm

450 kg

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Max load

Material/surface treatment

Corrosivity class

184Z2

400 mm

450 kg

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Max load

Material/surface treatment

Corrosivity class

185Z2

500 mm

450 kg

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Max load

Material/surface treatment

Corrosivity class

186Z2

600 mm

450 kg

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Max load

Material/surface treatment

Corrosivity class

188Z2

1000 mm

390 kg

Hot-dip galvanized 55 µm

C4

Selected

MP-number

E No

Fits (width)

Max load

Material/surface treatment

Corrosivity class

189Z

800 mm

390 kg

Hot-dip galvanized 55 µm

C4

Select
