Wall bracket, light, 300 mm

C4

E No:

|

MP-number: 754Z

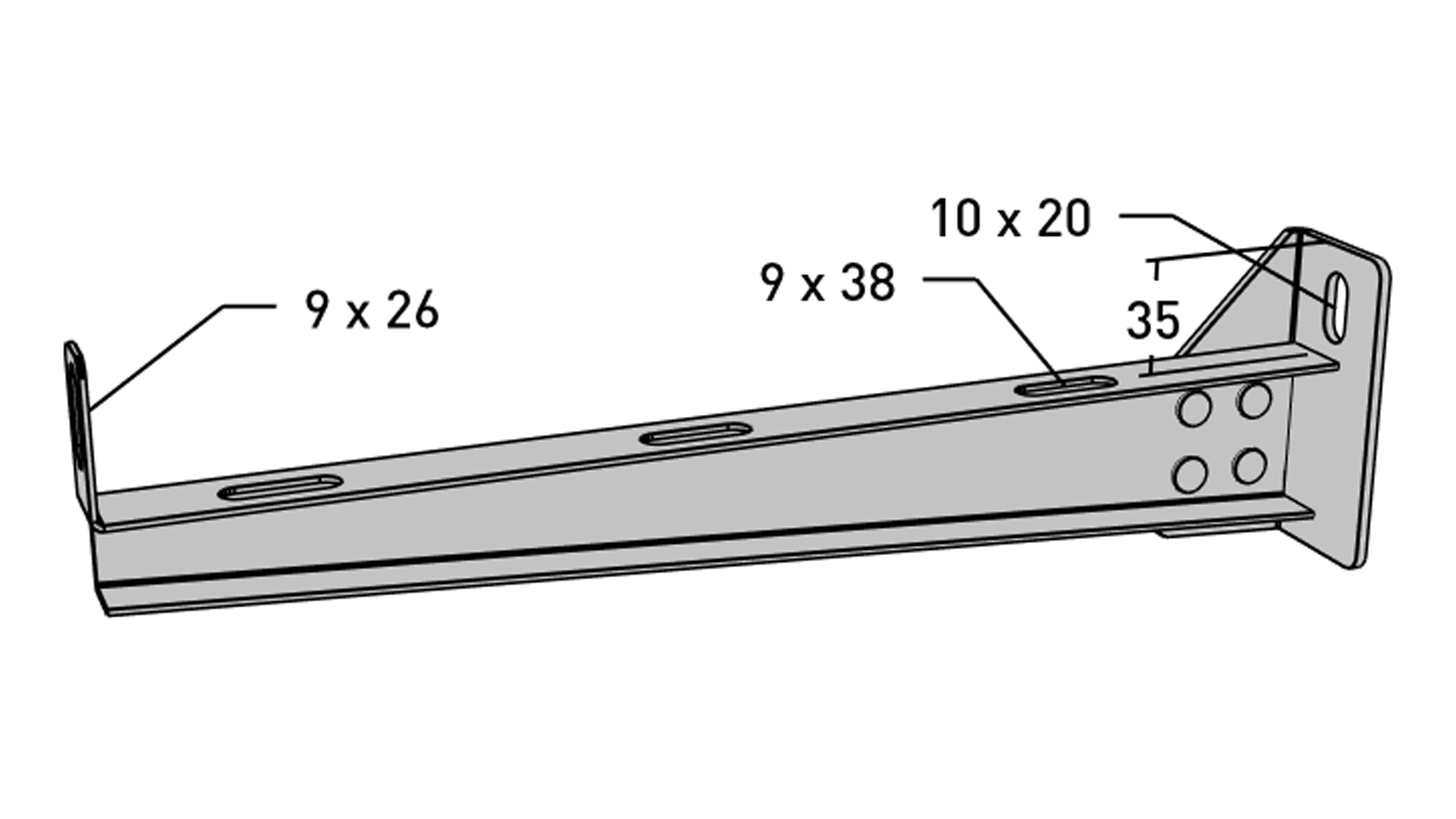

Cantilever arm for wall mounting or with pendant from ceiling. The cantilever arm is made of hot-dip galvanised sheet metal (55 µm) and is suitable for environmental class max C4. Suitable for cable ladders, cable trays/lighting rails and wire mesh trays. Maximum load 150 kg. Ultimate failure load: more than or equal to 1.7 times the maximum load. Easily locked at the back with universal bracket MP-731Z4 on cable ladders and with locking clip MP-733R on wire mesh trays.
All variants

Product details

  • MP-number 754Z
  • EAN 7394333055053
  • Length 344 mm
  • Width 41 mm
  • Height 90 mm
  • Weight 0.45 kg
  • Climate impact 1.274 kgCO2e
  • Material/surface treatment Hot-dip galvanized 55 µm
  • Corrosivity class C4
  • Fits (width) 300 mm
  • Max load 150 kg
  • Mounting External
  • Suitable for Cable ladders, Cable trays, Wire ladders

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

753S

200 mm

150 kg

Pre-galvanized 20 µm

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

754S

300 mm

150 kg

Pre-galvanized 20 µm

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

755S

400 mm

150 kg

Pre-galvanized 20 µm

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

752S

150 mm

150 kg

Pre-galvanized 20 µm

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

756S

500 mm

150 kg

Pre-galvanized 20 µm

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

762S

600 mm

150 kg

Pre-galvanized 20 µm

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

752V

150 mm

150 kg

NCS S 0500-N (white)

Lacquered

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

753V

200 mm

150 kg

NCS S 0500-N (white)

Lacquered

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

754V

300 mm

150 kg

NCS S 0500-N (white)

Lacquered

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

755V

400 mm

150 kg

NCS S 0500-N (white)

Lacquered

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

756V

500 mm

150 kg

NCS S 0500-N (white)

Lacquered

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

762V

600 mm

150 kg

NCS S 0500-N (white)

Lacquered

C2

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

175R

500 mm

150 kg

Stainless steel 316L

C5-M

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

176R

600 mm

150 kg

Stainless steel 316L

C5-M

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

752R

150 mm

150 kg

Stainless steel 316L

C5-M

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

753R

200 mm

150 kg

Stainless steel 316L

C5-M

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

754R

300 mm

150 kg

Stainless steel 316L

C5-M

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

755R

400 mm

150 kg

Stainless steel 316L

C5-M

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

752Z

150 mm

150 kg

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

753Z

200 mm

150 kg

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

754Z

300 mm

150 kg

Hot-dip galvanized 55 µm

C4

Selected

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

755Z

400 mm

150 kg

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

756Z

500 mm

150 kg

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Max load

Paint

Material/surface treatment

Corrosivity class

762Z

600 mm

150 kg

Hot-dip galvanized 55 µm

C4

Select
