Universal washer

E No:

MP-number: 731Z4

Universal bracket intended for universal fastenings when assembling cable ladders and wire mesh trays, as well as for locking cantilever arms and angle brackets. The bracket is made of a zinc-magnesium alloy (25 µm) and is suitable for environmental class max C4. When mounting wire mesh trays in widths 300–600 mm, the universal bracket is used at the bottom of the ladder to strengthen the splice. For fitting with bolt set MP-937Z. The universal bracket can also be used as a cantilever arm clamp at the rear edge for all ladder types except the reinforced ones.

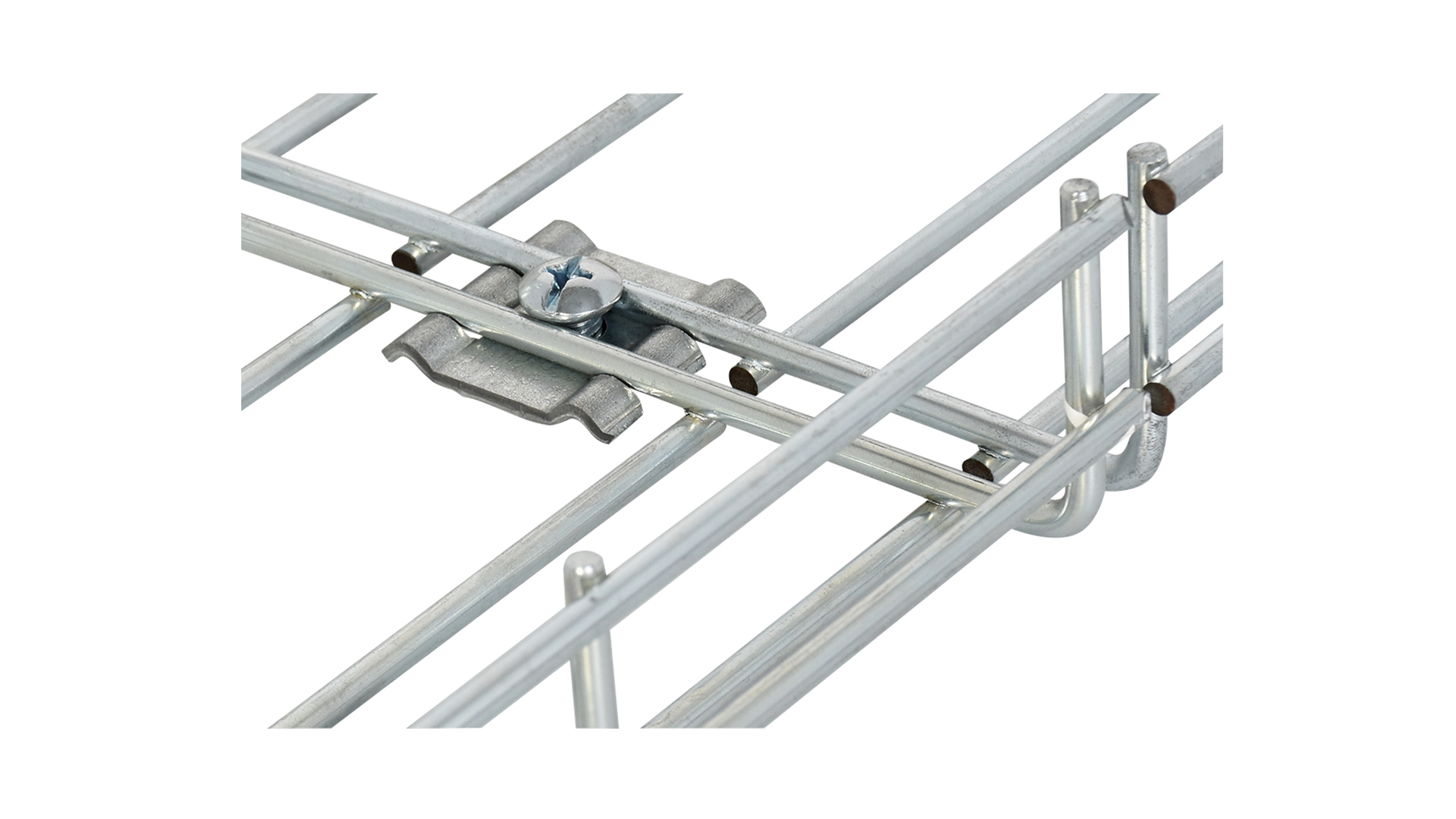

All variants All variants

Product details

MP-number 731Z4
EAN 7394333053875

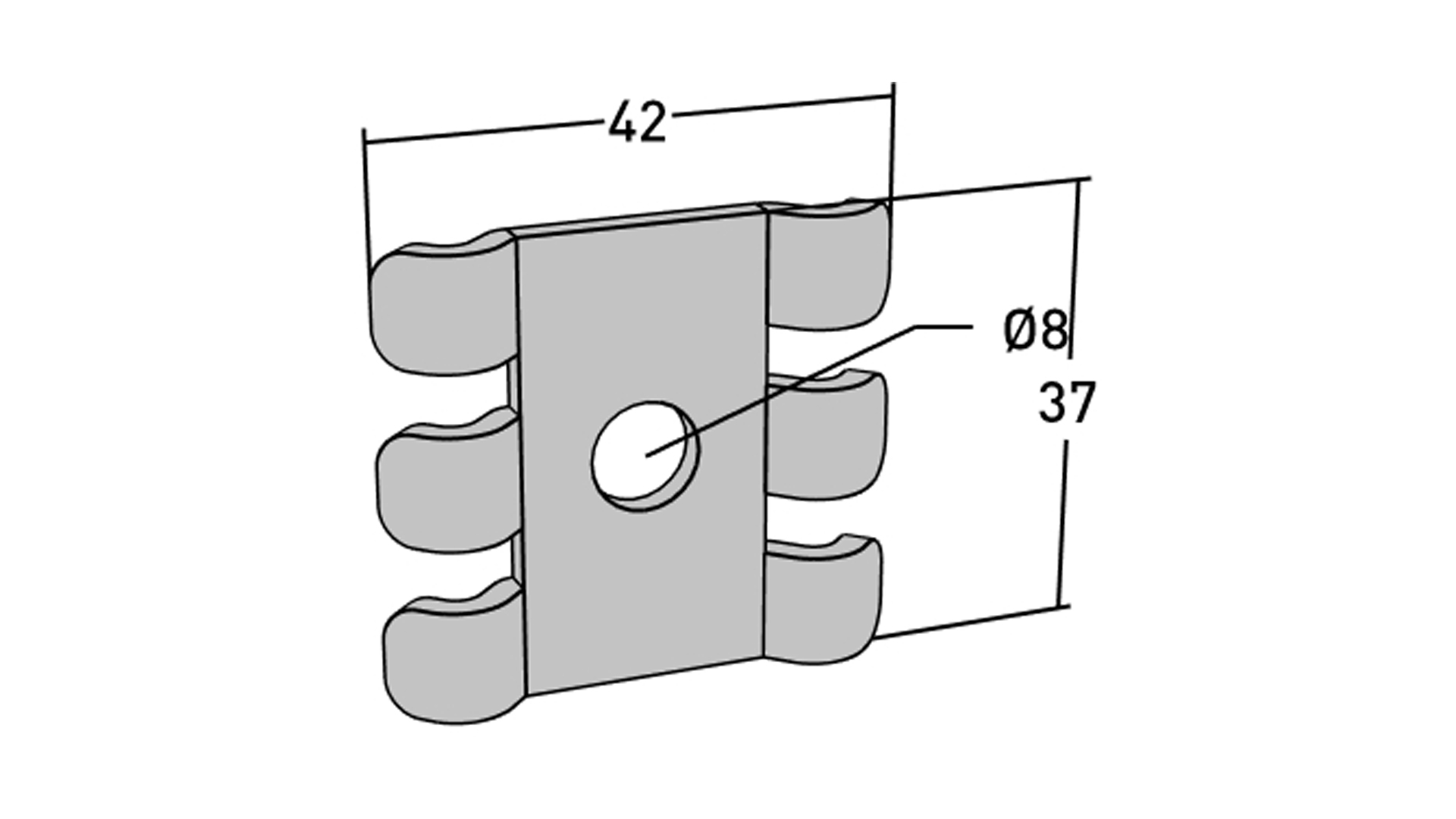

Length 37 mm
Width 42 mm
Height 5 mm
Weight 0.03 kg
Climate impact 0.08 kgCO2e
Surface treatment Z4
Corrosion class C4
Size (screw) M8
Suitable for Cable ladders, Wire ladders, Soliq

Documents

Environmental data galvanized Z4_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Size (screw)	Surface treatment	Color	Corrosion class	Suitable for
731S	M8	Pre-galvanized 20 µm		C2	Cable ladders, Wire ladders	Select
731V	M8	Lacquered	NCS S 0500-N (white)	C2	Wire ladders	Select
731R	M8	Stainless steel 316L		C5-M	Wire ladders	Select
731Z4	M8	Z4		C4	Cable ladders, Wire ladders, Soliq	Selected
