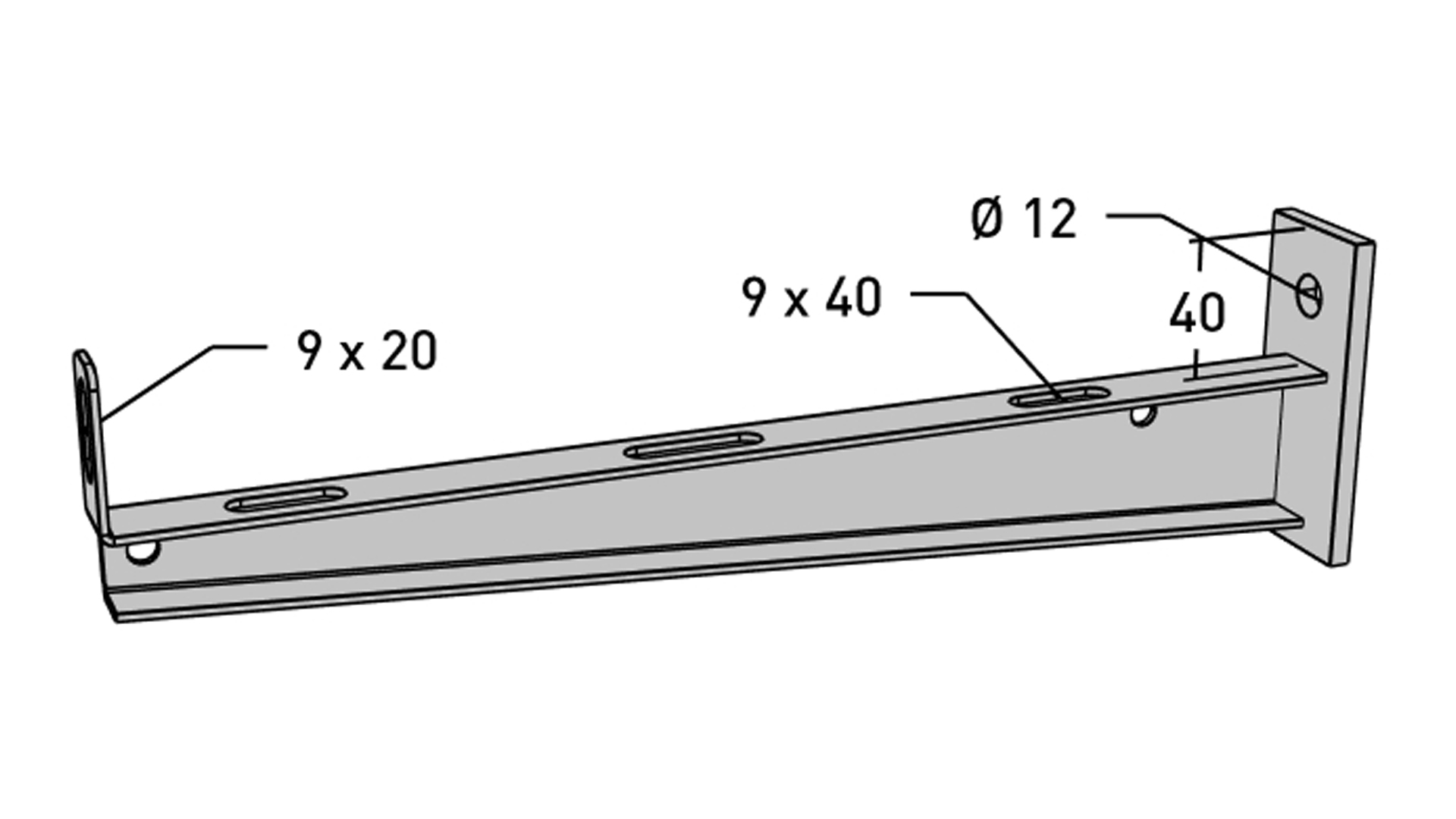

Wall bracket, 300 mm

E No:

MP-number: 173Z2

Cantilever arm for mounting cable ladders, wire mesh trays, cable trays etc. against the wall or on a side pendant from the ceiling. Made of hot-dip galvanised sheet (55 µm) and suitable for environmental class max C4. Fastening on the cantilever arm is done using a fastening bolt on the front edge and the universal bracket MP-731 and bolts on the rear edge as required. For porous walls, use a backing plate. Ultimate failure load: 1.7 times maximum load.

All variants All variants

Product details

MP-number 173Z2
EAN 7394333098739
Length 347 mm
Width 40 mm
Height 95 mm
Weight 0.6 kg
Climate impact 1.698 kgCO2e
Material/surface treatment Hot-dip galvanized 55 µm
Corrosivity class C4
Fits (width) 300 mm
Max load 200 kg
Mounting External
Suitable for Cable ladders

Documents

Environmental data galvanized Z_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Fits (width)	Max load	Paint	Material/surface treatment	Corrosivity class
172V2	200 mm	200 kg	NCS S 0500-N (white)	Lacquered	C2	Select
173V2	300 mm	200 kg	NCS S 0500-N (white)	Lacquered	C2	Select
174V2	400 mm	250 kg	NCS S 0500-N (white)	Lacquered	C2	Select
175V2	500 mm	370 kg	NCS S 0500-N (white)	Lacquered	C2	Select
176V2	600 mm	370 kg	NCS S 0500-N (white)	Lacquered	C2	Select
172Z2	200 mm	200 kg		Hot-dip galvanized 55 µm	C4	Select
173Z2	300 mm	200 kg		Hot-dip galvanized 55 µm	C4	Selected
174Z2	400 mm	250 kg		Hot-dip galvanized 55 µm	C4	Select
175Z2	500 mm	370 kg		Hot-dip galvanized 55 µm	C4	Select
176Z2	600 mm	370 kg		Hot-dip galvanized 55 µm	C4	Select
