Roof support multi
C4
E No:
|
MP-number: PVX2

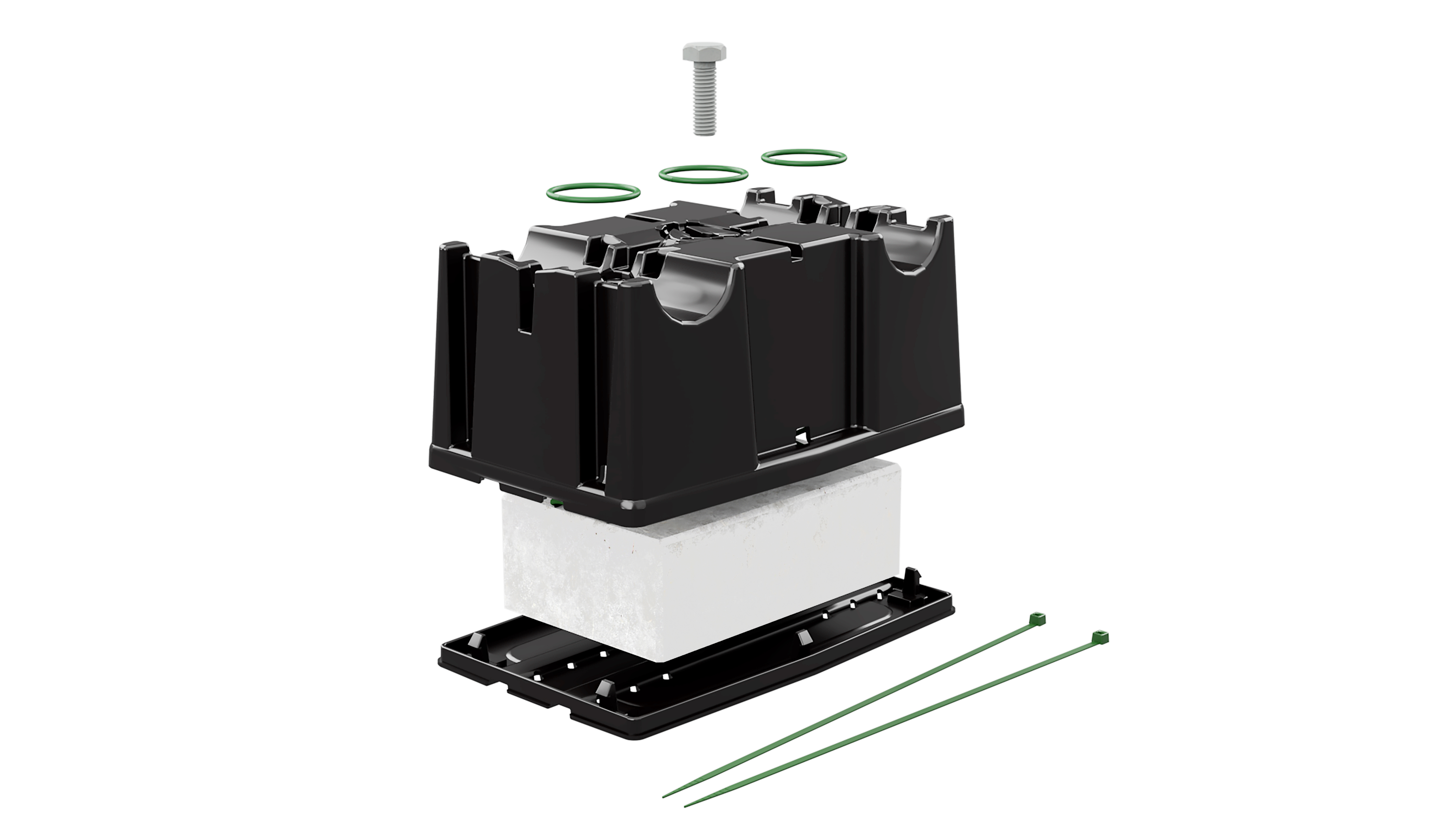

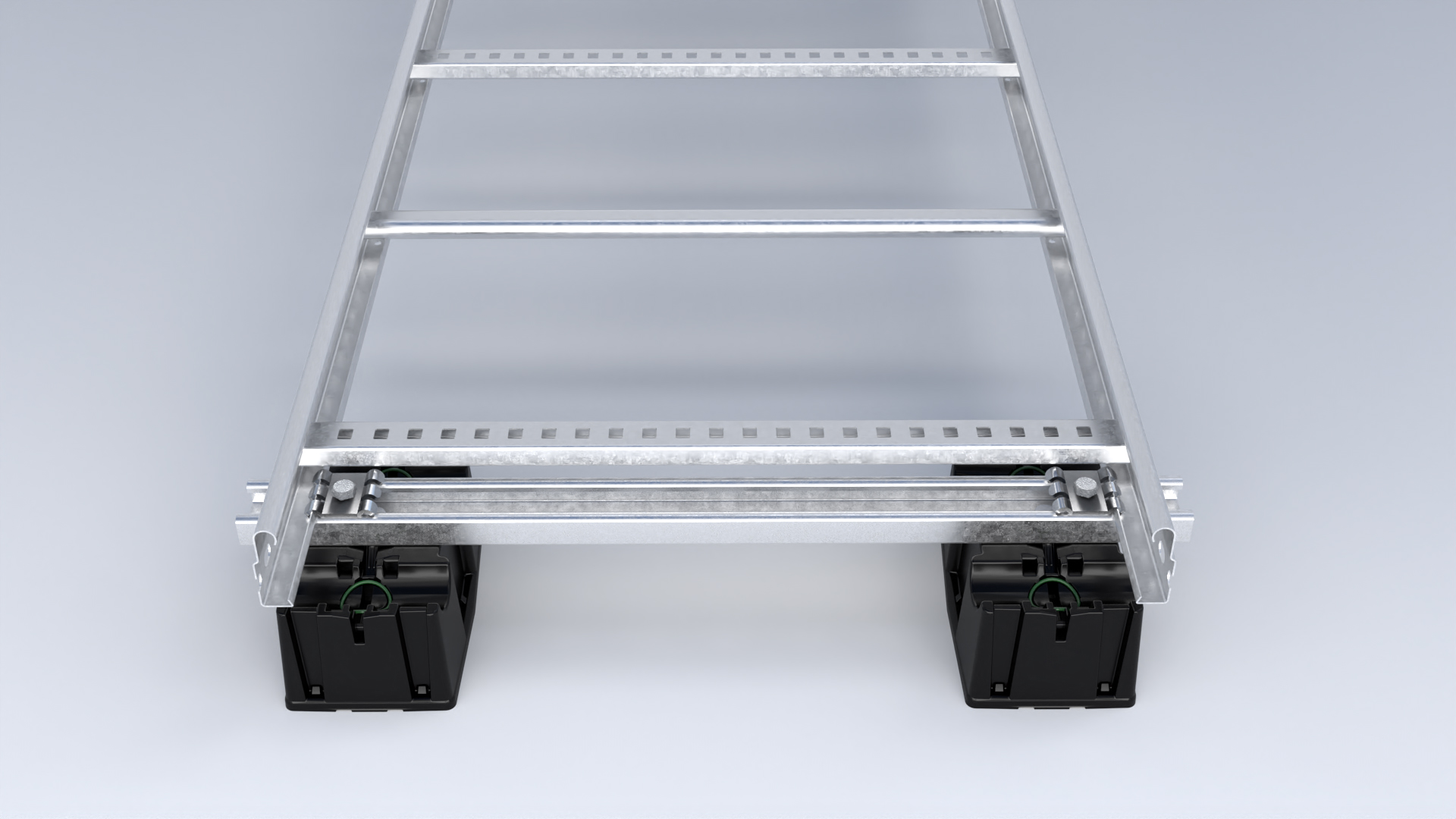

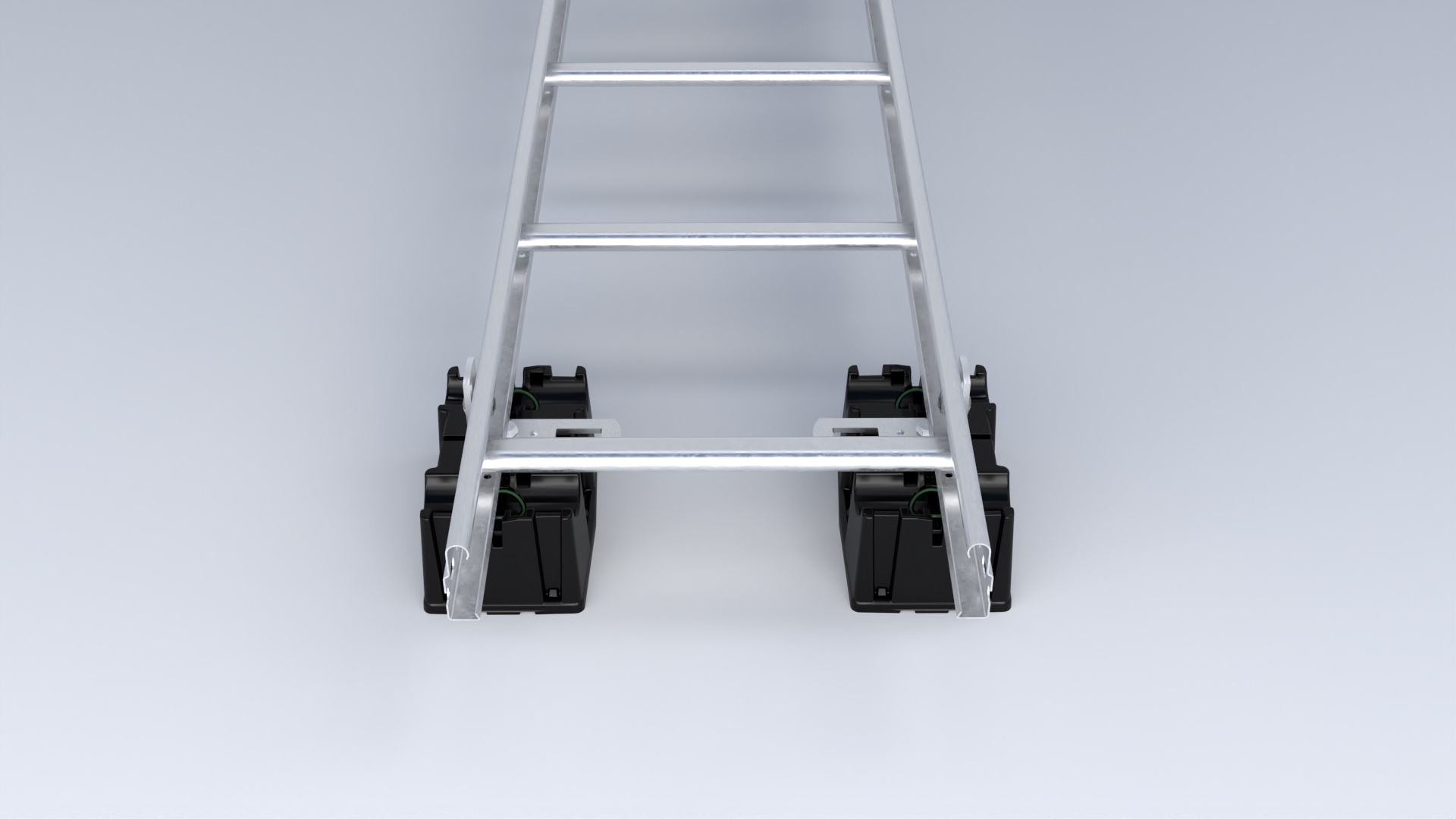

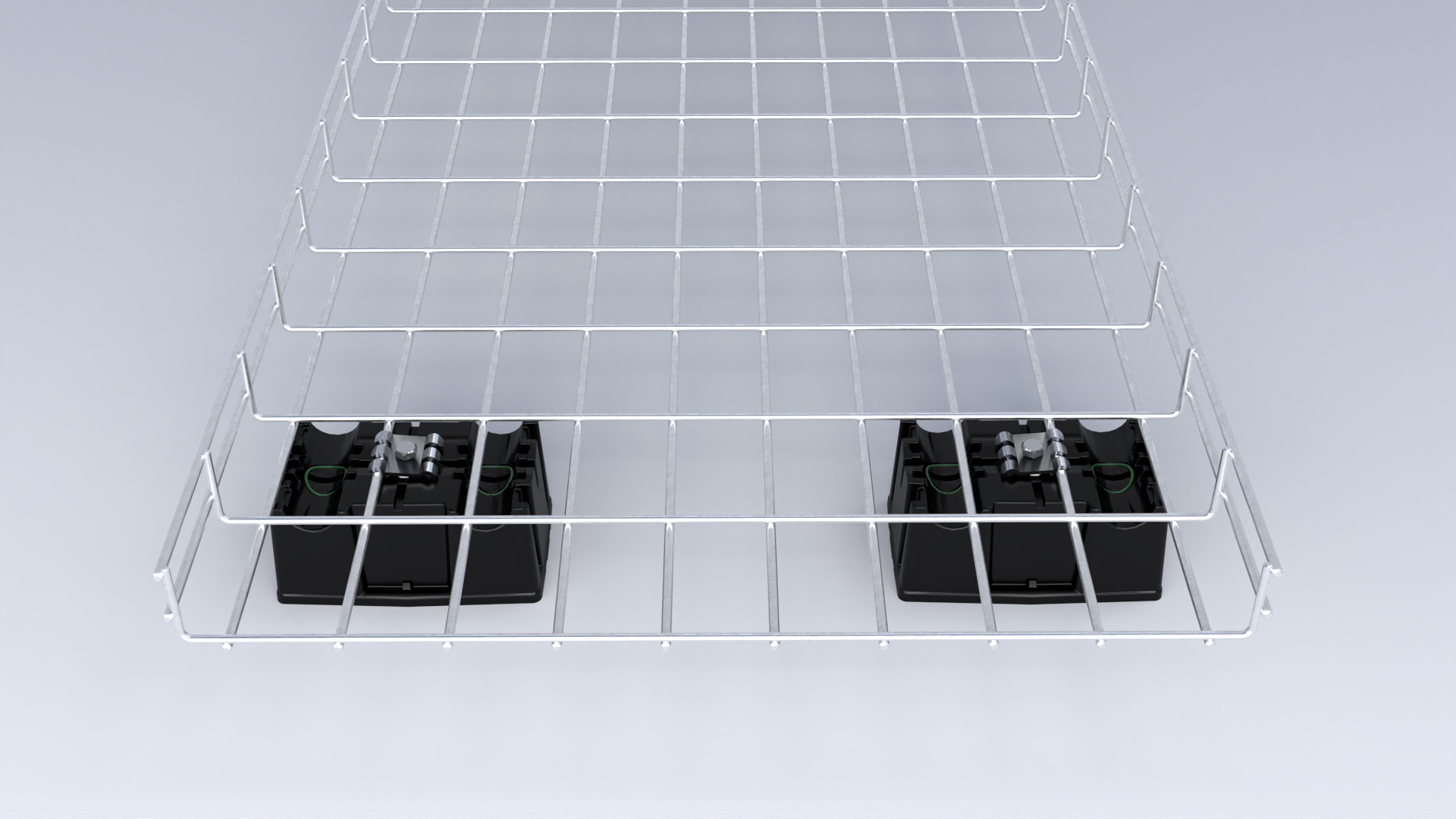

Roof support for cable routing on flat roofs with a slope not exceeding five degrees. M8 screw for universal attachment included. Wire ladder 55–75 mm is screwed in with universal washer MP-731. For wider wire ladders, two parallel roof supports are used. Cable ladder is mounted to the anchor rail which is attached to the roof support at both ends. Mounting with MP angle MP-900 or directly with universal washer MP-731 is possible.
Also fits pipes 2x Ø16–32 mm or 1x Ø16–100 mm.
Internal weight of approx. 1 kg. Both roof supports and cable ties are UV resistant.
To calculate the number of supports, see page https://pvxmountingsystems.com/en/pvx-calculator/
All variants
Product details
- MP-number PVX2
- EAN 7394333056241
- Length 170 mm
- Width 107 mm
- Height 80 mm
- Weight 1.14 kg
- Surface treatment Plastic
- Color RAL 9005 (black)
- Corrosion class C4
- Suitable for Cable ladders, Wire ladders
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Length
Width
Height
Color
Surface treatment
Corrosion class
Suitable for
PVX2
170 mm
107 mm
80 mm
RAL 9005 (black)
Plastic
C4
Cable ladders, Wire ladders
Relaterade produkter
C4
Nut washer, M8x20 mm
E No:
MP-number: 976Z
C4
Universal washer
E No:
MP-number: 731Z4
C4

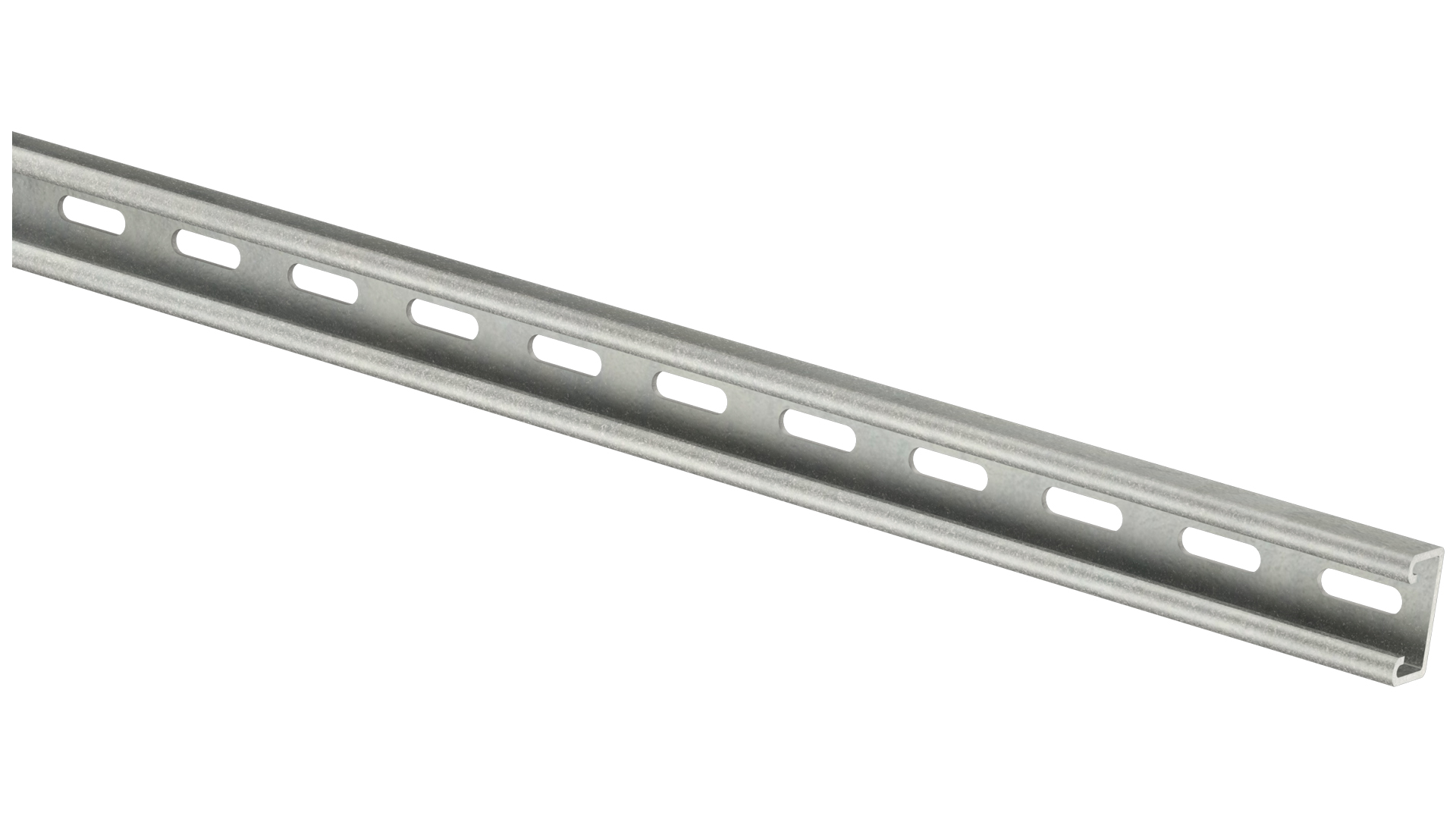

Anchor rail MP-V, 21x41 mm, 250 mm
