Horizontal angle bracket RF
C5-I
E No:
|
MP-number: 6317-33
Horizontal angle for reinforced stainless cable ladders. Used to create a junction at an optional angle and to serve as an end bracket against a wall or floor. Two angles and two screw sets MP-6695 are required for one complete junction.
All variants
Product details
- MP-number 6317-33
- EAN 7394333453088

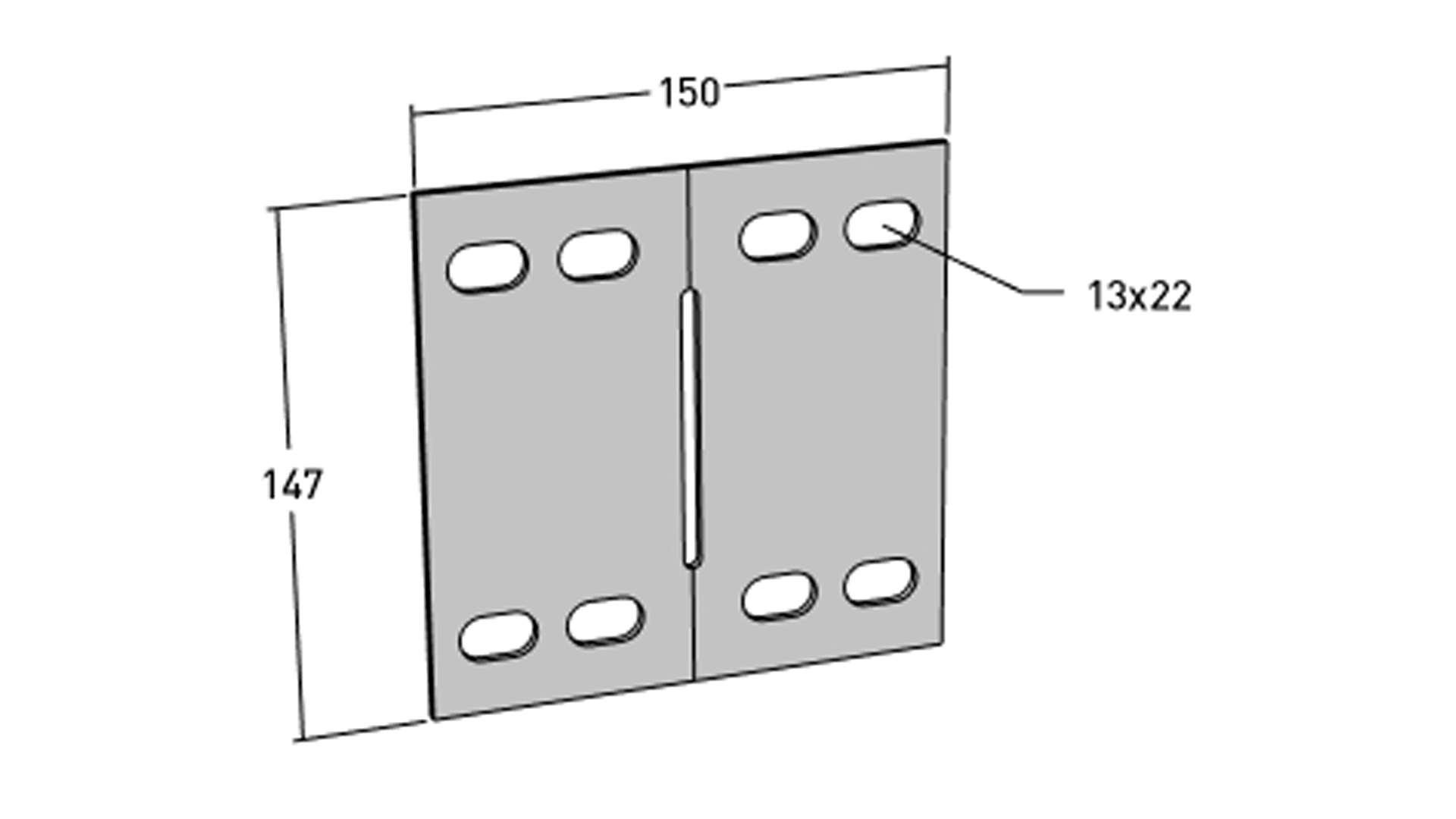

- Length 150 mm
- Width 147 mm
- Height 3 mm
- Weight 0.47 kg
- Climate impact 2.256 kgCO2e
- Surface treatment Stainless steel 304
- Corrosion class C5-I
- Mounting External
- Suitable for Cable ladders RF/SF
Documents
Environmental data art 33_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
