Cable ladder MP-RFC, 6 m RF, 500 mm

C5-I

E No:

|

MP-number: 8065-33

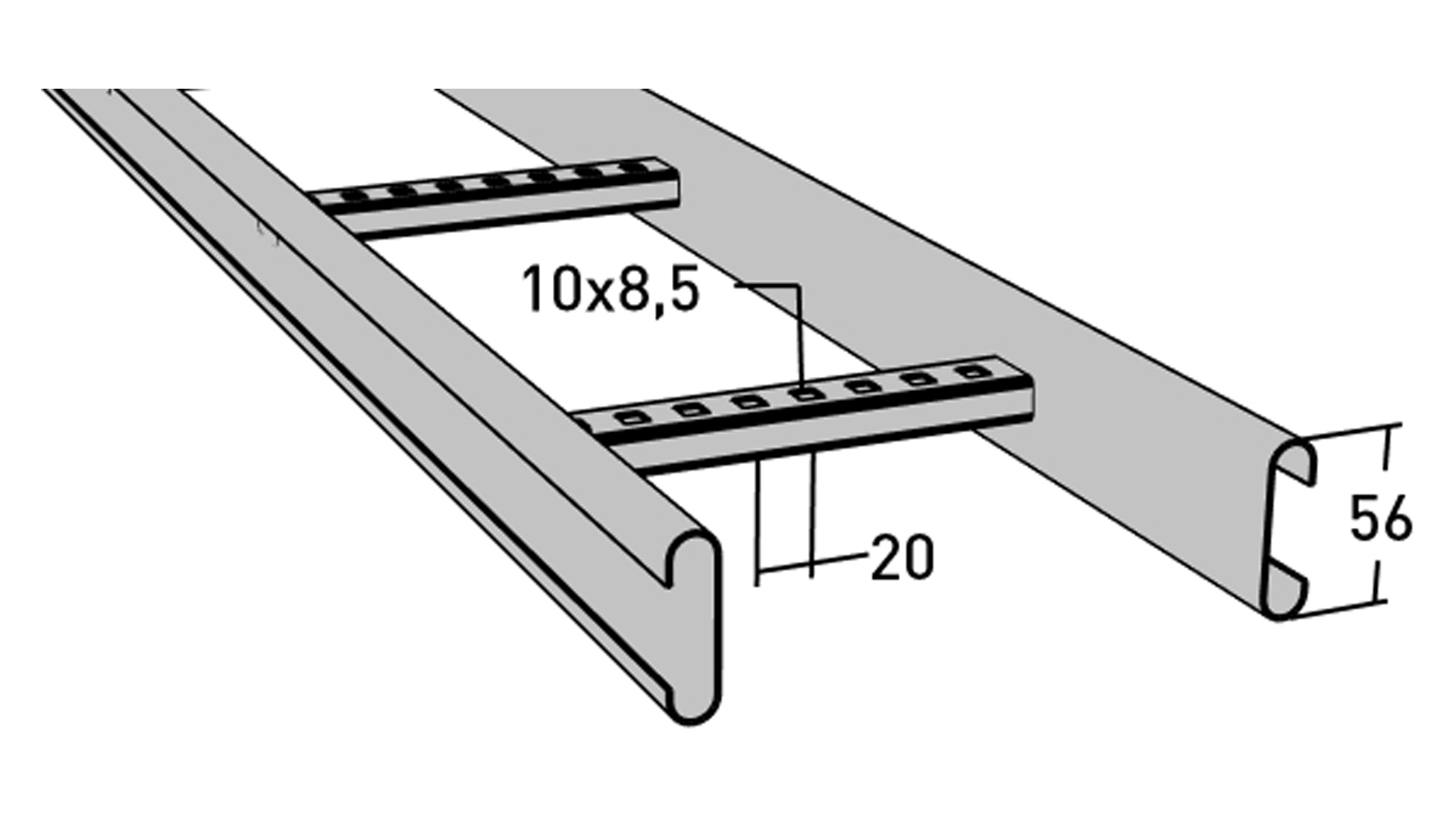

This stainless steel cable ladder has an open side profile - the so-called C-profile, which makes the ladder lighter and has a lower price. It is 6 m long, has open rungs with c-c distance 300 mm, is used in environmental class max C5-I.
All variants

Product details

  • MP-number 8065-33
  • EAN 7394333399164
  • Length 6000 mm
  • Width 500 mm
  • Height 55 mm
  • Weight 12.94 kg
  • Material thickness ladder side 1 mm
  • Climate impact 62.112 kgCO2e
  • Surface treatment Stainless steel 304
  • Corrosion class C5-I
  • Cable ladder properties Perforated rungs, C-profile
  • Model MP-RFC

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Length

Width

8062-33

6000 mm

200 mm

Select

MP-number

E No

Length

Width

8063-33

6000 mm

300 mm

Select

MP-number

E No

Length

Width

8064-33

6000 mm

400 mm

Select

MP-number

E No

Length

Width

8065-33

6000 mm

500 mm

Selected

MP-number

E No

Length

Width

8066-33

6000 mm

600 mm

Select
