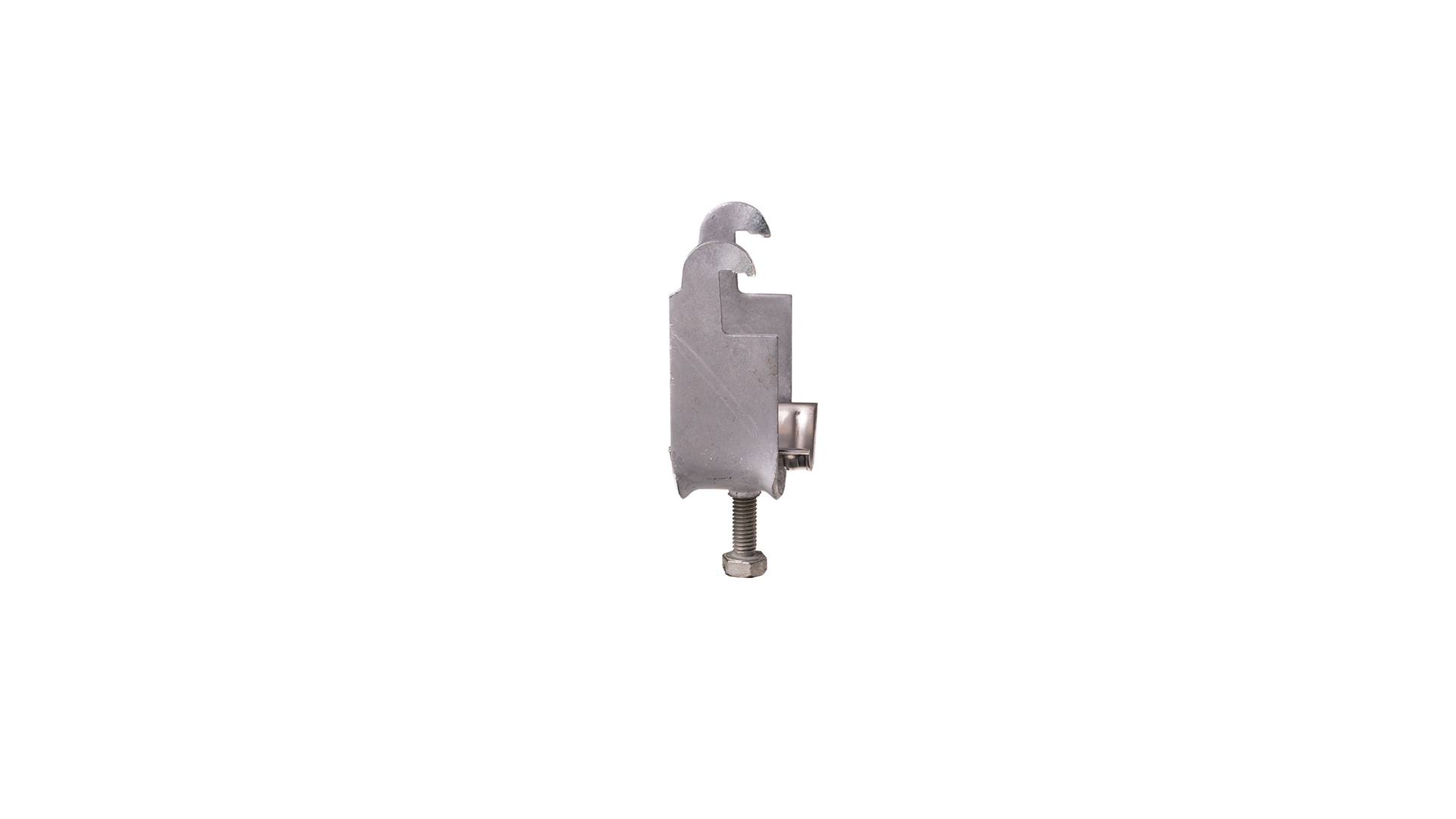

Cable clamp ACU, Single, 32–36 mm

E No:

MP-number: K36ACU

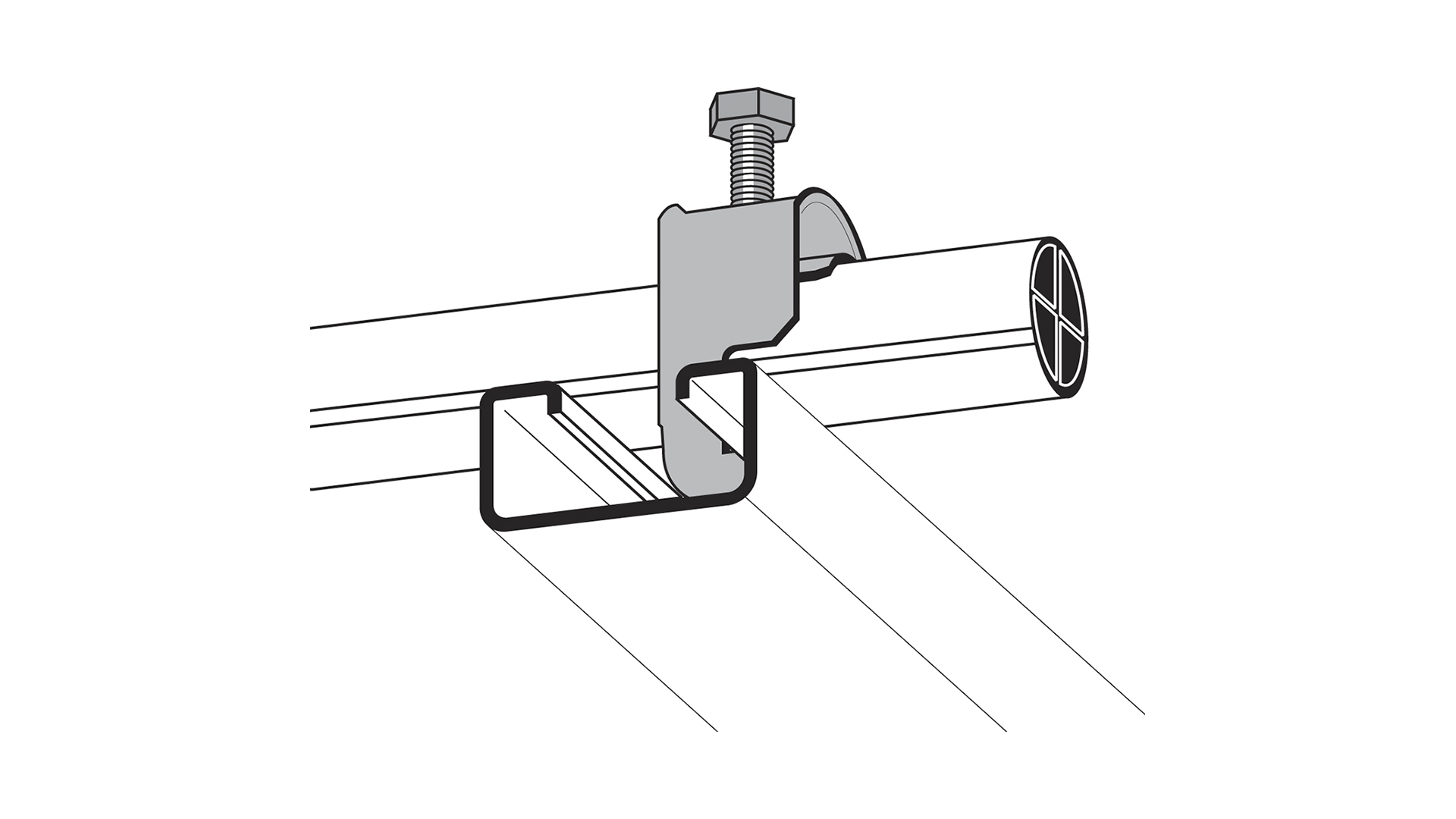

Cable clamp primarily designed for anchor rails, but also suitable on flat steel bars, U- and C-profiles, etc. as well as on the rungs of cable ladder type MP-S. Cable clamp type ACU-VA is manufactured of non-magnetic stainless steel grade 1.4301 (SS2333). Cable clamps in other sizes are available on request. Tip! Mount the cable clamp with the opening facing upwards on a horizontal anchor rail.

All variants All variants

Product details

MP-number K36ACU
EAN 7394333068763
Length 33 mm
Width 41 mm
Height 86 mm
Weight 0.07 kg
Surface treatment Hot-dip galvanized 55 µm
Corrosion class C4
Number of cables (cable holders) Simple
Cable diameter 32–36 mm mm
Model Kabelhållare ACU

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Number of cables (cable holders)	Cable diameter	Surface treatment	Corrosion class
K12/2ACU	Double	8–12 mm mm	Hot-dip galvanized 55 µm	C4	Select
K12ACU-VA	Simple	8–12 mm mm	Stainless steel 304	C5-I	Select
K16ACU-VA	Simple	12–16 mm mm	Stainless steel 304	C5-I	Select
K20ACU-VA	Simple	16–20 mm mm	Stainless steel 304	C5-I	Select
K24ACU-VA	Simple	24–28 mm mm	Stainless steel 304	C5-I	Select
K28ACU-VA	Simple	24–28 mm mm	Stainless steel 304	C5-I	Select
K32ACU-VA	Simple	28–32 mm mm	Stainless steel 304	C5-I	Select
K36ACU-VA	Simple	32–36 mm mm	Stainless steel 304	C5-I	Select
K40ACU-VA	Simple	36–40 mm mm	Stainless steel 304	C5-I	Select
K44ACU-VA	Simple	40–44 mm mm	Stainless steel 304	C5-I	Select
K48ACU-VA	Simple	44–48 mm mm	Stainless steel 304	C5-I	Select
K52ACU-VA	Simple	48–52 mm mm	Stainless steel 304	C5-I	Select
K56ACU-VA	Simple	52–56 mm mm	Stainless steel 304	C5-I	Select
K12/3ACU	Triple	8–12 mm mm	Hot-dip galvanized 55 µm	C4	Select
K12ACU	Simple	8–12 mm mm	Hot-dip galvanized 55 µm	C4	Select
K16/2ACU	Double	12–16 mm mm	Hot-dip galvanized 55 µm	C4	Select
K16/3ACU	Triple	12–16 mm mm	Hot-dip galvanized 55 µm	C4	Select
K16ACU	Simple	12–16 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20/2ACU	Double	16–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20ACU	Simple	16–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K24/2ACU	Double	20–24 mm mm	Hot-dip galvanized 55 µm	C4	Select
K24ACU	Simple	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K28/2ACU	Double	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K28/3ACU	Triple	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K28ACU	Simple	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K32ACU	Simple	28–32 mm mm	Hot-dip galvanized 55 µm	C4	Select
K36ACU	Simple	32–36 mm mm	Hot-dip galvanized 55 µm	C4	Selected
K40/2ACU	Double	36–40 mm mm	Hot-dip galvanized 55 µm	C4	Select
K40ACU	Simple	36–40 mm mm	Hot-dip galvanized 55 µm	C4	Select
K44ACU	Simple	40–44 mm mm	Hot-dip galvanized 55 µm	C4	Select
K48ACU	Simple	44–48 mm mm	Hot-dip galvanized 55 µm	C4	Select
K52/2ACU	Double	48–52 mm mm	Hot-dip galvanized 55 µm	C4	Select
K52ACU	Simple	48–52 mm mm	Hot-dip galvanized 55 µm	C4	Select
K56ACU	Simple	52–56 mm mm	Hot-dip galvanized 55 µm	C4	Select
K60ACU	Simple	56–60 mm mm	Hot-dip galvanized 55 µm	C4	Select
K70ACU	Simple	60–70 mm mm	Hot-dip galvanized 55 µm	C4	Select

Variants

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K12/2ACU

Double

8–12 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K12ACU-VA

Simple

8–12 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K16ACU-VA

Simple

12–16 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K20ACU-VA

Simple

16–20 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K24ACU-VA

Simple

24–28 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K28ACU-VA

Simple

24–28 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K32ACU-VA

Simple

28–32 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K36ACU-VA

Simple

32–36 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K40ACU-VA

Simple

36–40 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K44ACU-VA

Simple

40–44 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K48ACU-VA

Simple

44–48 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K52ACU-VA

Simple

48–52 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K56ACU-VA

Simple

52–56 mm mm

Stainless steel 304

C5-I

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K12/3ACU

Triple

8–12 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K12ACU

Simple

8–12 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K16/2ACU

Double

12–16 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K16/3ACU

Triple

12–16 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K16ACU

Simple

12–16 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K20/2ACU

Double

16–20 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K20ACU

Simple

16–20 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K24/2ACU

Double

20–24 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K24ACU

Simple

24–28 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K28/2ACU

Double

24–28 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K28/3ACU

Triple

24–28 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K28ACU

Simple

24–28 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K32ACU

Simple

28–32 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K36ACU

Simple

32–36 mm mm

Hot-dip galvanized 55 µm

Selected

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K40/2ACU

Double

36–40 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K40ACU

Simple

36–40 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K44ACU

Simple

40–44 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K48ACU

Simple

44–48 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K52/2ACU

Double

48–52 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K52ACU

Simple

48–52 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K56ACU

Simple

52–56 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K60ACU

Simple

56–60 mm mm

Hot-dip galvanized 55 µm

Select

MP-number

E No

Number of cables (cable holders)

Cable diameter

Surface treatment

Corrosion class

K70ACU

Simple

60–70 mm mm

Hot-dip galvanized 55 µm

Select

Relaterade produkter

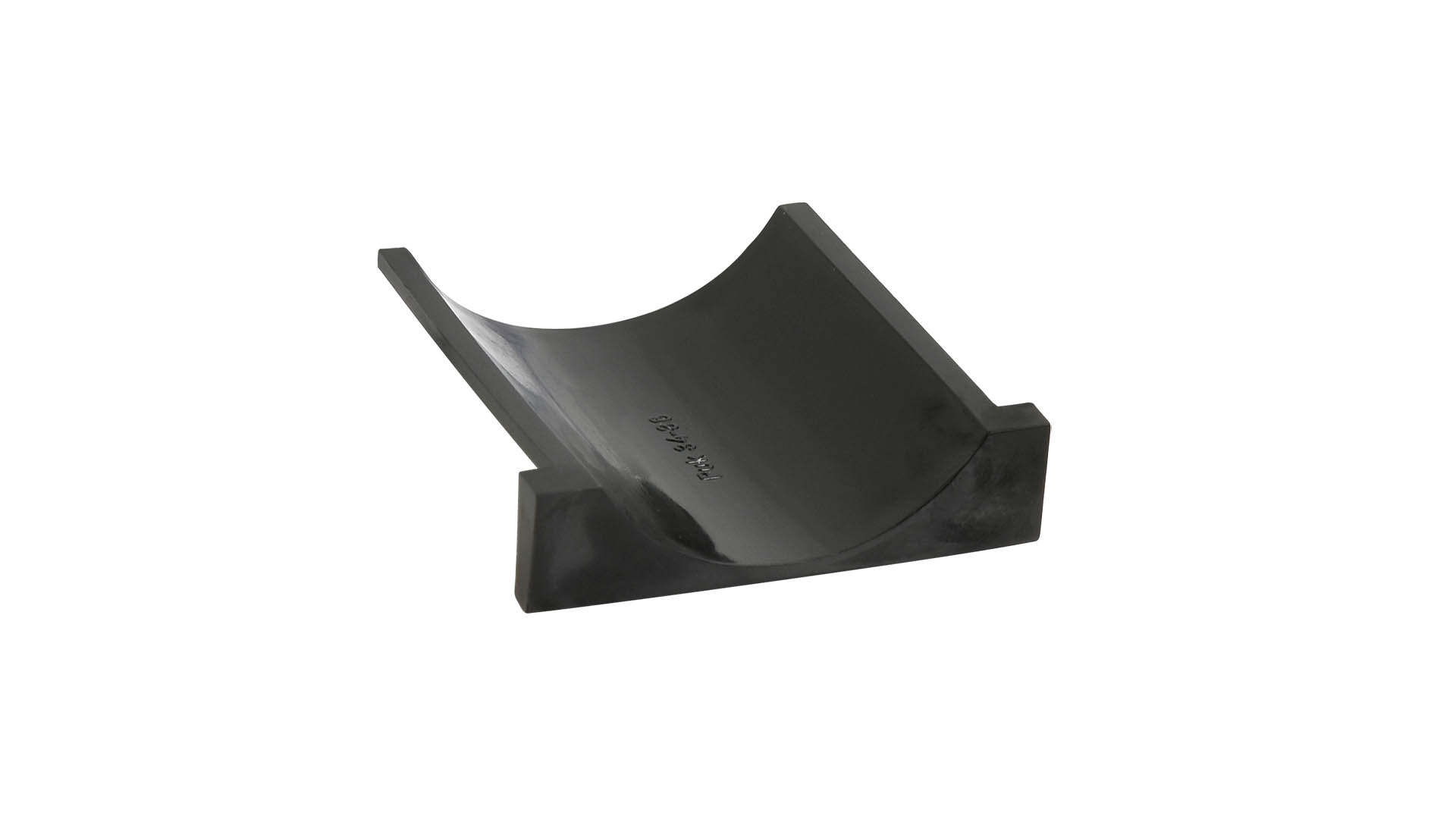

Long shim, 32–36 mm
