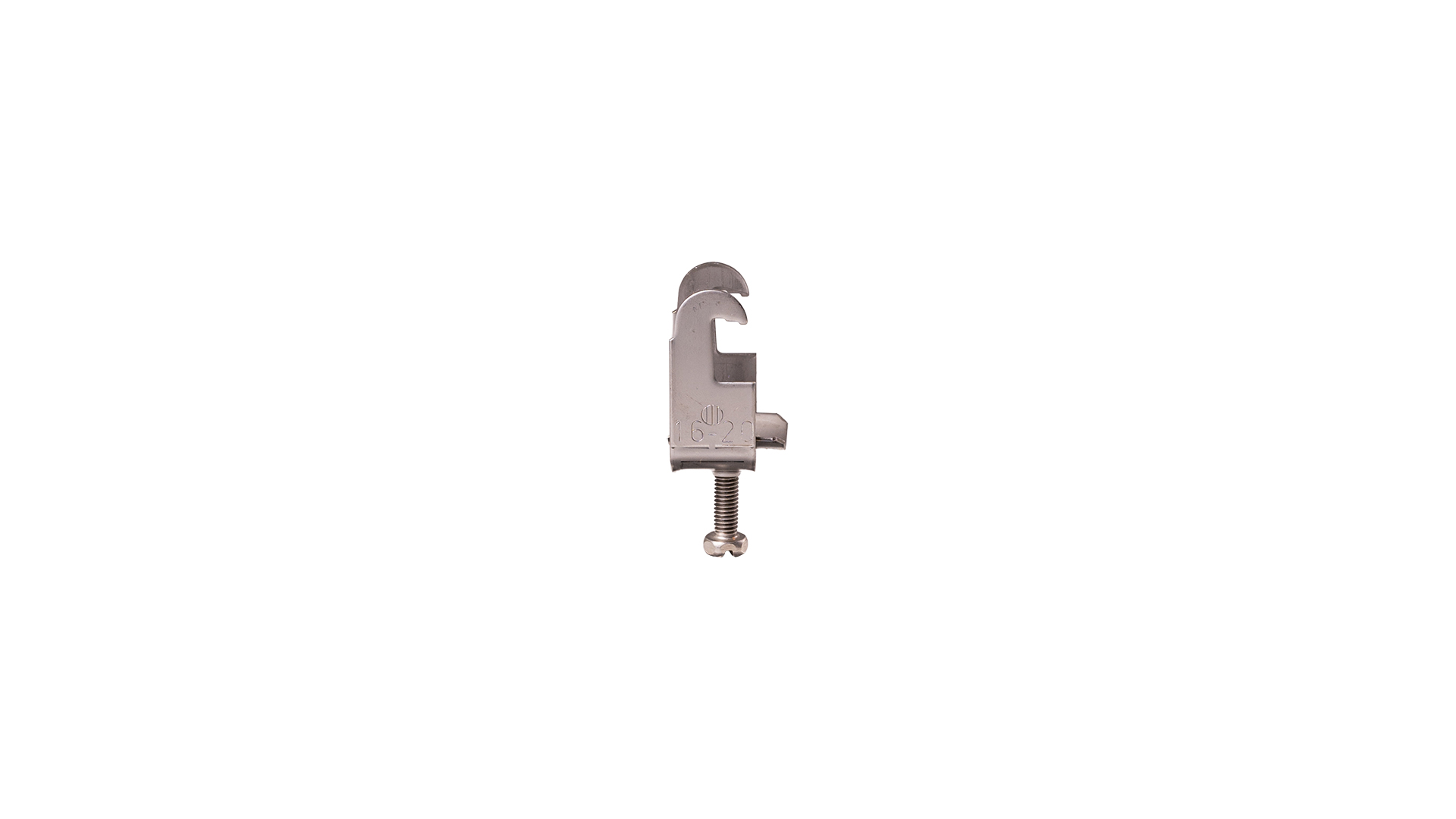

Cable clamp ACU, Single, 16–20 mm

C5-I

E No:

MP-number: K20ACU-VA

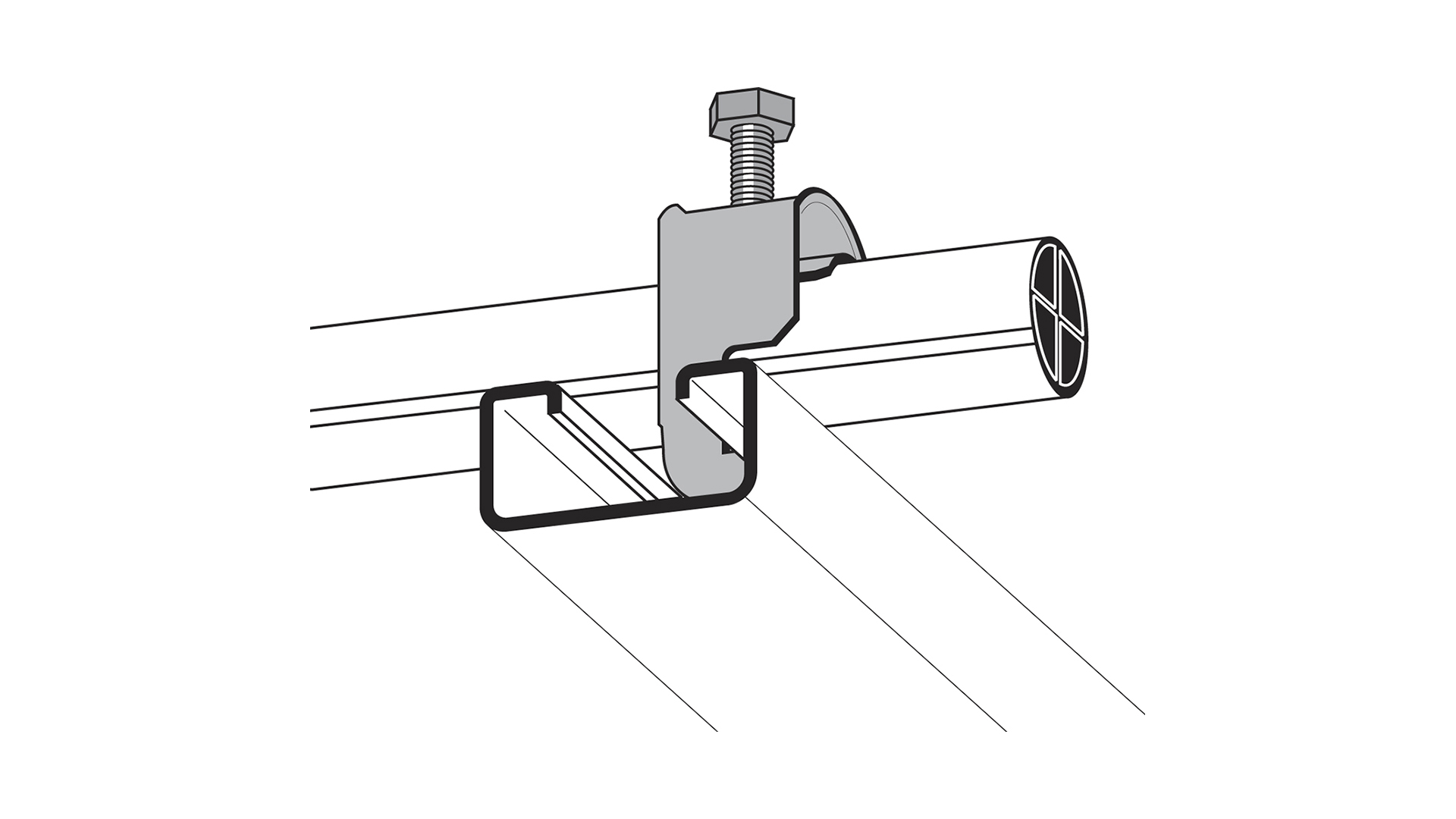

Cable clamp primarily designed for anchor rails, but also suitable on flat steel bars, U- and C-profiles, etc. as well as on the rungs of cable ladder type MP-S. Cable clamp type ACU-VA is manufactured of non-magnetic stainless steel grade 1.4301 (SS2333). Cable clamps in other sizes are available on request. Tip! Mount the cable clamp with the opening facing upwards on a horizontal anchor rail.

All variants All variants

Product details

MP-number K20ACU-VA
EAN 7394333077789
Length 28 mm
Width 24 mm
Height 68 mm
Weight 0.04 kg
Surface treatment Stainless steel 304
Corrosion class C5-I
Number of cables (cable holders) Simple
Cable diameter 16–20 mm mm
Model Kabelhållare ACU

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Number of cables (cable holders)	Cable diameter	Surface treatment	Corrosion class
K12/2ACU	Double	8–12 mm mm	Hot-dip galvanized 55 µm	C4	Select
K12ACU-VA	Simple	8–12 mm mm	Stainless steel 304	C5-I	Select
K16ACU-VA	Simple	12–16 mm mm	Stainless steel 304	C5-I	Select
K20ACU-VA	Simple	16–20 mm mm	Stainless steel 304	C5-I	Selected
K24ACU-VA	Simple	24–28 mm mm	Stainless steel 304	C5-I	Select
K28ACU-VA	Simple	24–28 mm mm	Stainless steel 304	C5-I	Select
K32ACU-VA	Simple	28–32 mm mm	Stainless steel 304	C5-I	Select
K36ACU-VA	Simple	32–36 mm mm	Stainless steel 304	C5-I	Select
K40ACU-VA	Simple	36–40 mm mm	Stainless steel 304	C5-I	Select
K44ACU-VA	Simple	40–44 mm mm	Stainless steel 304	C5-I	Select
K48ACU-VA	Simple	44–48 mm mm	Stainless steel 304	C5-I	Select
K52ACU-VA	Simple	48–52 mm mm	Stainless steel 304	C5-I	Select
K56ACU-VA	Simple	52–56 mm mm	Stainless steel 304	C5-I	Select
K12/3ACU	Triple	8–12 mm mm	Hot-dip galvanized 55 µm	C4	Select
K12ACU	Simple	8–12 mm mm	Hot-dip galvanized 55 µm	C4	Select
K16/2ACU	Double	12–16 mm mm	Hot-dip galvanized 55 µm	C4	Select
K16/3ACU	Triple	12–16 mm mm	Hot-dip galvanized 55 µm	C4	Select
K16ACU	Simple	12–16 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20/2ACU	Double	16–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K20ACU	Simple	16–20 mm mm	Hot-dip galvanized 55 µm	C4	Select
K24/2ACU	Double	20–24 mm mm	Hot-dip galvanized 55 µm	C4	Select
K24ACU	Simple	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K28/2ACU	Double	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K28/3ACU	Triple	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K28ACU	Simple	24–28 mm mm	Hot-dip galvanized 55 µm	C4	Select
K32ACU	Simple	28–32 mm mm	Hot-dip galvanized 55 µm	C4	Select
K36ACU	Simple	32–36 mm mm	Hot-dip galvanized 55 µm	C4	Select
K40/2ACU	Double	36–40 mm mm	Hot-dip galvanized 55 µm	C4	Select
K40ACU	Simple	36–40 mm mm	Hot-dip galvanized 55 µm	C4	Select
K44ACU	Simple	40–44 mm mm	Hot-dip galvanized 55 µm	C4	Select
K48ACU	Simple	44–48 mm mm	Hot-dip galvanized 55 µm	C4	Select
K52/2ACU	Double	48–52 mm mm	Hot-dip galvanized 55 µm	C4	Select
K52ACU	Simple	48–52 mm mm	Hot-dip galvanized 55 µm	C4	Select
K56ACU	Simple	52–56 mm mm	Hot-dip galvanized 55 µm	C4	Select
K60ACU	Simple	56–60 mm mm	Hot-dip galvanized 55 µm	C4	Select
K70ACU	Simple	60–70 mm mm	Hot-dip galvanized 55 µm	C4	Select
