Beam support, 300–400 mm

E No:

MP-number: 758E

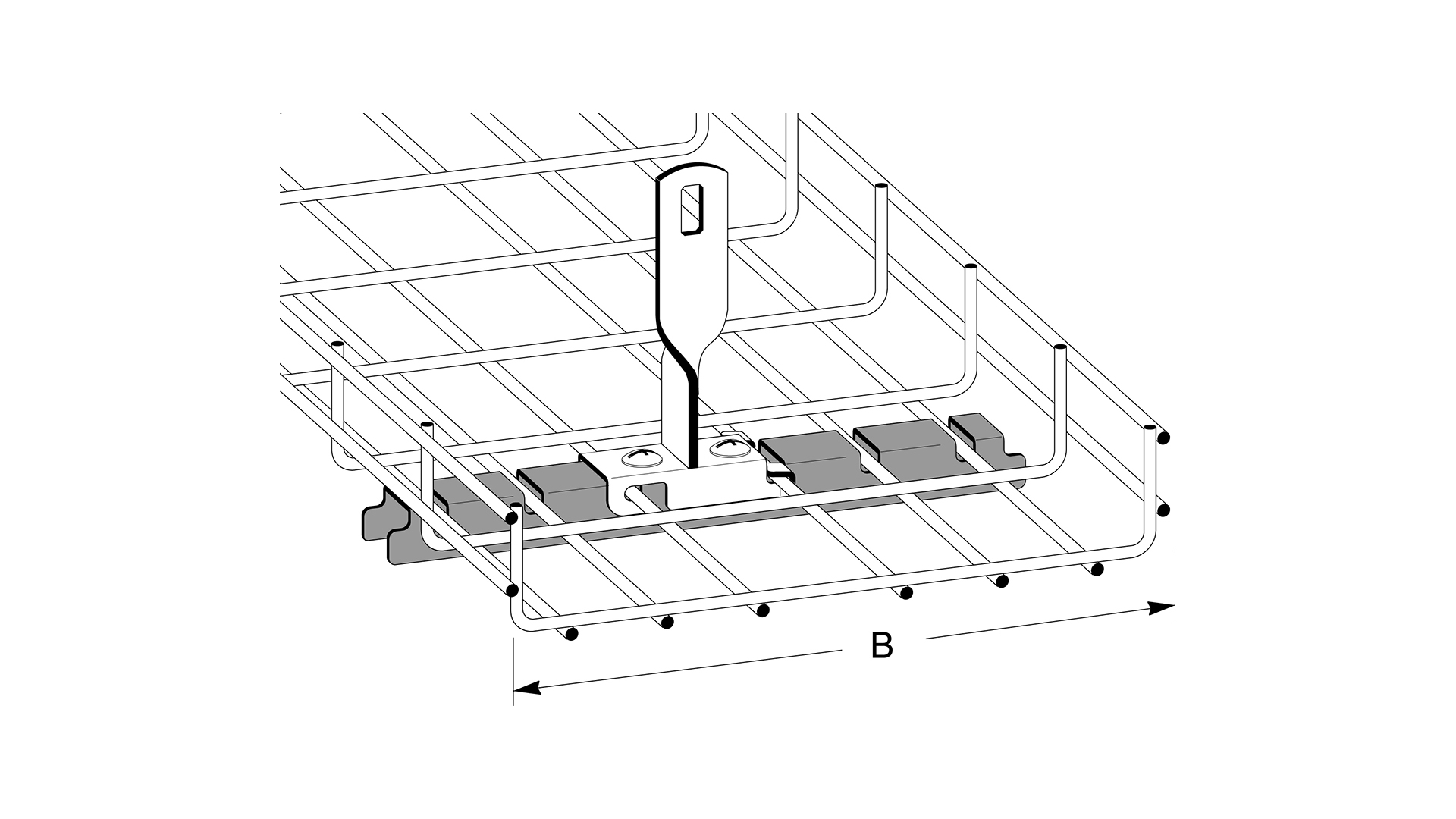

Support for wire mesh yoke used together with MP-757. The support is made of electro-galvanised steel (10 µm) and is suitable for environmental class max C1. Mainly used for 300–400 mm width wire mesh trays to prevent bending under larger loads. The support is bolted to the support yoke with assembly bolt MP-937E after the wire mesh tray has been fitted to the support yoke.

All variants All variants

Product details

MP-number 758E
EAN 7394333053011

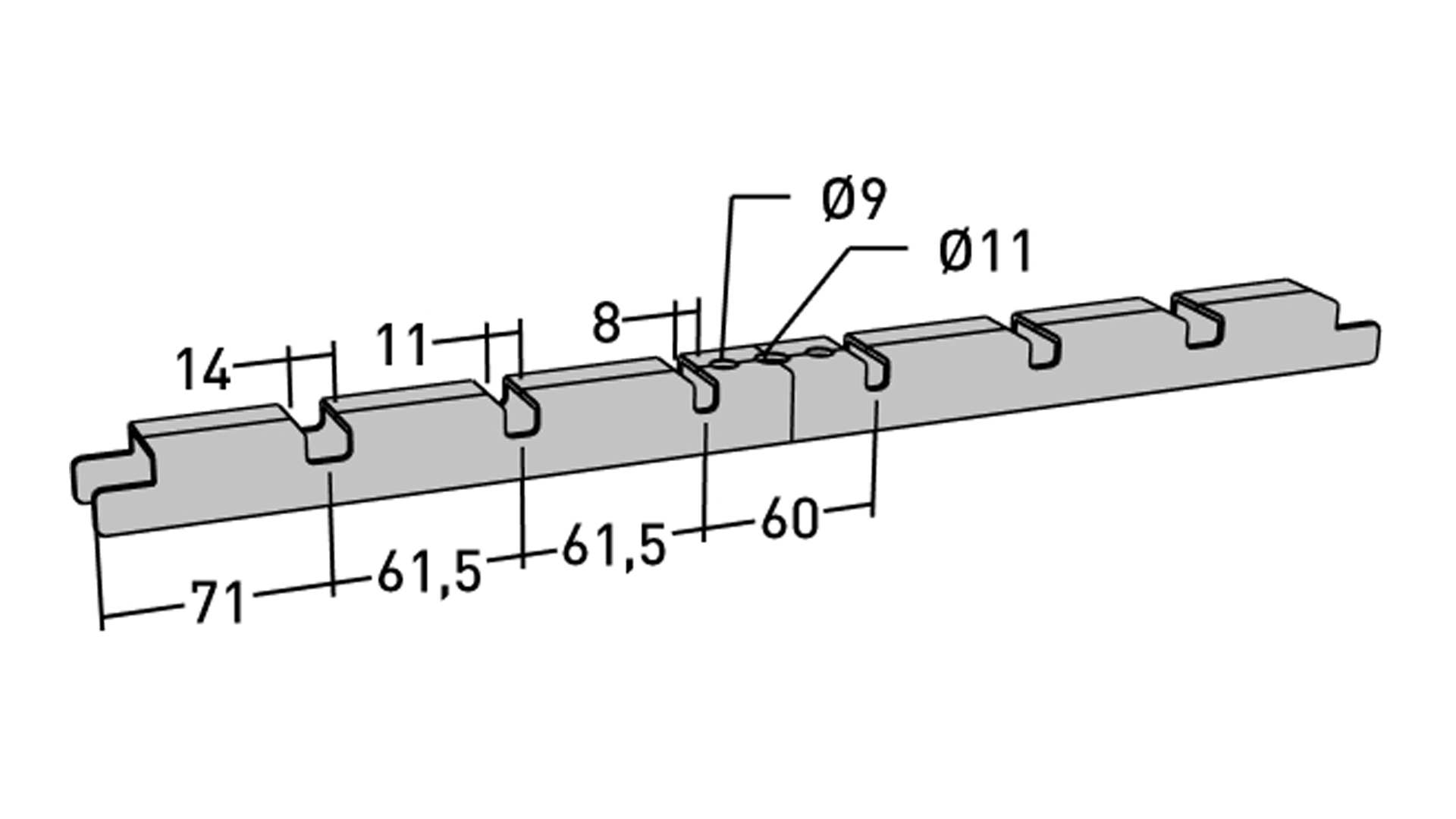

Length 250 mm
Width 31 mm
Height 23 mm
Weight 0.26 kg
Climate impact 0.697 kgCO2e
Surface treatment Electrogalvanized 10 µm
Corrosion class C1
Mounting Internal
Fits (width) 300–400 mm
Suitable for Wire ladders

Documents

Environmental data Electro-galvanized E_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Surface treatment	Color	Corrosion class	Fits (width)
758E	Electrogalvanized 10 µm		C1	300–400 mm	Selected
767E	Electrogalvanized 10 µm		C1	500–600 mm	Select
758V	Lacquered	NCS S 0500-N (white)	C2	300–400 mm	Select
767V	Lacquered	NCS S 0500-N (white)	C2	500–600 mm	Select
758R	Stainless steel 316L		C5-M	300–400 mm	Select
767R	Stainless steel 316L		C5-M	500–600 mm	Select
758Z	Hot-dip galvanized 55 µm		C4	300–400 mm	Select
767Z	Hot-dip galvanized 55 µm		C4	500–600 mm	Select
