Roof bracket for pendant rail
C4
E No:
|
MP-number: 904Z

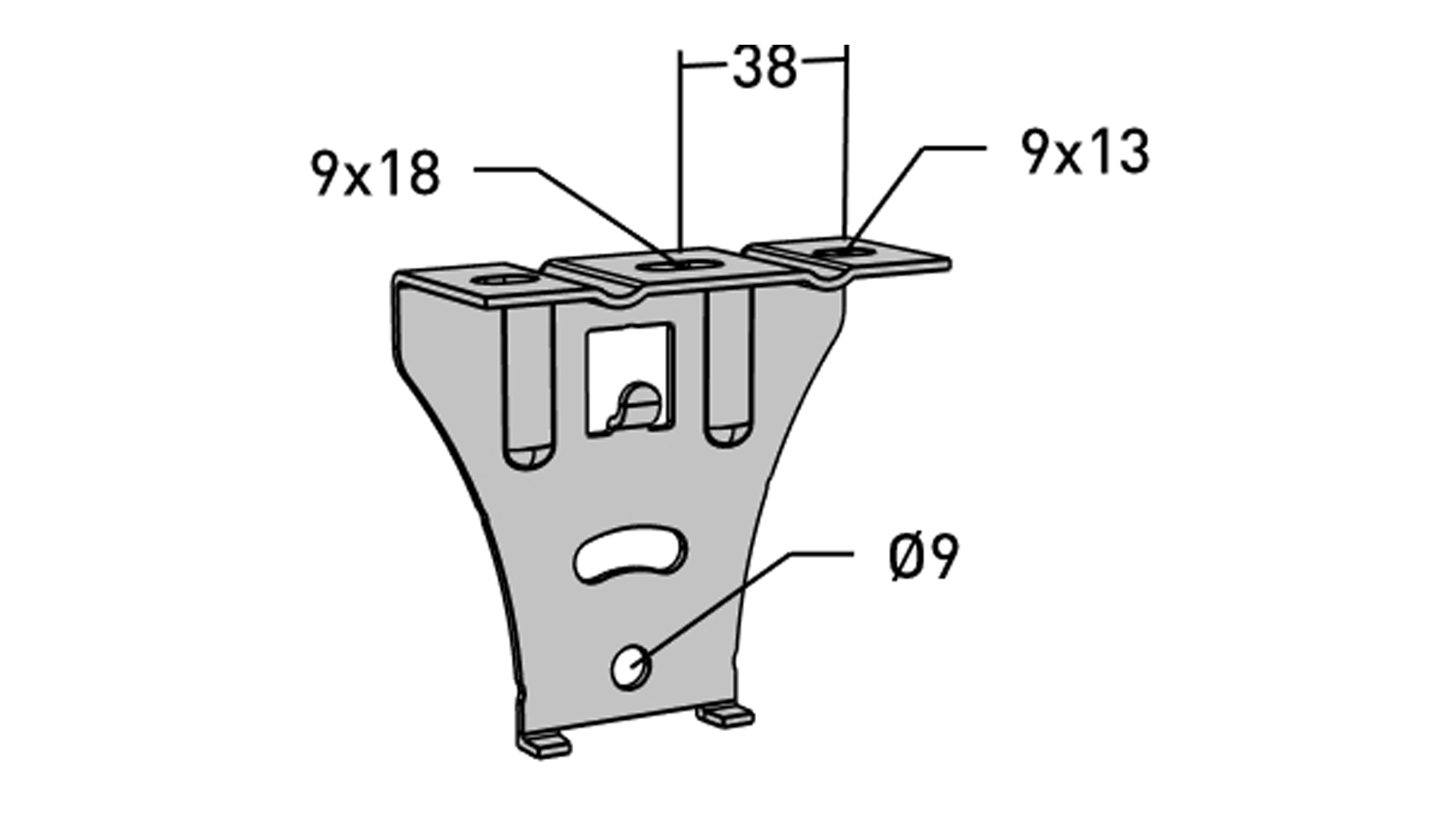

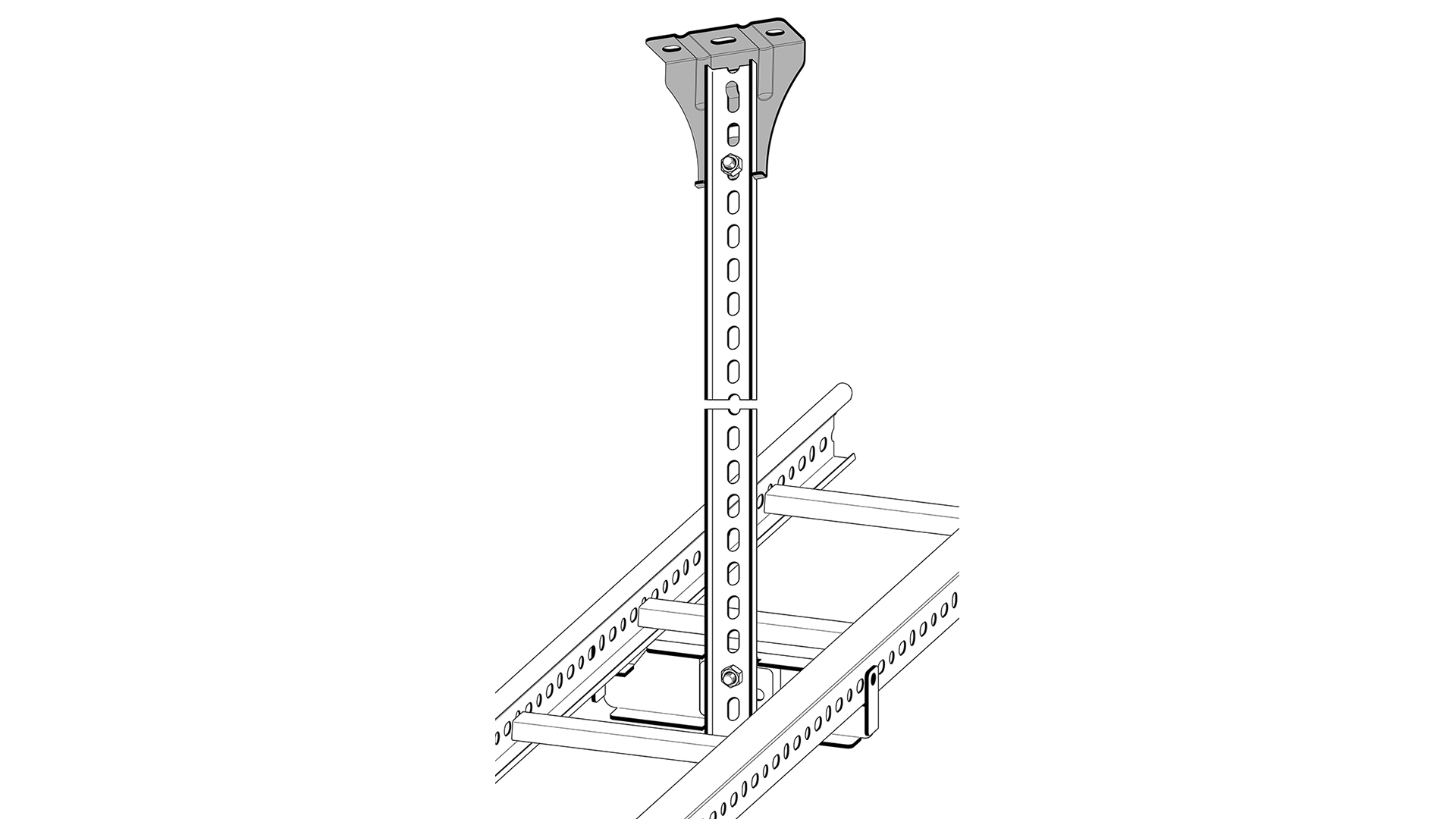

Ceiling bracket for pendant rail for mounting cable ladders, wire mesh trays and cable trays that are suspended from the ceiling. The bracket has a hook where the pendant rail can be hung up before it is fixed with bolts. For sloping ceilings, the bracket can be turned, allowing up to a 20° slope. The ceiling bracket is made of hot-dip galvanised sheet (55 µm) and is suitable for environmental class max C4. Max load 250 kg.
All variants
Product details
- MP-number 904Z
- EAN 7394333012377
- Length 99 mm
- Width 102 mm
- Height 40 mm
- Weight 0.16 kg
- Climate impact 0.396 kgCO2e
- Surface treatment Hot-dip galvanized 55 µm
- Corrosion class C4
- Suitable for Cable ladders, Cable trays, Wire ladders
Documents
Environmental data galvanized Z_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Color
Surface treatment
Corrosion class
904V
NCS S 0500-N (white)
Lacquered
C2
