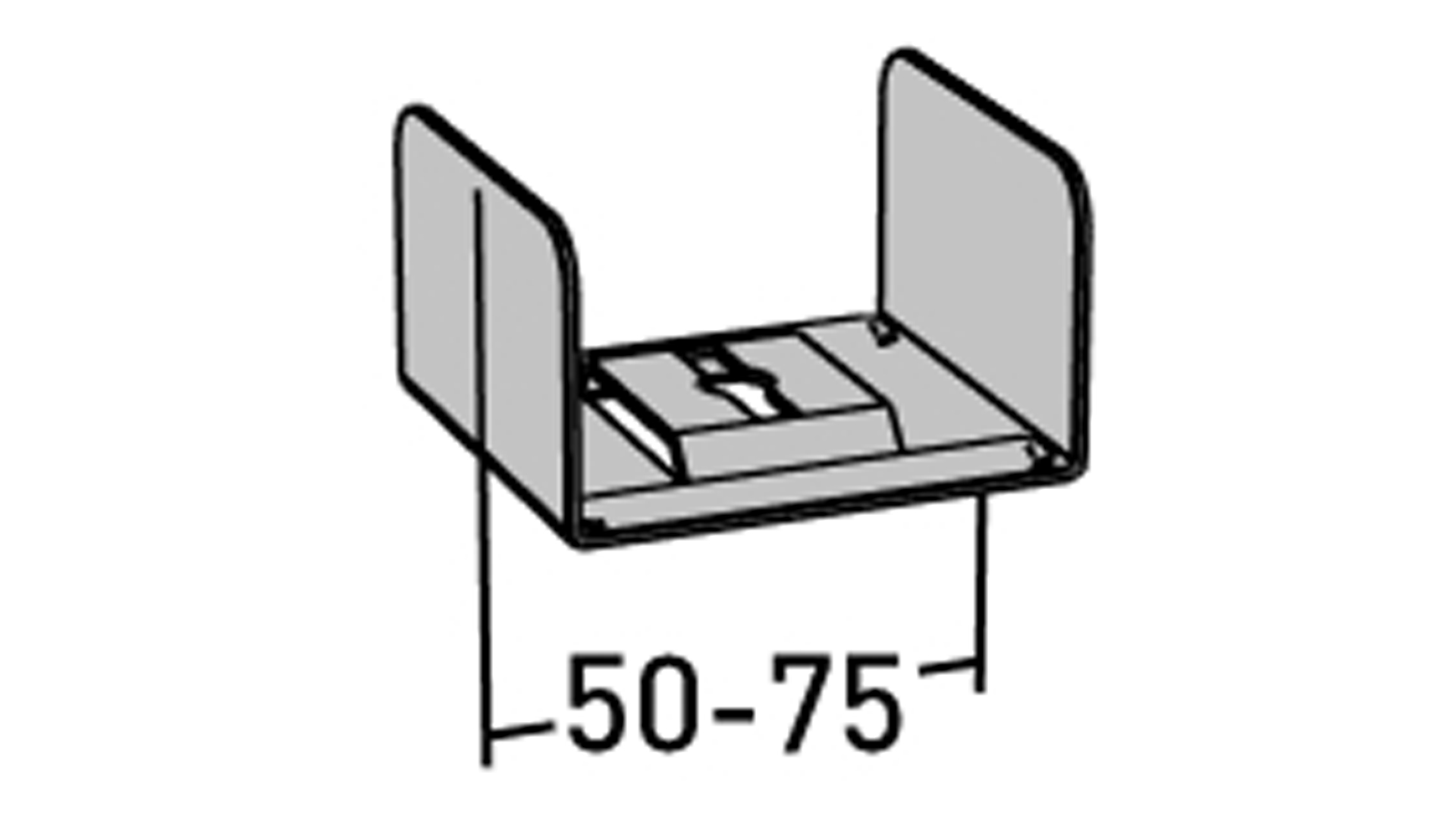

Beam hook narrow tray/rail, 50 mm
C2
E No:
|
MP-number: 596S
Support yoke for cable trays and luminaire rails. The support yoke is made of Sendzimir galvanised sheet (20 µm) and is suitable for environmental class max C2. The support yoke is pushed in from the end of the tray and can only be used for centrally suspended assembly together with a pendant bracket and a pendant rail or threaded rod. Maximum load for support yoke: 150 kg with evenly distributed load. Ultimate failure load: 1.7 times maximum load.
All variants
Product details
- MP-number 596S
- EAN 7394333120515
- Length 48 mm
- Width 65 mm
- Height 41 mm
- Weight 0.08 kg
- Climate impact 0.242 kgCO2e
- Surface treatment Pre-galvanized 20 µm
- Corrosion class C2
- Mounting Internal
- Fits (width) 50 mm
- Suitable for Cable trays
Documents
Environmental data galvanized S_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Surface treatment
Corrosion class
Fits (width)
516S
Pre-galvanized 20 µm
C2
75 mm
MP-number
E No
Surface treatment
Corrosion class
Fits (width)
596S
Pre-galvanized 20 µm
C2
50 mm
