Pendulum bracket, narrow tray
C1
E No:
|
MP-number: 932E

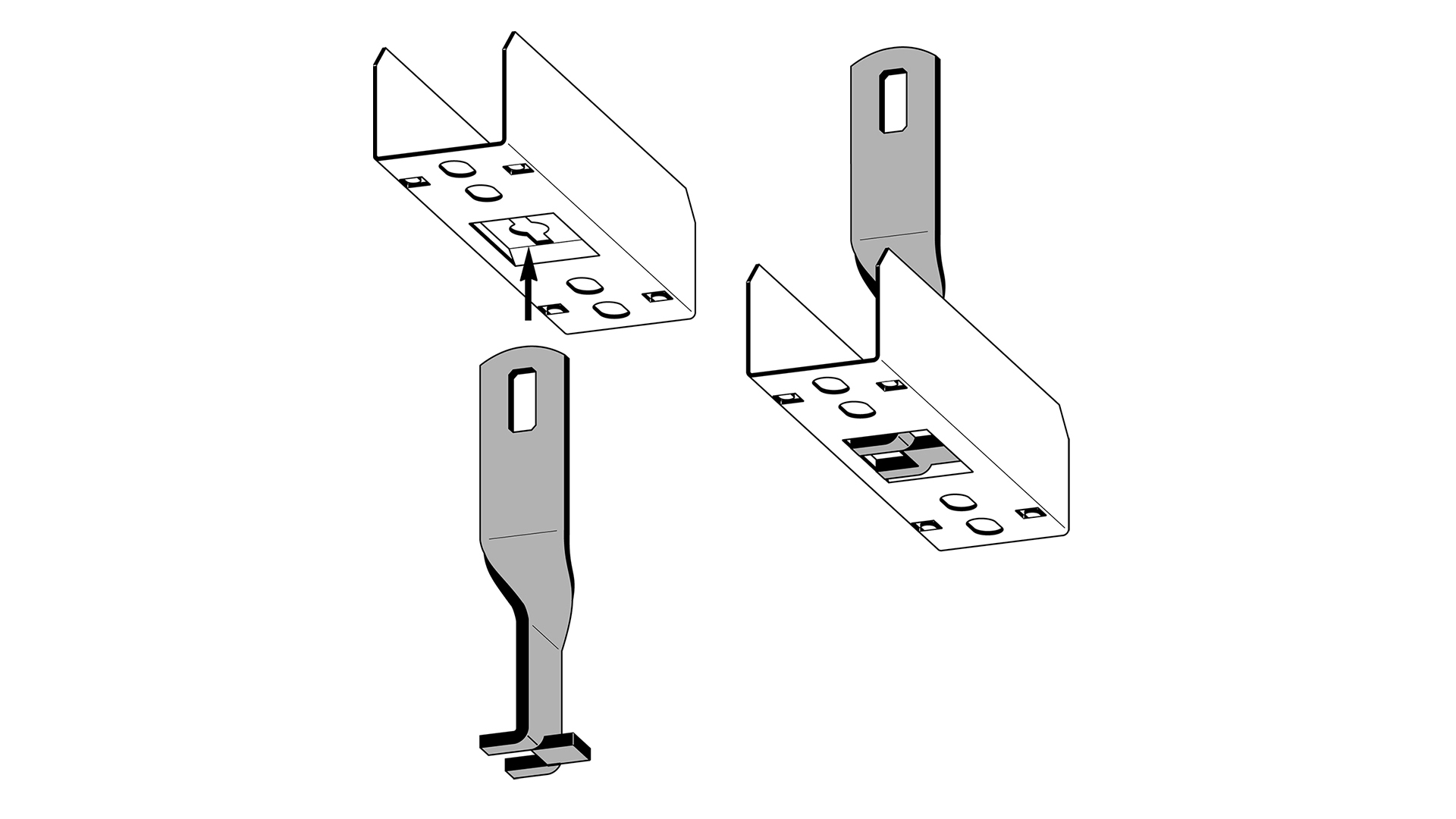

Pendant bracket for centrally suspended support yokes for cable trays and luminaire rails with a width of 50–75 mm. The pendant bracket is made of galvanised steel (10 µm) and is suitable for environmental class max C1. Install in an internal splice or support yoke by inserting the pendant bracket under the splice/support yoke and then fixing with bolt set MP-937E to a pendant rail or fitting together with threaded rod bracket MP-925E.
All variants
Product details
- MP-number 932E
- EAN 7394333116259

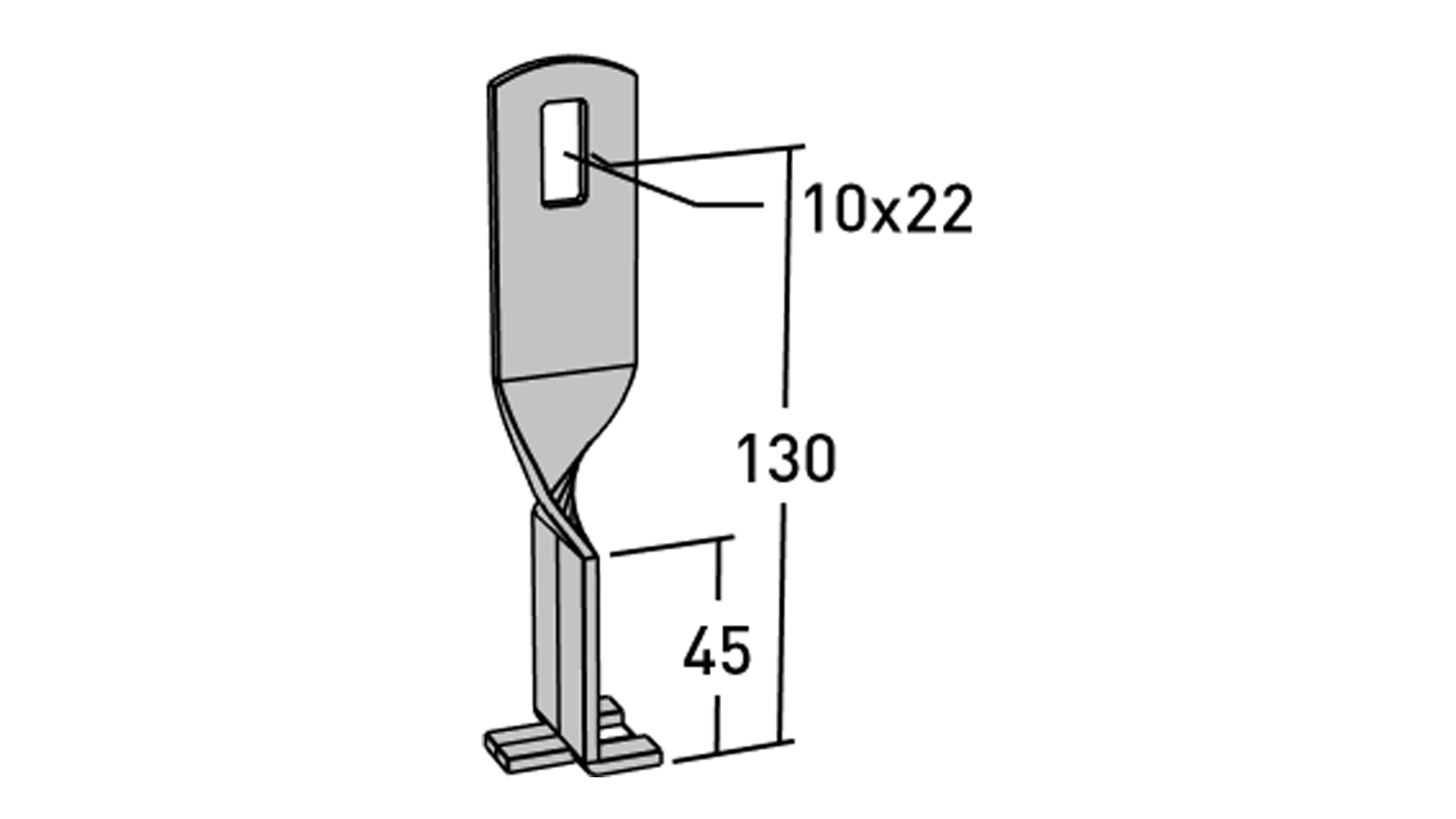

- Length 30 mm
- Width 30 mm
- Height 148 mm
- Weight 0.15 kg
- Climate impact 0.402 kgCO2e
- Surface treatment Electrogalvanized 10 µm
- Corrosion class C1
- Suitable for Cable trays
Documents
Environmental data Electro-galvanized E_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Surface treatment
Color
Corrosion class
932V
Lacquered
NCS S 0500-N (white)
C2
