Angle bracket vertical RF
C5-I
E No:
|
MP-number: 6025-33

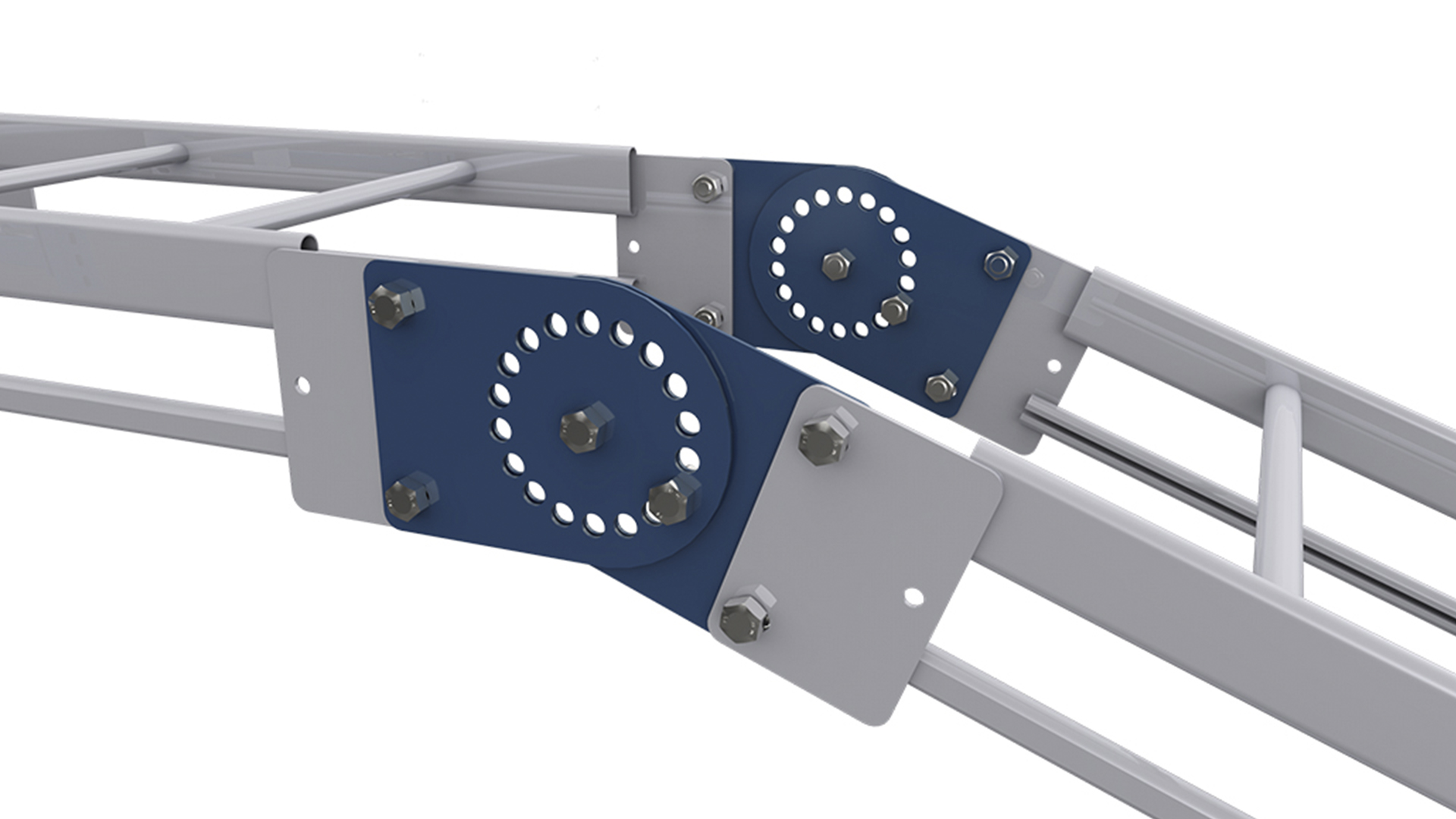

Used to create horizontal angles on stainless reinforced cable ladders. Use two angles per side of the ladder and three sets of fastening screws MP-6695 to fix and secure the joint plates on the ladder.
All variants
Product details
- MP-number 6025-33
- EAN 7394333453125

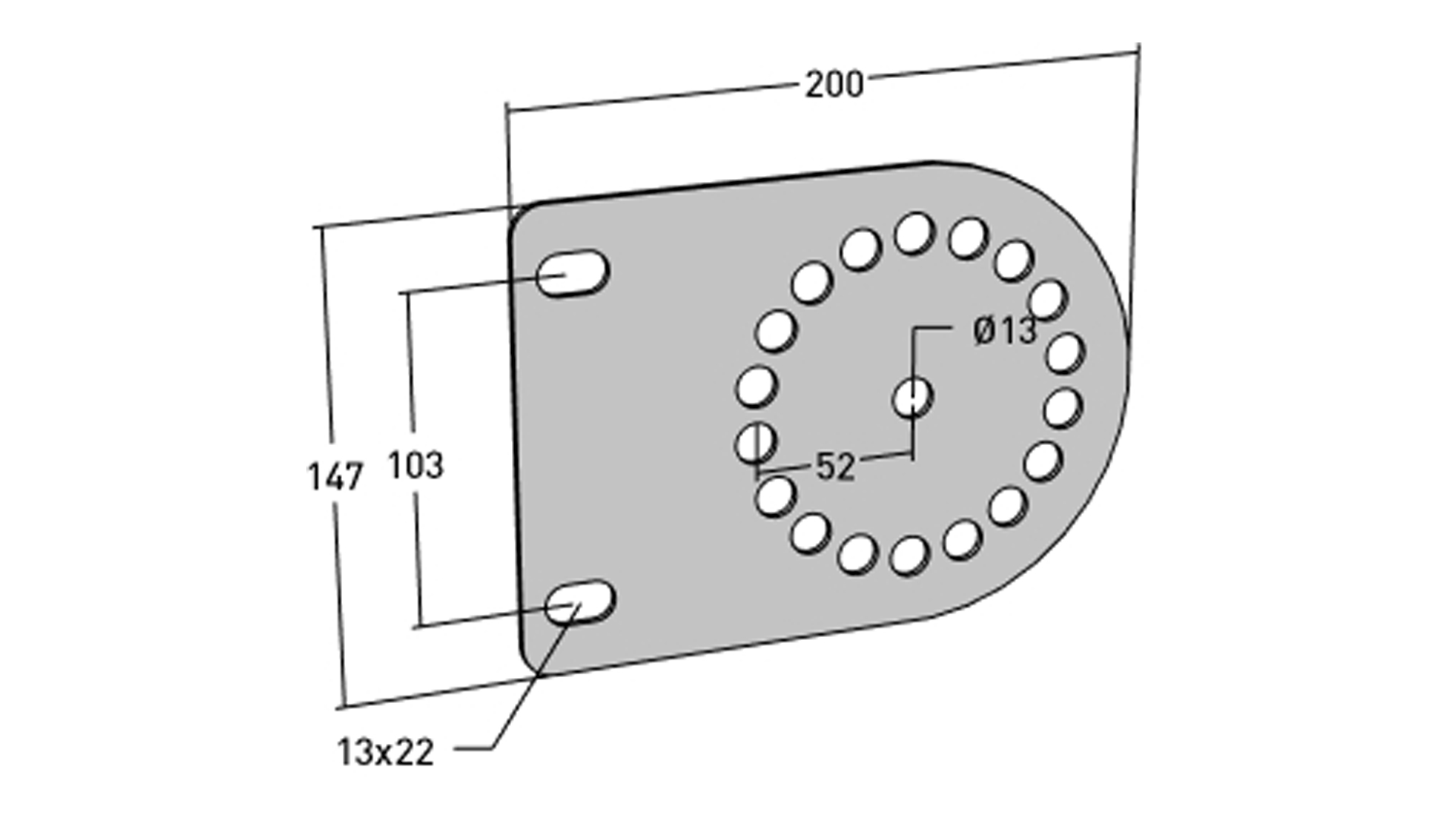

- Length 200 mm
- Width 147 mm
- Height 3 mm
- Weight 0.58 kg
- Climate impact 2.784 kgCO2e
- Surface treatment Stainless steel 304
- Corrosion class C5-I
- Mounting External
- Suitable for Cable ladders RF/SF
Documents
Environmental data art 33_en-GB.pdf
Certifications
