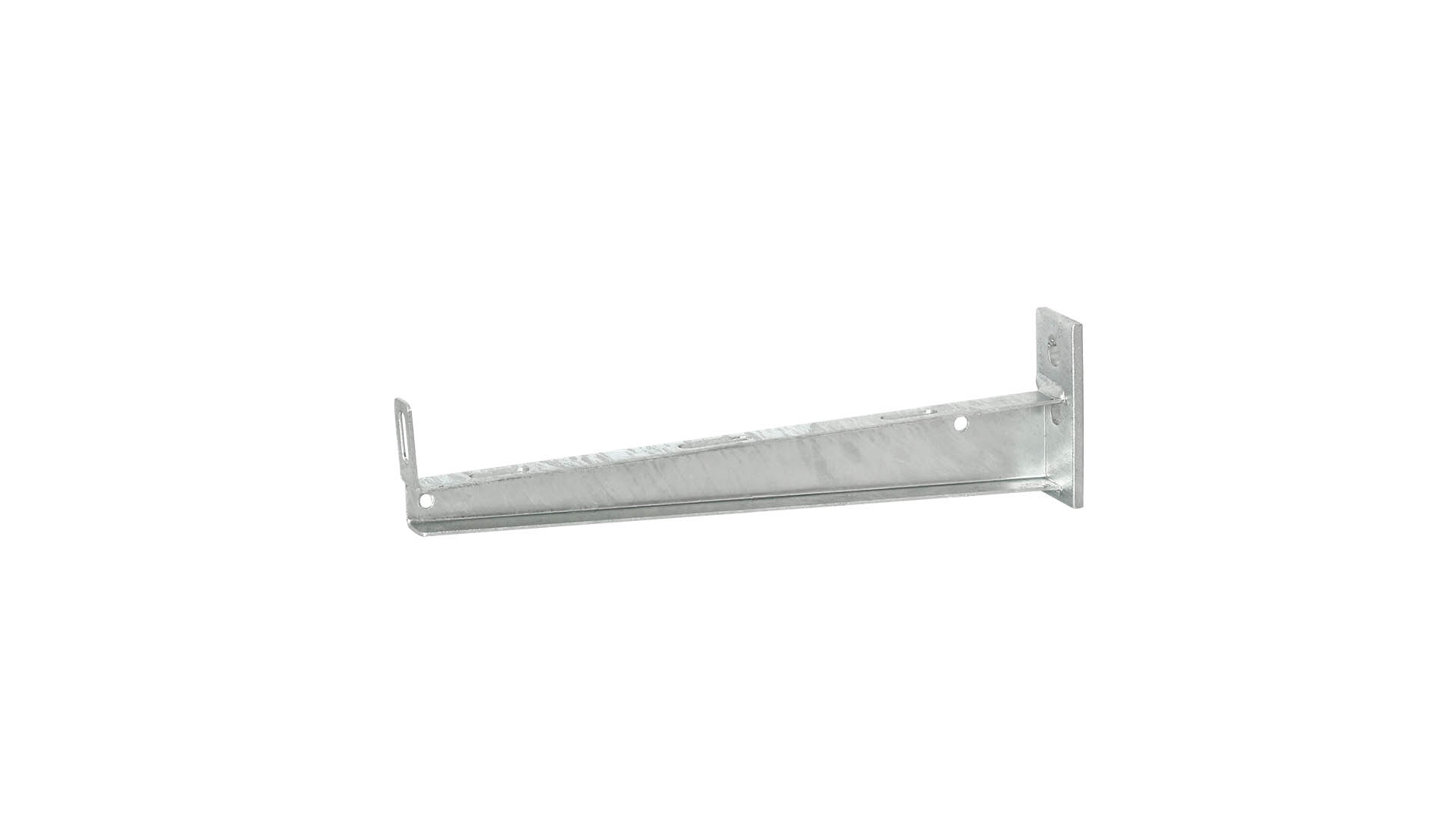

Adjustable bracket for wall bracket, 0-15°
C2
E No:
|
MP-number: 234S
For installation of cantilever arms on inclined pillars. Adjustable 0-15º. Maximum load: 185 kg.
All variants
Product details
- MP-number 234S
- EAN 7394333033785
- Length 135 mm
- Width 59 mm
- Height 165 mm
- Weight 1.35 kg
- Climate impact 3.632 kgCO2e
- Material/surface treatment Pre-galvanized 20 µm
- Corrosivity class C2
- Max load 185 kg
- Suitable for Cable ladders, Cable trays, Wire ladders
Documents
Environmental data galvanized S_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Max load
Material/surface treatment
Corrosivity class
234S
185 kg
Pre-galvanized 20 µm
C2
