Wall channel TB 1210, 3 m, white
E No:
|
MP-number: TB1210-3

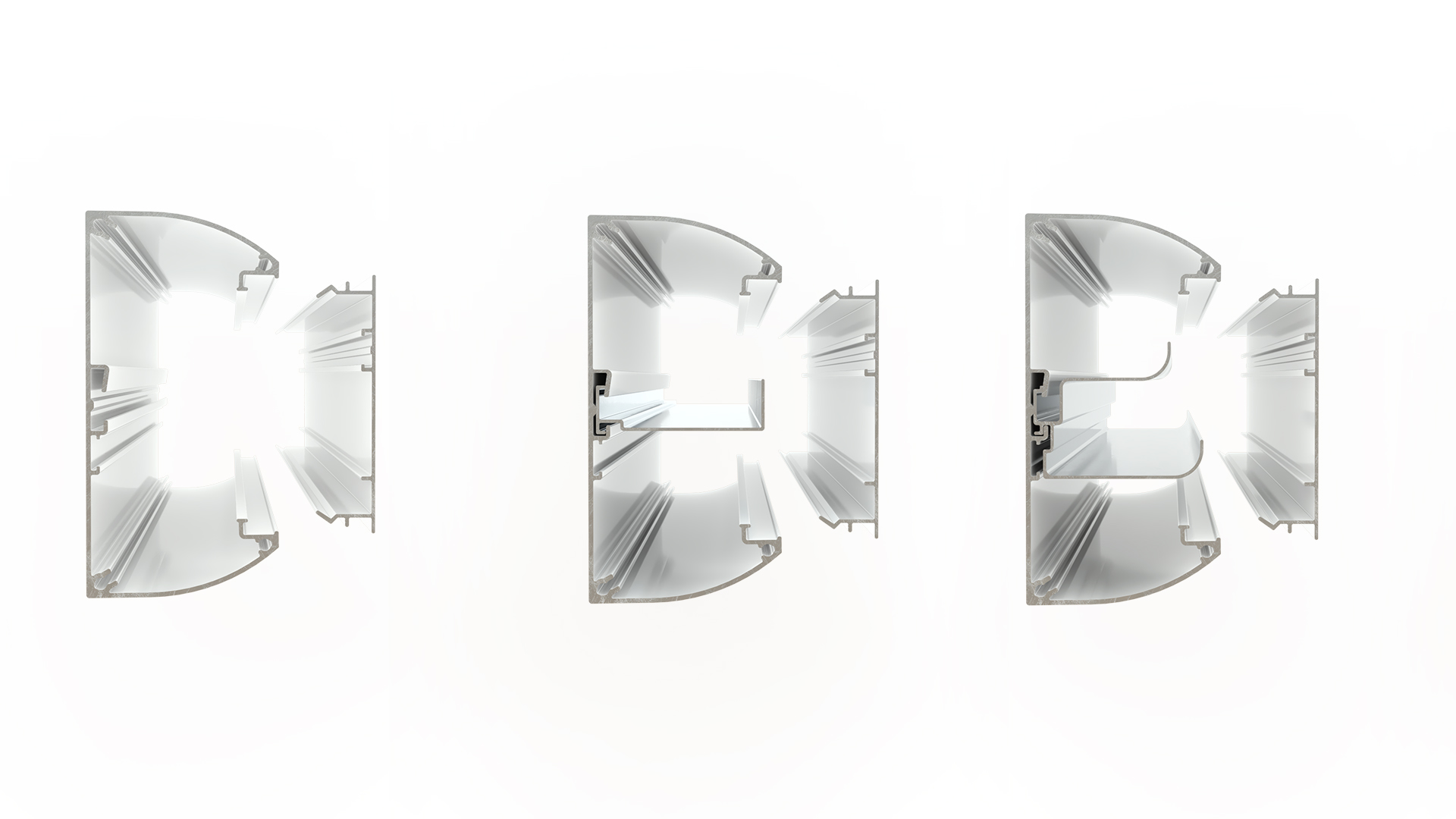

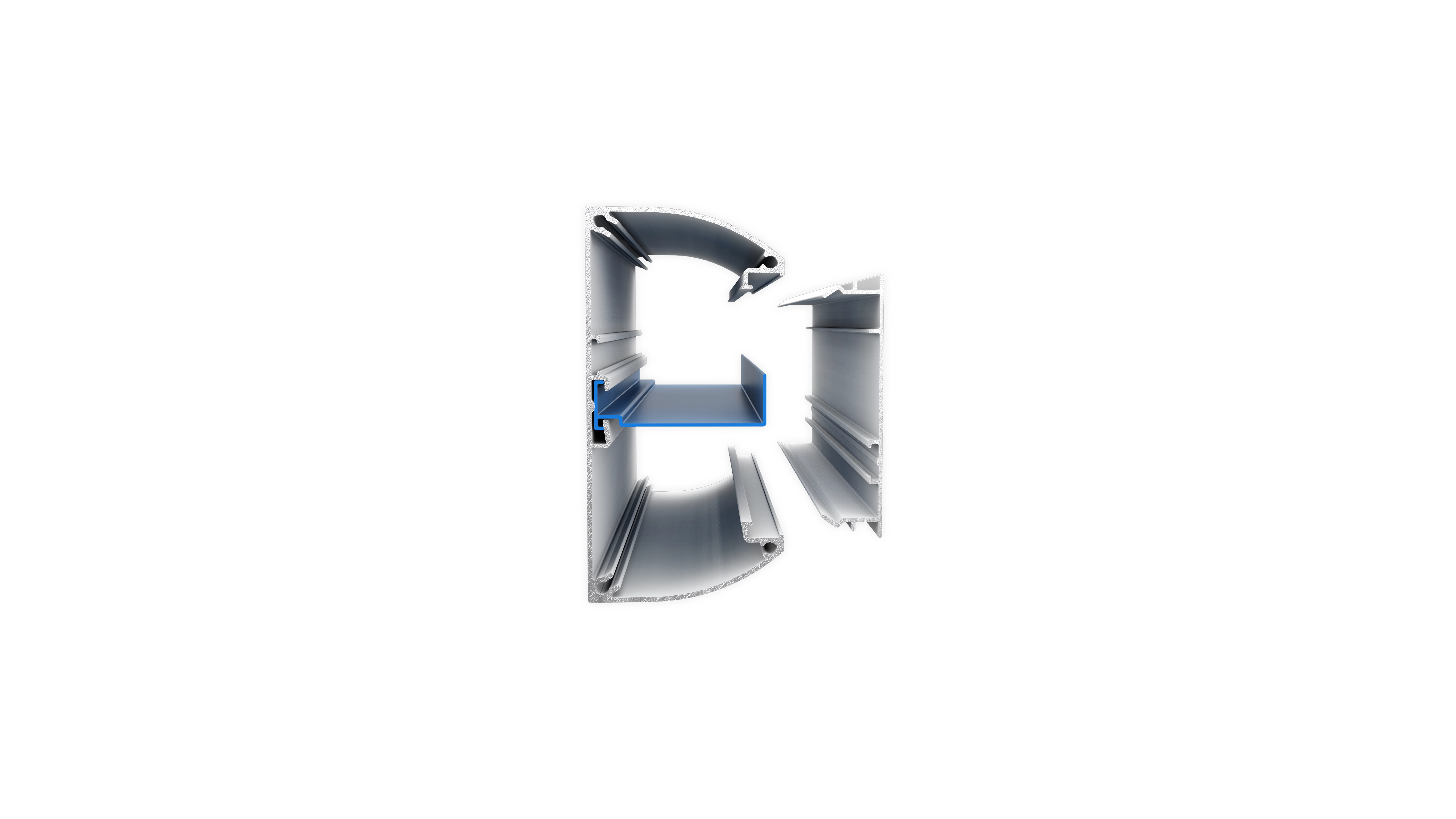

Wall trunking - white, length: 3 m with 80 mm opening for installation at e.g. door frames or black boards. The cable area can be divided into sections with an intermediate shelf. There are slots in the trunking for earthing clamp TBM 1. This trunking cannot be installed with the cantilever arm. The back is slotted for easier installation, c-c measurement 578 mm.
All variants
Product details
- MP-number TB1210-3
- EAN 7394333403342
- Length 3000 mm
- Width 60 mm
- Height 120 mm
- Weight 4 kg
- Climate impact 17.04 kgCO2e
- Surface treatment Painted aluminum
- Color RAL 9010 (white)
- Front 80 mm
- Suitable for Window sill channels
- Model TB12
Documents
Env data Channels Alu and varnish_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
