Wall bracket mini

E No:

MP-number: 734S

Wall bracket for hanging wire mesh trays horizontally, vertically or on edge. The bracket is made of Sendzimir galvanised sheet (20 µm) and is suitable for environmental class max C2. When mounting as a cantilever arm, it is mainly intended for widths 55 and 75 mm. To lock, simply bend the tongues around the rungs of the ladder.

All variants All variants

Product details

MP-number 734S
EAN 7394333056180
Length 23 mm
Width 58 mm
Height 53 mm
Weight 0.06 kg
Climate impact per unit 0.161 kgCO2e
Surface treatment Sendzimir galvanized 20 µm
Corrosion class C2
Fits (width) 55–75 mm
Mounting External
Suitable for Wire ladders

Documents

Environmental data galvanized S_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Fits (width)	Color	Surface treatment	Corrosion class

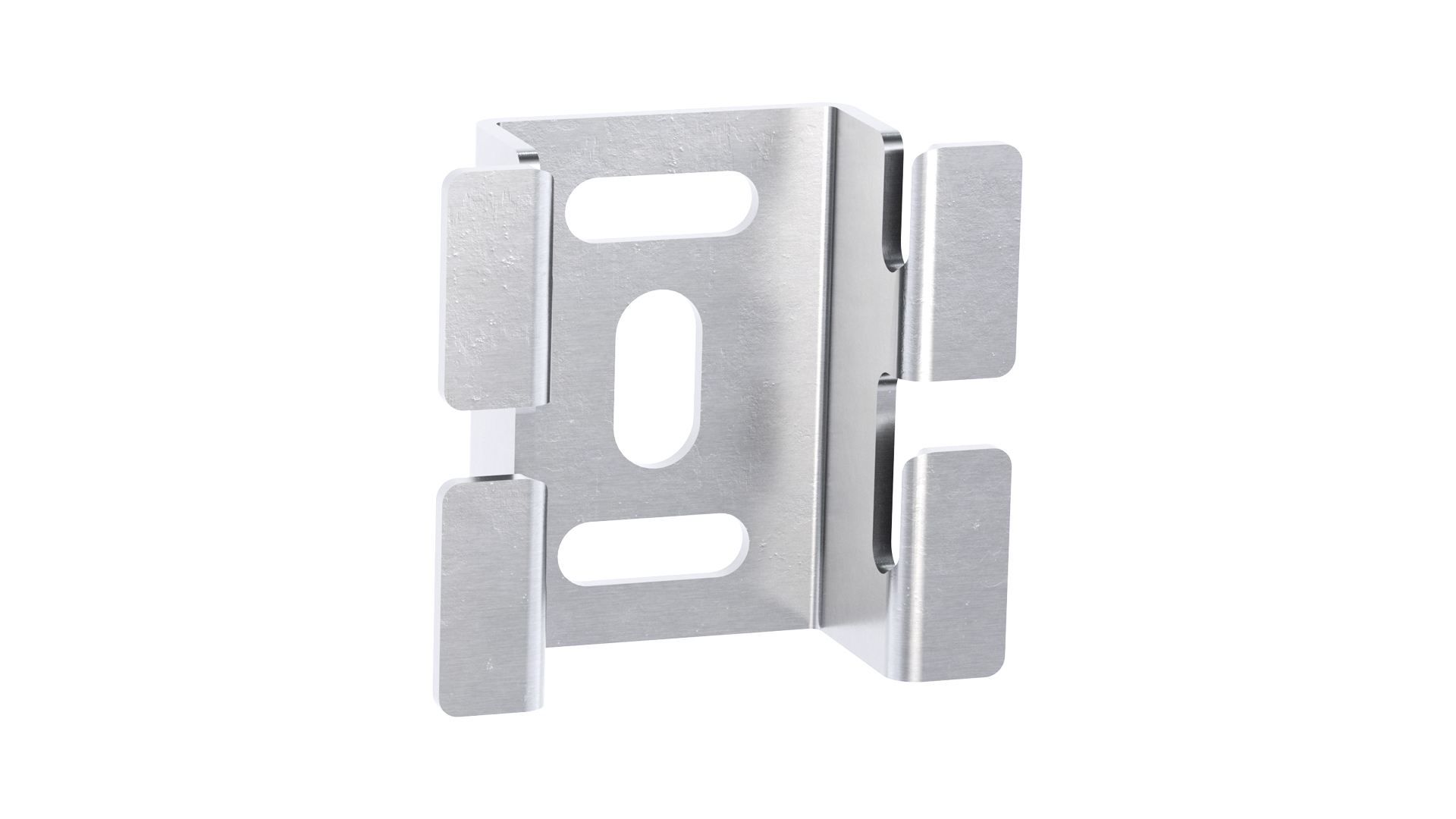

734S	55–75 mm		Sendzimir galvanized 20 µm	C2	Selected

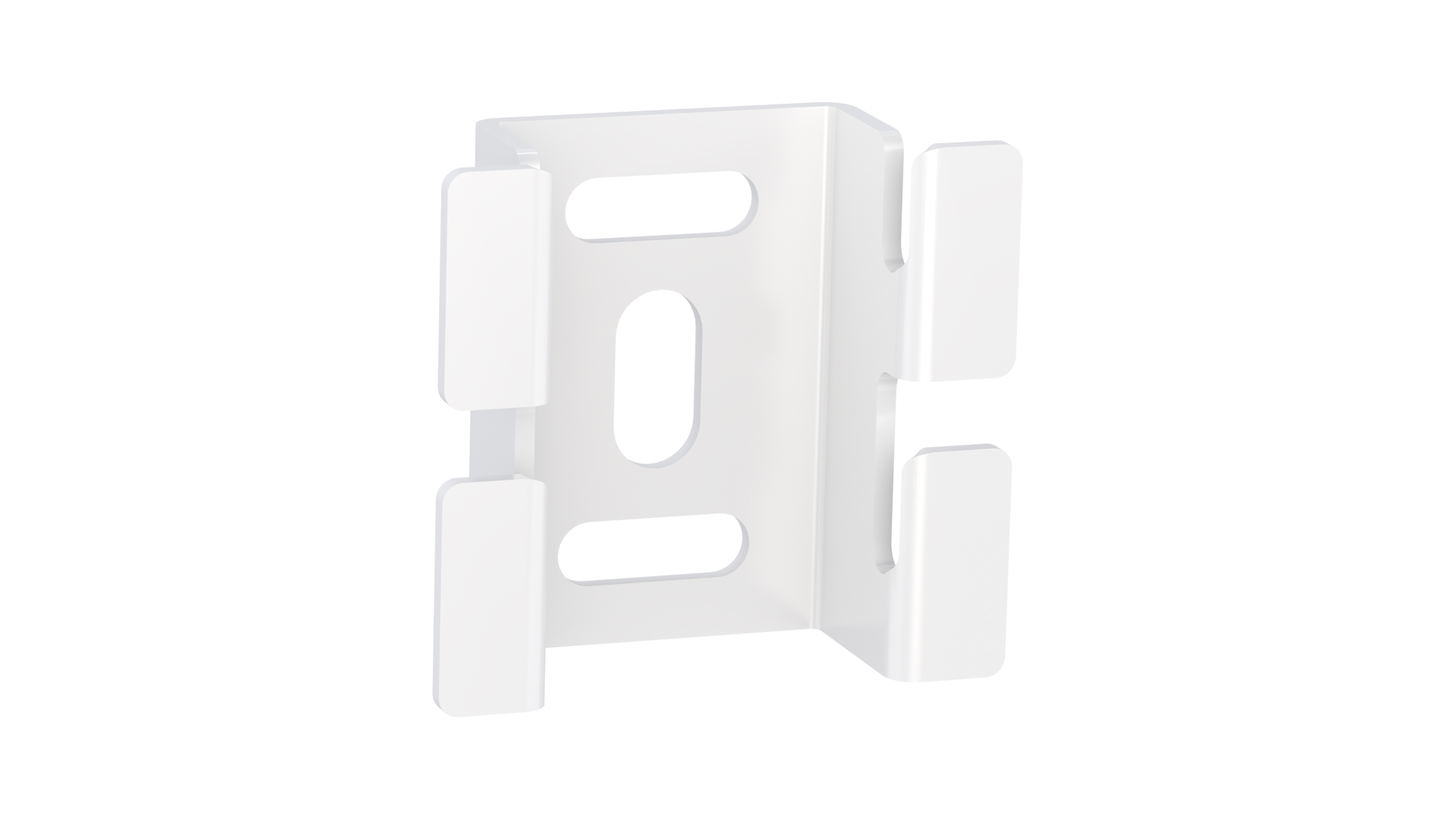

734V	55–75 mm	NCS S 0500-N (white)	Lacquered	C2	Select

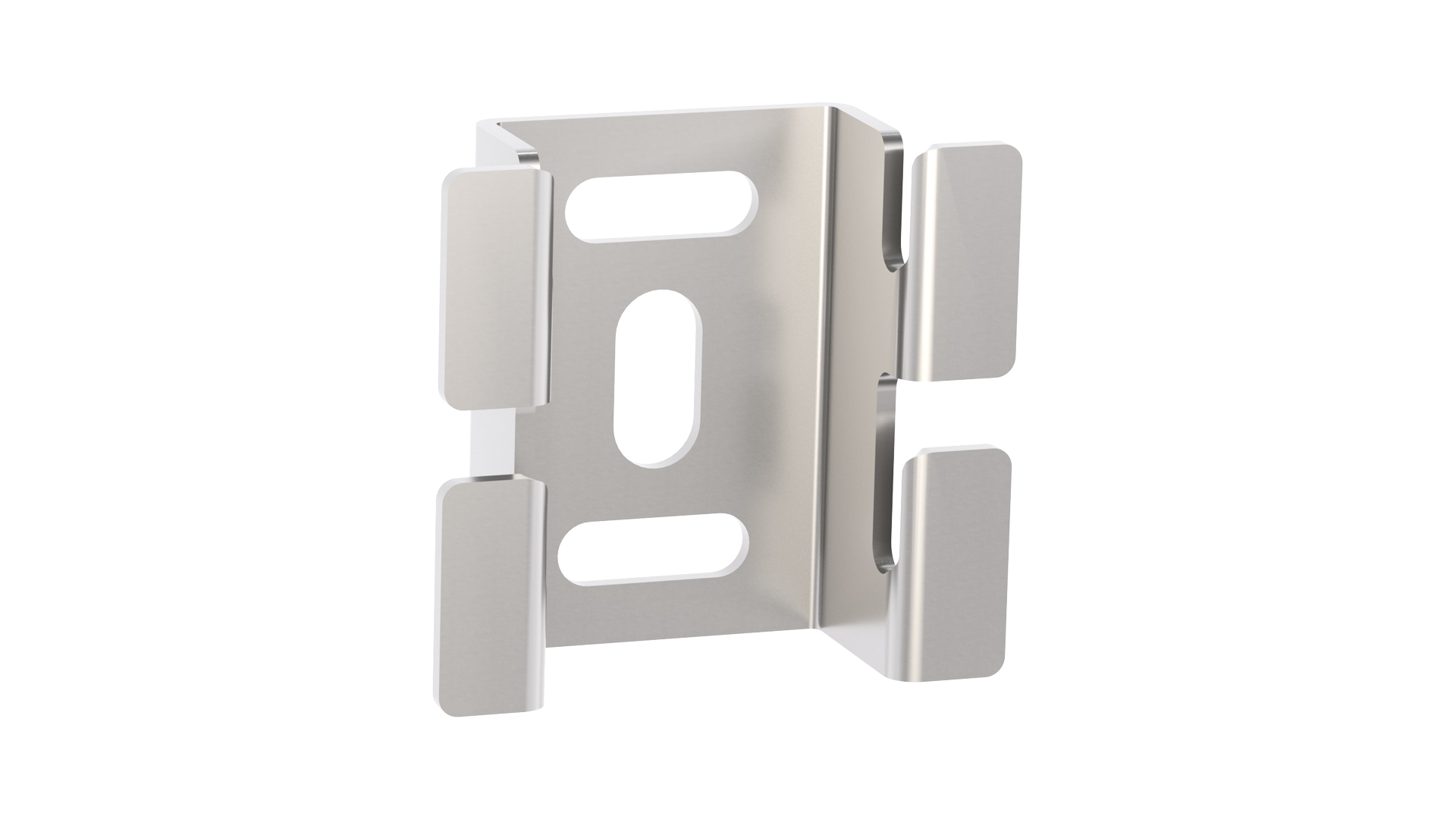

734R	55–75 mm		Stainless steel 316L	C5-M	Select
734Z	55–75 mm		Hot-dip galvanized 55 µm	C4	Select
