Wall bracket for wire mesh tray
C4
E No:
|
MP-number: 735Z

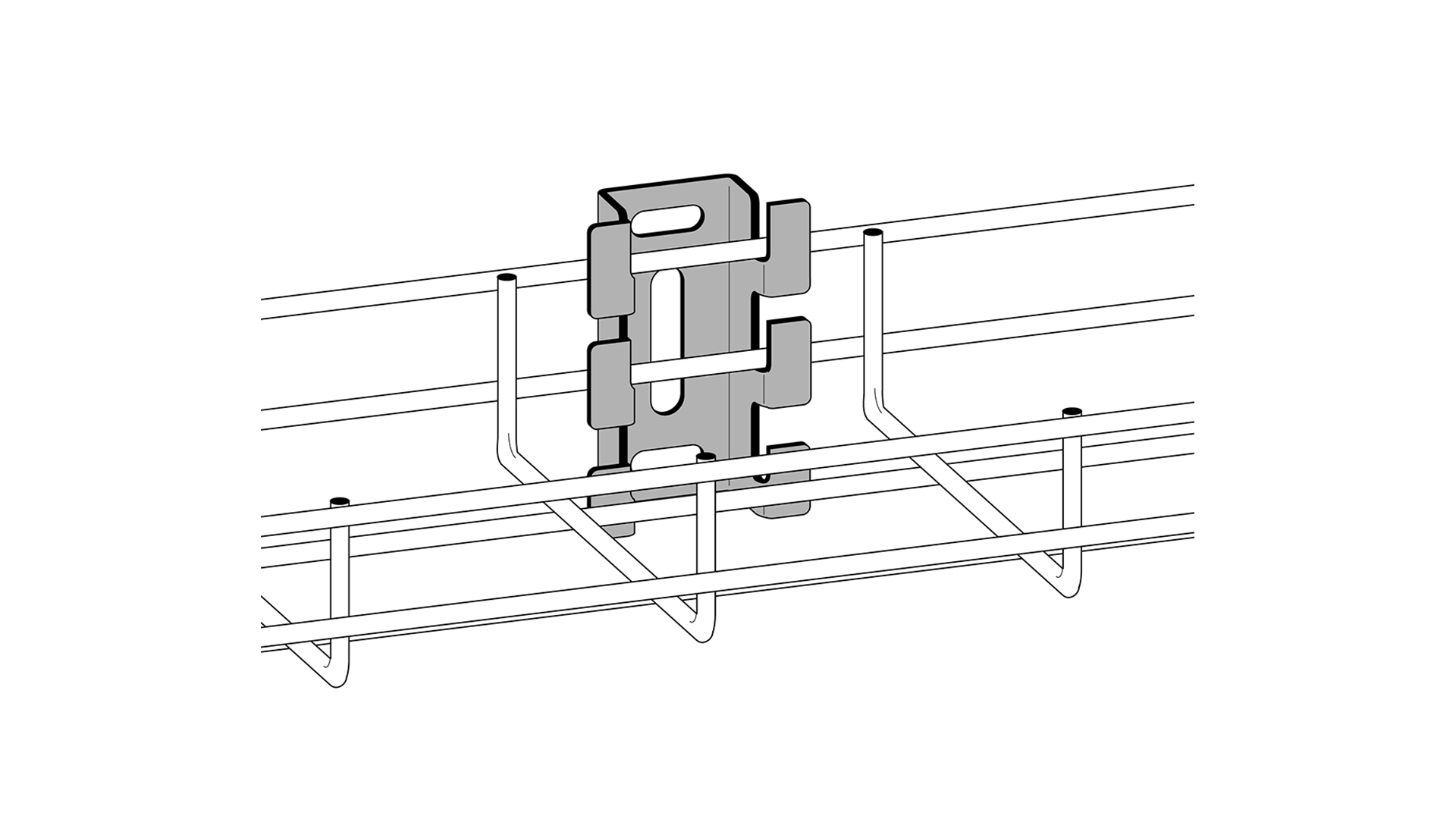

Wall bracket for hanging wire mesh trays horizontally, vertically or on edge. The bracket is made of hot-dip galvanised sheet (55 µm) and is suitable for environmental class max C4. When mounting as a cantilever arm, it is mainly intended for widths 75 and 120 mm. To lock, simply bend the tongues around the rungs of the ladder.
All variants
Product details

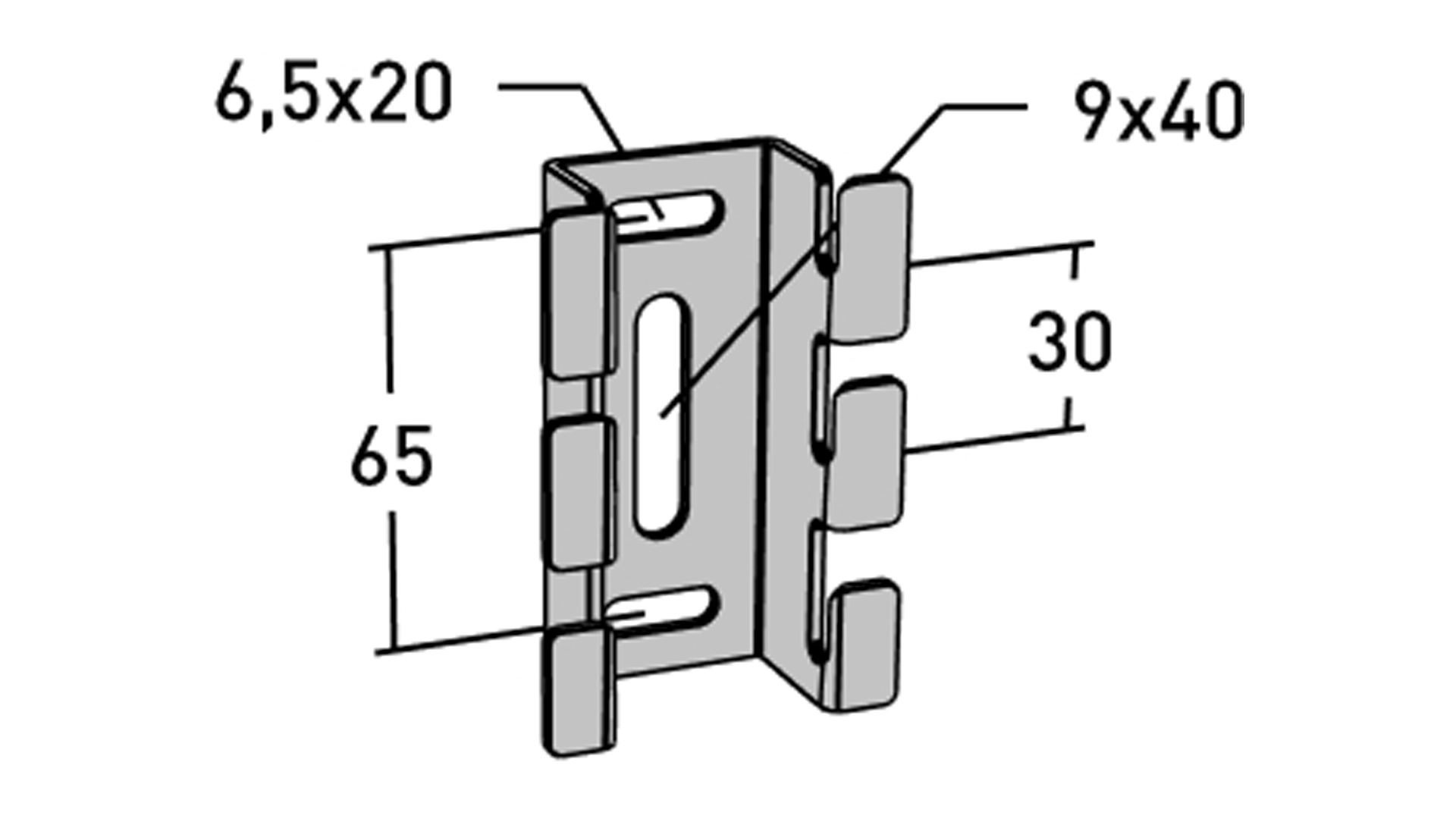

- MP-number 735Z
- EAN 7394333056289
- Length 28 mm
- Width 57 mm
- Height 85 mm
- Weight 0.09 kg
- Climate impact 0.255 kgCO2e
- Surface treatment Hot-dip galvanized 55 µm
- Corrosion class C4
- Mounting External
- Suitable for Wire ladders
Documents
Environmental data galvanized Z_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Color
Surface treatment
Corrosion class
735V
NCS S 0500-N (white)
Lacquered
C2
