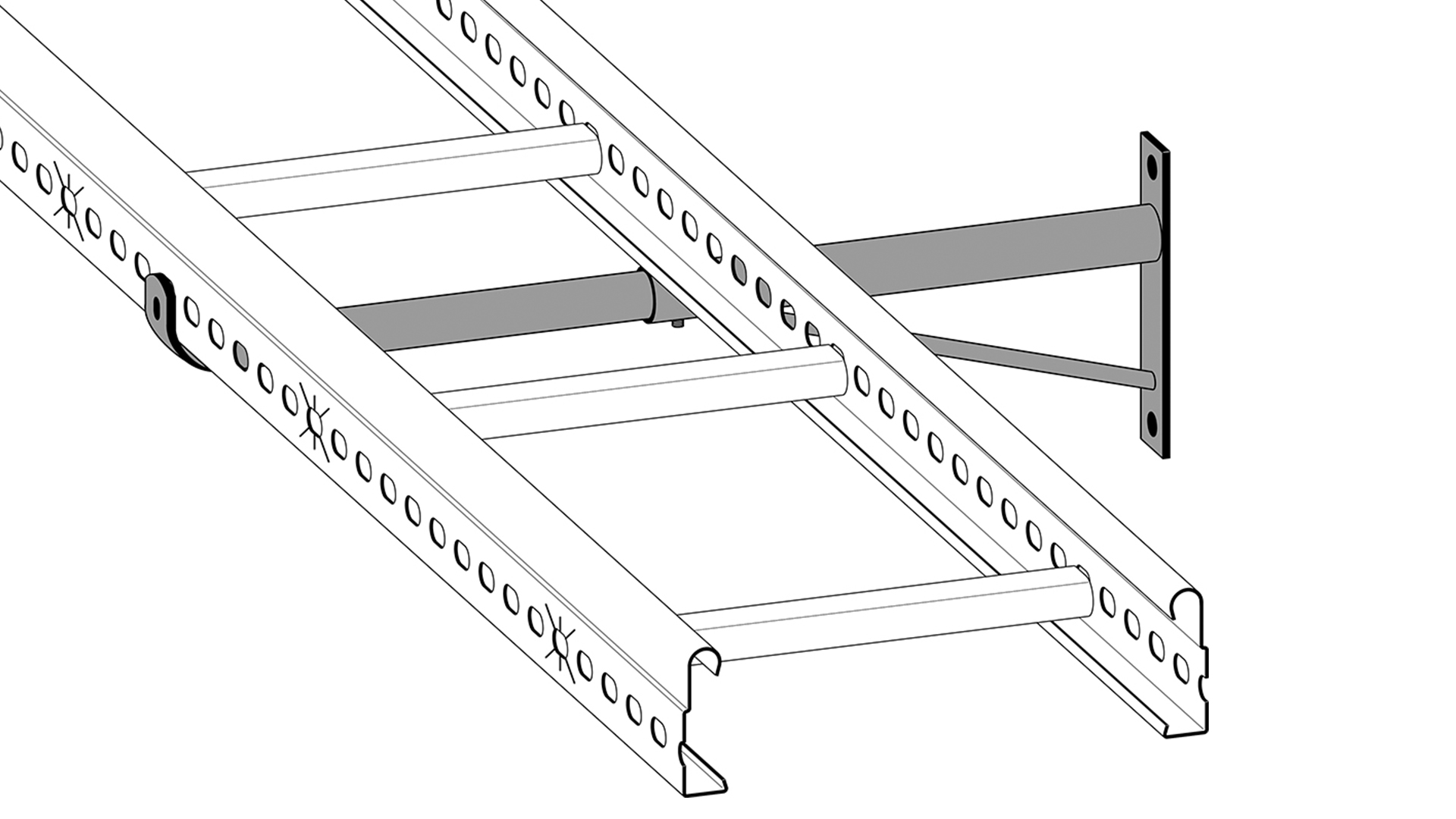

Wall bracket adjustable, 850–1100 mm

C4

E No:

|

MP-number: 179Z

Adjustable cantilever that is locked with a hex key 3 mm. Max load: min position 300 kg. Max load: max position 125 kg. Ultimate failure load: greater than or equal to 1.7 times the maximum load.
All variants

Product details

  • MP-number 179Z
  • EAN 7394333005393
  • Length 810 mm
  • Width 35 mm
  • Height 280 mm
  • Weight 3 kg
  • Climate impact 8.49 kgCO2e
  • Material/surface treatment Hot-dip galvanized 55 µm
  • Corrosivity class C4
  • Fits (width) 850–1100 mm
  • Mounting External
  • Suitable for Cable ladders

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Fits (width)

Material/surface treatment

Corrosivity class

178Z

550–850 mm

Hot-dip galvanized 55 µm

C4

Select

MP-number

E No

Fits (width)

Material/surface treatment

Corrosivity class

179Z

850–1100 mm

Hot-dip galvanized 55 µm

C4

Selected
