Supporting tray joint – centre suspension, 50 mm
C2
E No:
|
MP-number: 396S

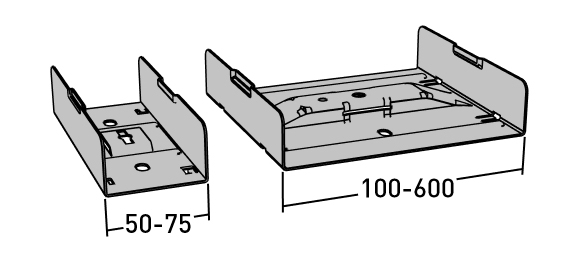

Splice for cable tray and luminaire rail for central or side suspended mounting. Made of Sendzimir galvanised sheet (20 µm) and suitable for environmental class max C2. The splice can be locked with locking clip MP-906S. The splice is inserted into the end of the tray and supplemented with a pendant bracket or support yoke. Maximum load for the support yoke in the splice: 150 kg with an evenly distributed load. Ultimate failure load: 1.7 times maximum load.
All variants
Product details
- MP-number 396S
- EAN 7394333123943
- Length 47 mm
- Width 180 mm
- Height 42 mm
- Weight 0.21 kg
- Climate impact 0.565 kgCO2e
- Surface treatment Pre-galvanized 20 µm
- Corrosion class C2
- Mounting Internal
- Suitable for Cable trays
Documents
Environmental data galvanized S_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Surface treatment
Corrosion class
Mounting
314S
Pre-galvanized 20 µm
C2
Internal
MP-number
E No
Surface treatment
Corrosion class
Mounting
396S
Pre-galvanized 20 µm
C2
Internal
