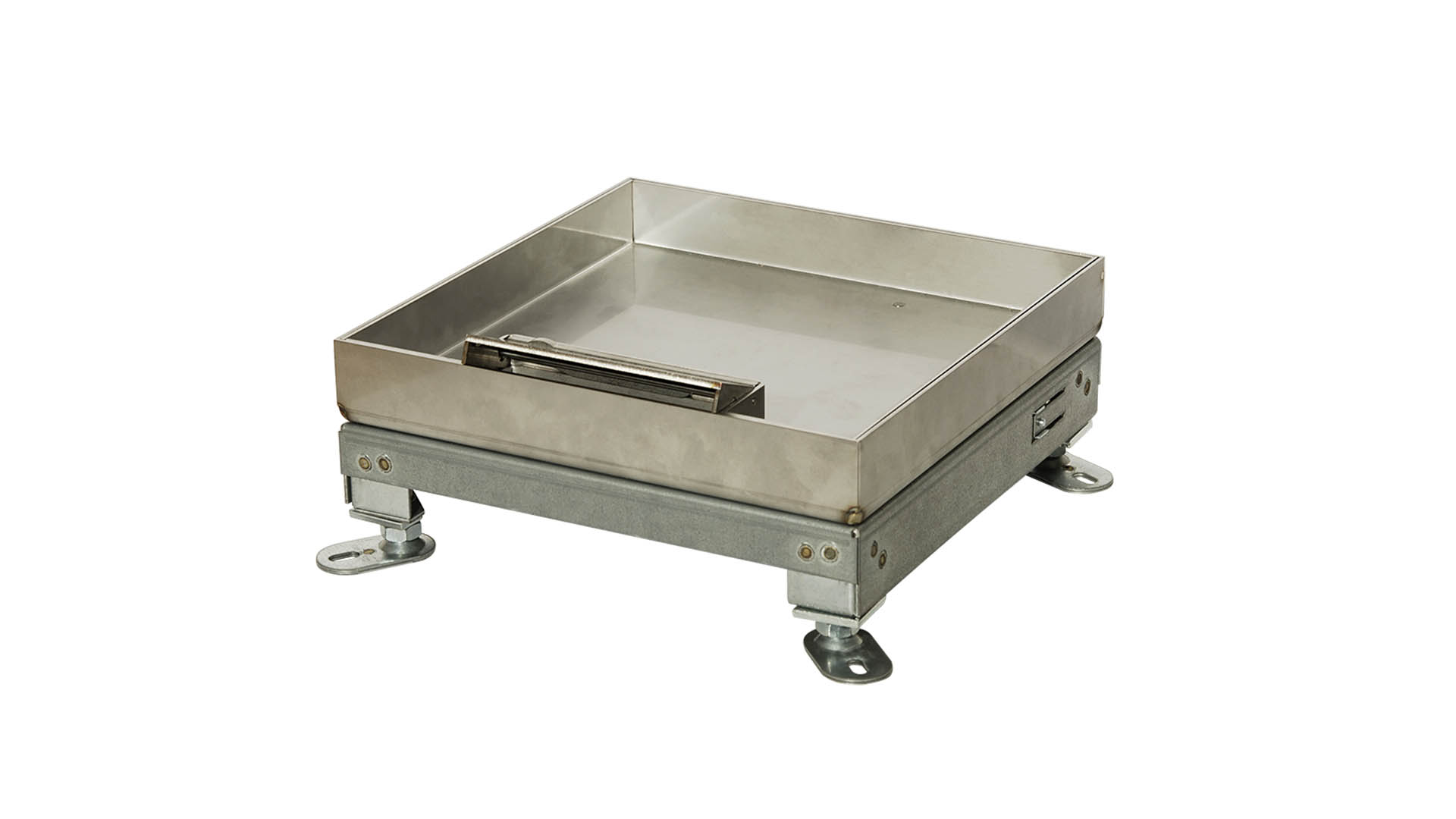

Stainless steel cover with cable outlet, 261x261 mm
E No:
|
MP-number: UEKD 35-V E
Stainless steel cover for floor box for dry cleaned areas. Supplemented with assembly frame UNE 260V-30S. Maximum load on cover: 200 kg. For a maximum number of 12 outlet sockets. Min. height including assembly frame 105 mm. Filling depth 32 mm.
All variants
Product details
- MP-number UEKD 35-V E
- EAN 4040918154248
- Length 261 mm
- Width 261 mm
- Height 39 mm
- Weight 2.2 kg
- Surface treatment Stainless
- Mounting opening 261x261 mm
- Units 12 st
- Max load 200 kg
- Filling depth lid 32 mm
- Suitable for Floor boxes
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Units
Filling depth lid
Mounting opening
Max load
UEKD 35-V E
12 st
32 mm
261x261 mm
200 kg
