Roof bracket, threaded rod

C2

E No:

|

MP-number: 920V

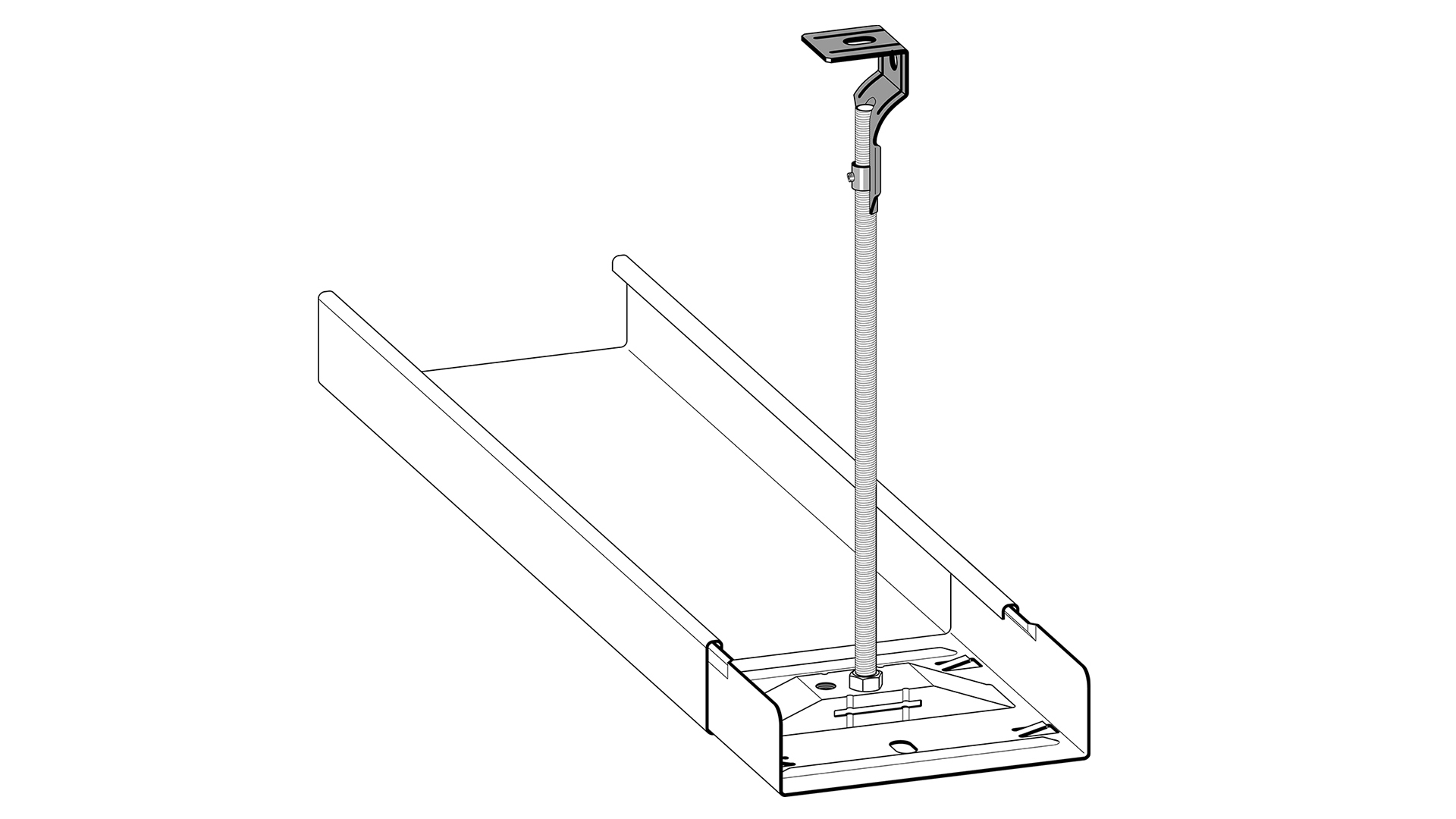

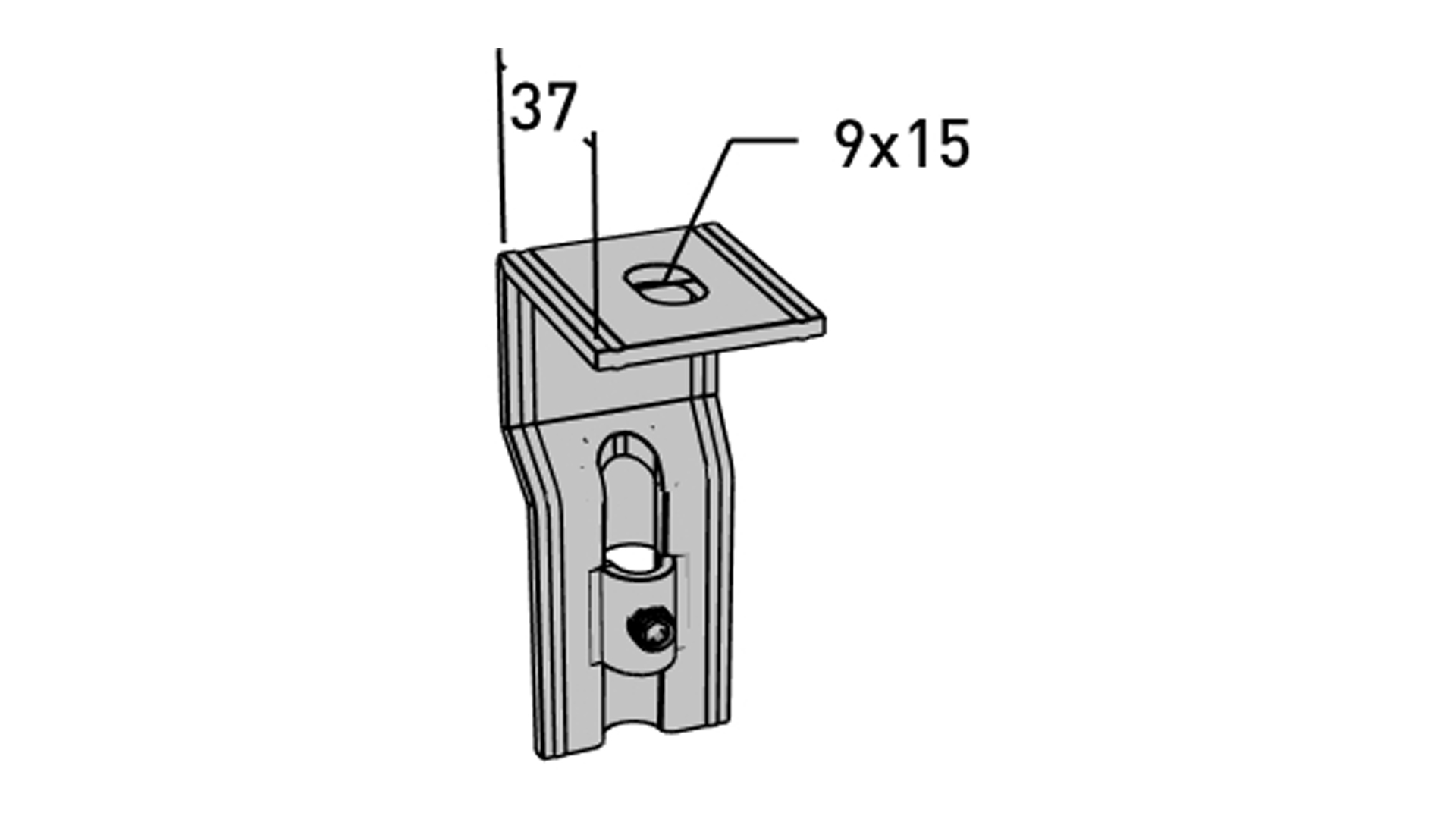

Ceiling bracket for threaded rod. Use a 3 mm hex key for the locking screw. Maximum load: 75 kg. Ultimate failure load: greater than or equal to 1.7 times the maximum load.
All variants

Product details

  • MP-number 920V
  • EAN 7394333123073
  • Length 35 mm
  • Width 40 mm
  • Height 80 mm
  • Weight 0.07 kg
  • Climate impact 0.206 kgCO2e
  • Surface treatment Lacquered
  • Color NCS S 0500-N (white)
  • Corrosion class C2
  • Suitable for Cable trays, Wire ladders

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Length

Color

Corrosion class

Surface treatment

920S

35 mm

C2

Pre-galvanized 20 µm

Select

MP-number

E No

Length

Color

Corrosion class

Surface treatment

920V

35 mm

NCS S 0500-N (white)

C2

Lacquered

Selected
