Roof bracket, threaded rod
C1
E No:
|
MP-number: 760E

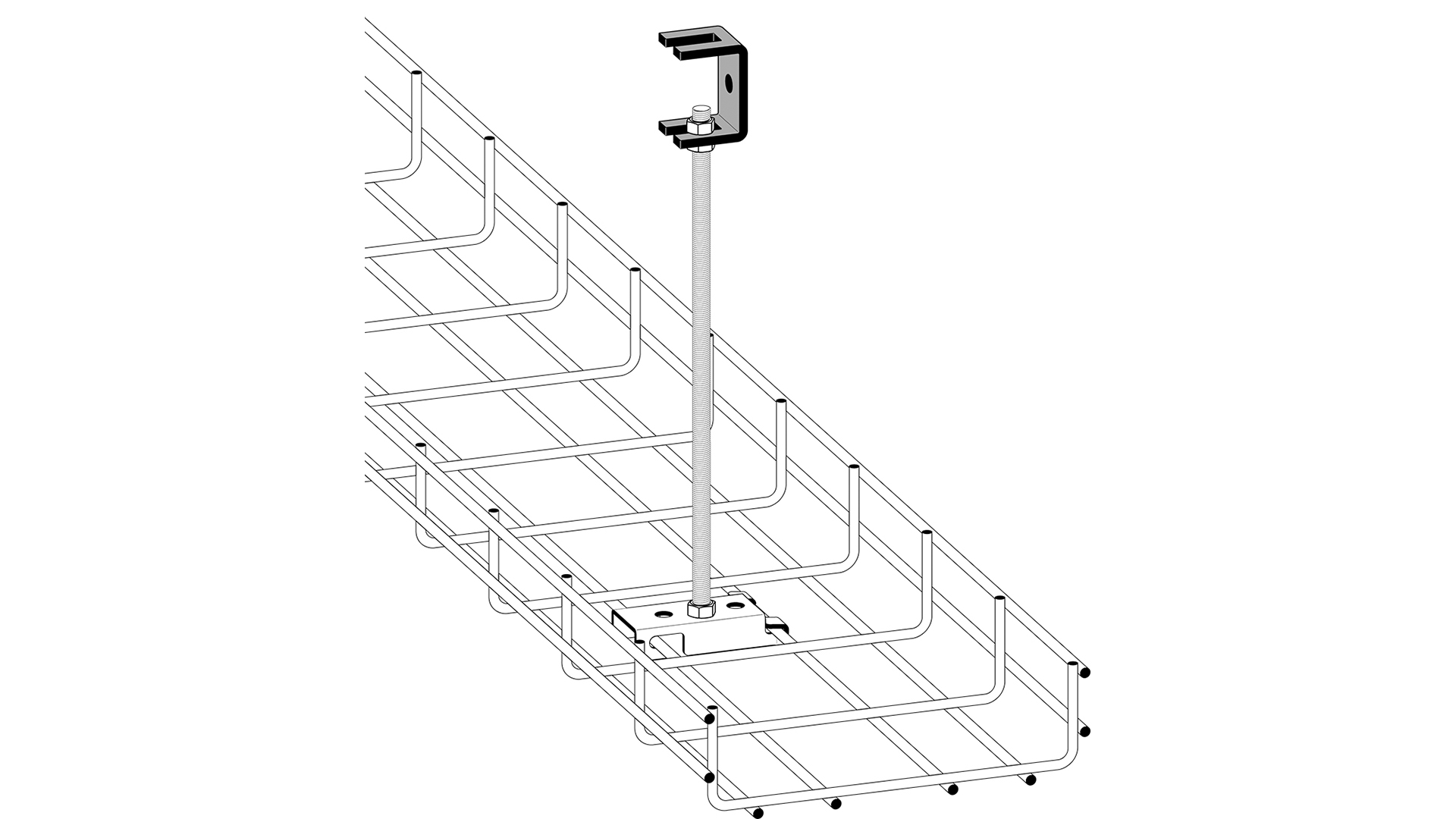

The ceiling bracket is used to suspend wire mesh trays from the threaded rod. The threaded rod is secured to the ceiling bracket using two nuts MP-044.
All variants
Product details
- MP-number 760E
- EAN 7394333121871

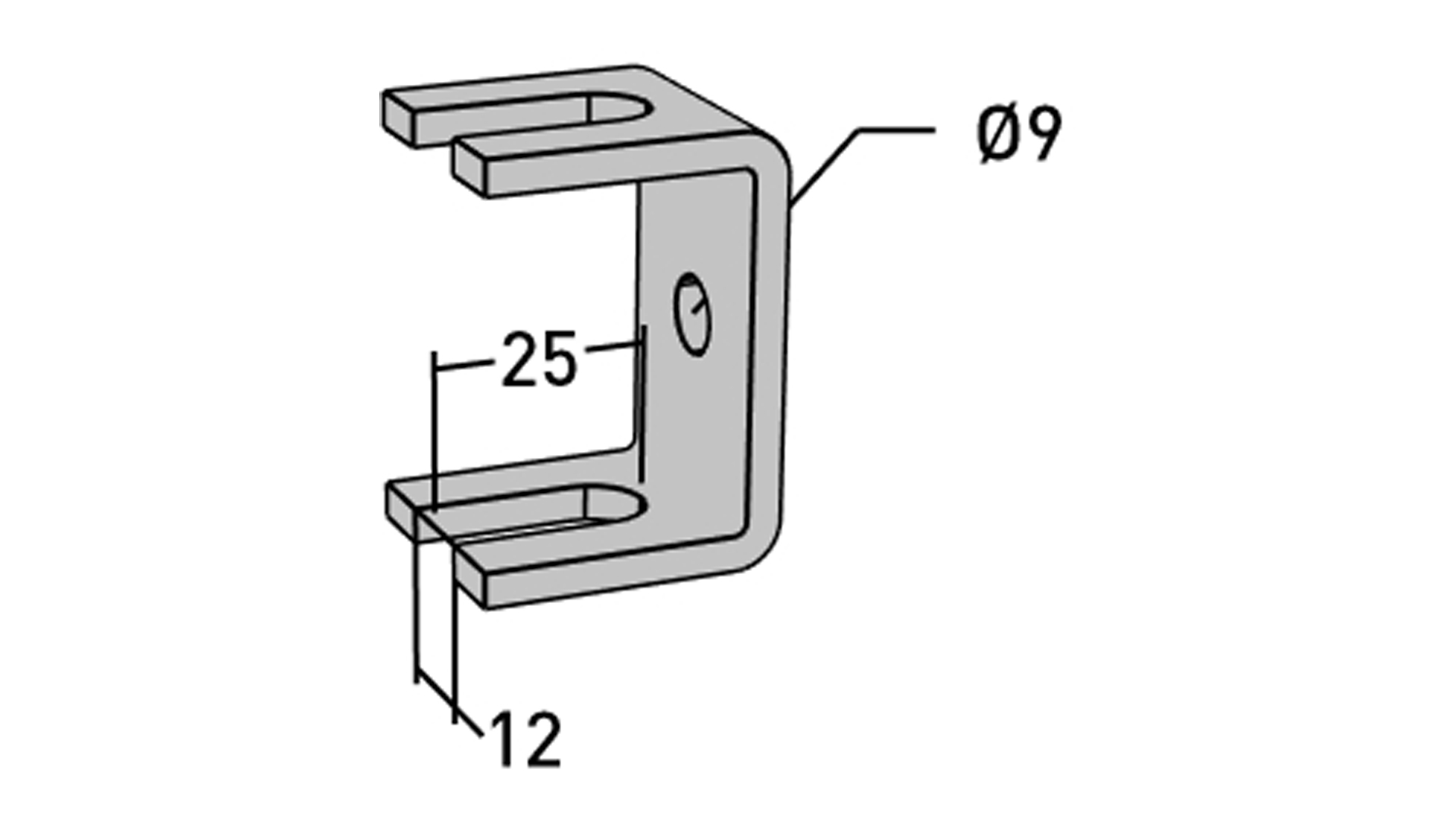

- Length 30 mm
- Width 35 mm
- Height 50 mm
- Weight 0.08 kg
- Climate impact 0.241 kgCO2e
- Surface treatment Electrogalvanized 10 µm
- Corrosion class C1
- Suitable for Wire ladders
Documents
Environmental data Electro-galvanized E_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Length
Corrosion class
Surface treatment
760E
30 mm
C1
Electrogalvanized 10 µm
MP-number
E No
Length
Corrosion class
Surface treatment
760Z
30 mm
C4
Hot-dip galvanized 55 µm
