Roof bracket

C4

E No:

|

MP-number: 150Z

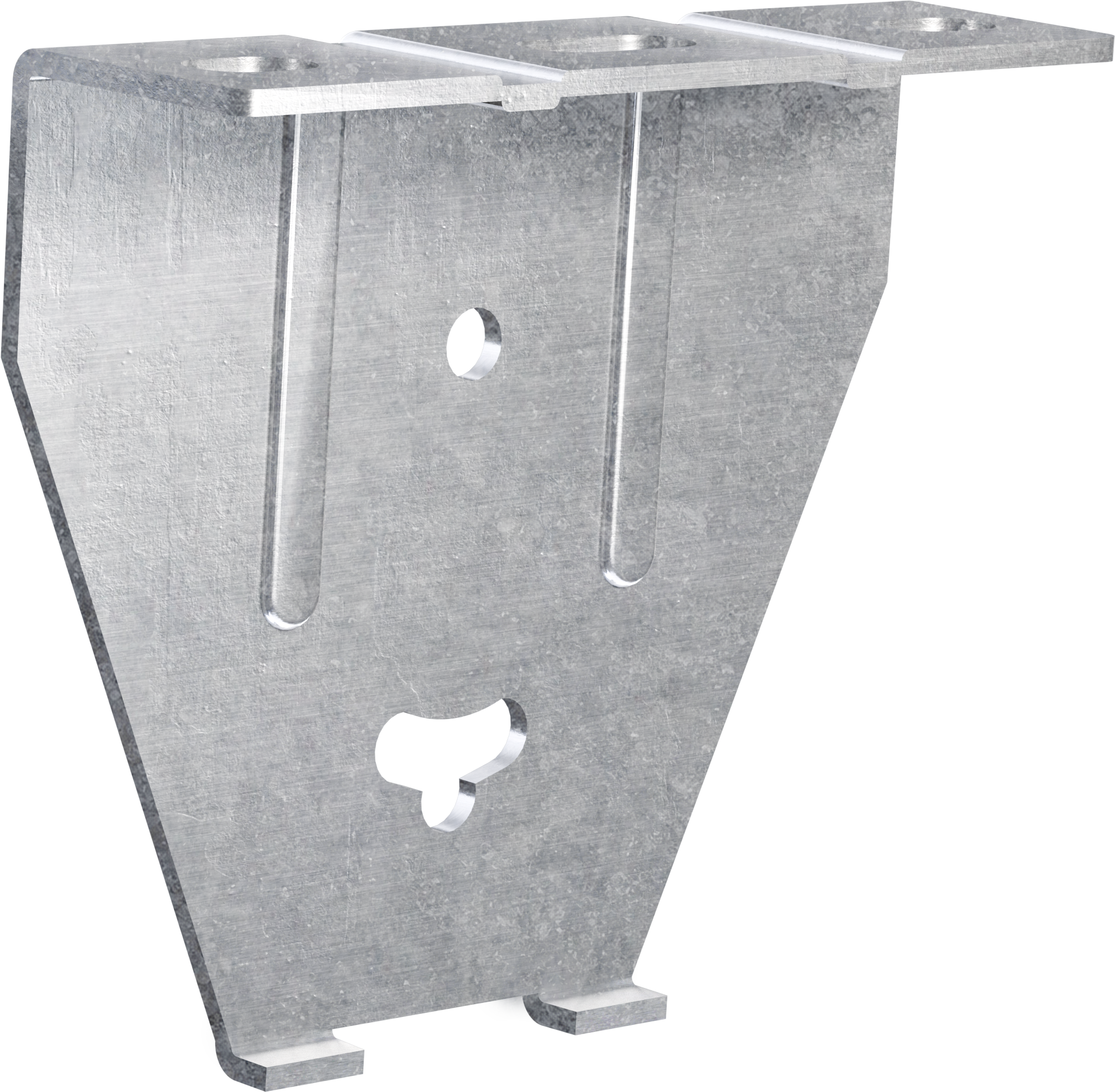

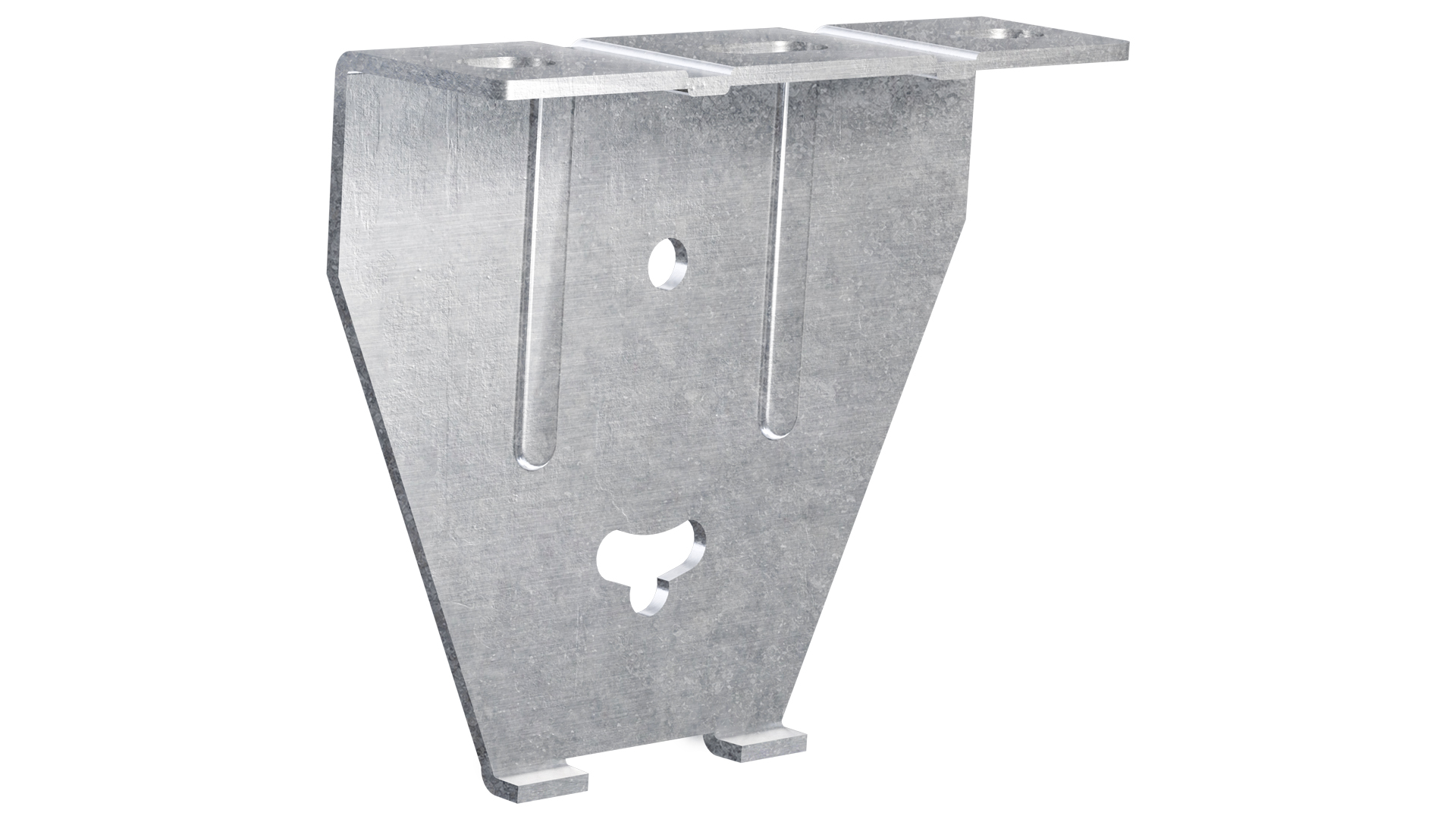

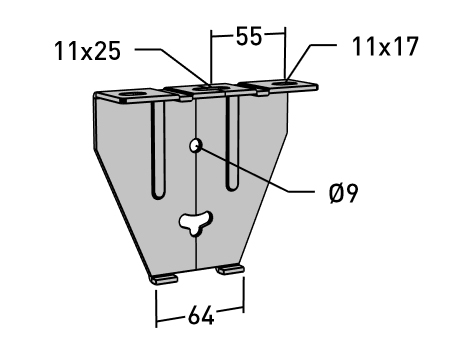

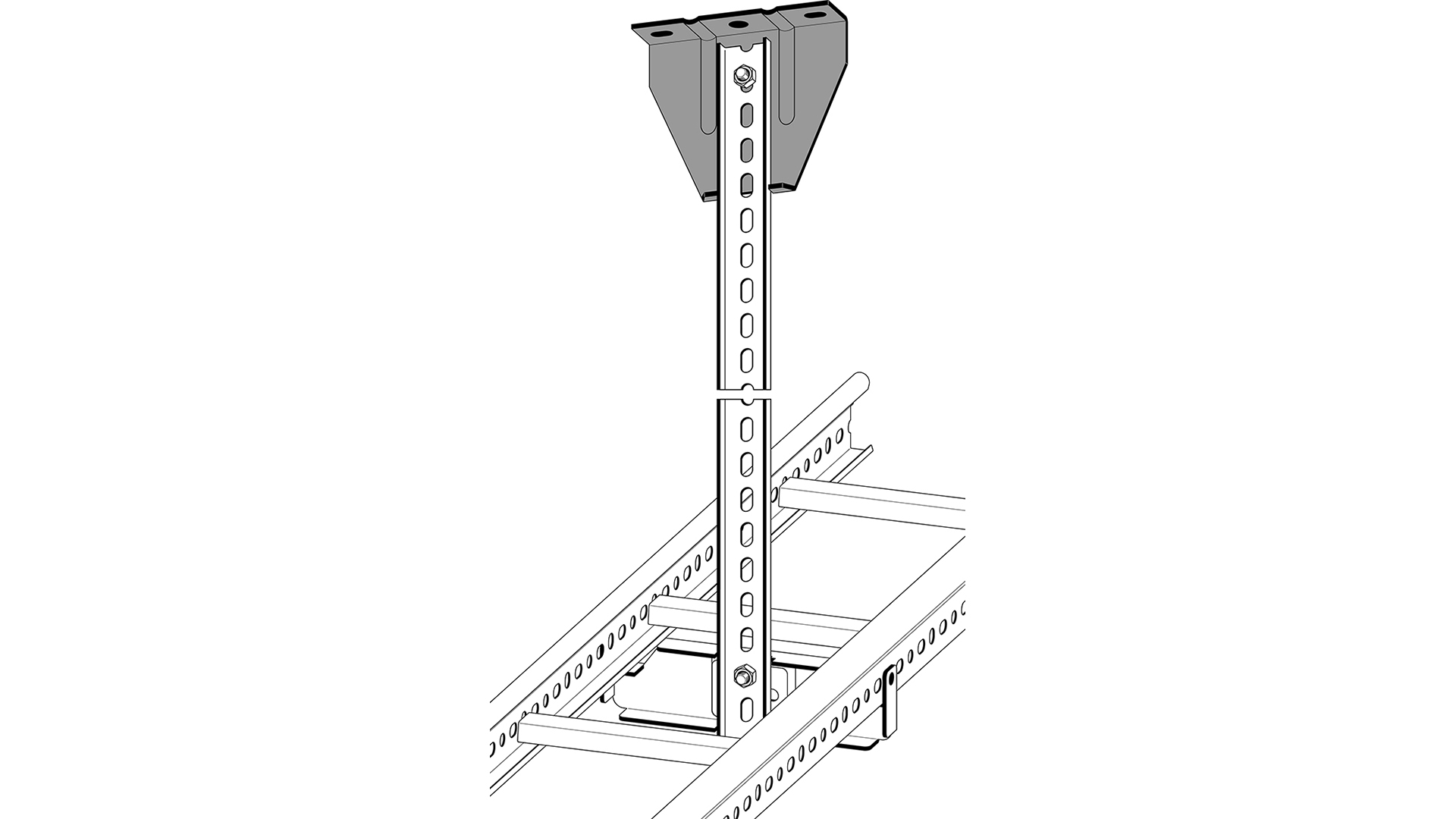

Ceiling bracket type TN for pendant rail/anchor rail. Can be mounted on sloping ceilings up to 12.5°. Max load 590 kg
All variants

Product details

  • MP-number 150Z
  • EAN 7394333011981
  • Length 40 mm
  • Width 141 mm
  • Height 121 mm
  • Weight 0.43 kg
  • Climate impact 1.217 kgCO2e
  • Surface treatment Hot-dip galvanized 55 µm
  • Corrosion class C4
  • Suitable for Cable ladders, Cable trays, Wire ladders

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Surface treatment

Corrosion class

150S

Pre-galvanized 20 µm

C2

Select

MP-number

E No

Surface treatment

Corrosion class

150Z

Hot-dip galvanized 55 µm

C4

Selected
