Recessed channel TB 1032, 3 m, white
E No:
|
MP-number: TB1032-3

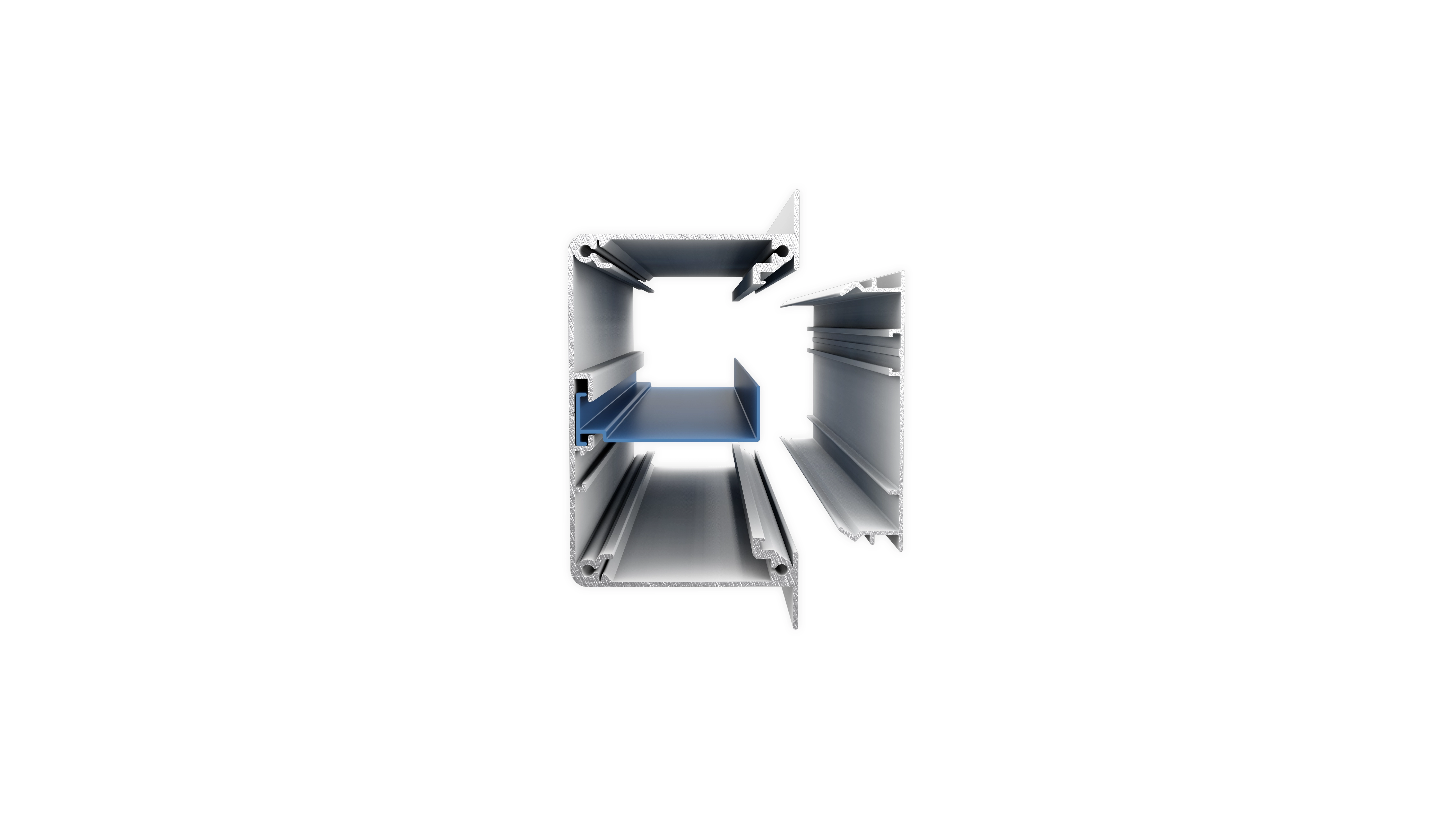

Wall trunking for recessed installation in the wall. 3 m - white finish. The cable area can with help of an intermediate shelf be divided into sections. There are slots in the trunking for earthing clamp TBM 1. Installation dimensions: 100x65 mm. The back is slotted for easier installation, c-c measurement 578 mm.
All variants
Product details
- MP-number TB1032-3
- EAN 7394333403229
- Length 3000 mm
- Width 65 mm
- Height 125 mm
- Weight 5.01 kg
- Climate impact 21.343 kgCO2e
- Surface treatment Painted aluminum
- Color RAL 9010 (white)
- Front 80 mm
- Suitable for Window sill channels
- Model TB10
Documents
Env data Channels Alu and varnish_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
