Rebate fastener
C4
E No:
|
MP-number: 278Z4

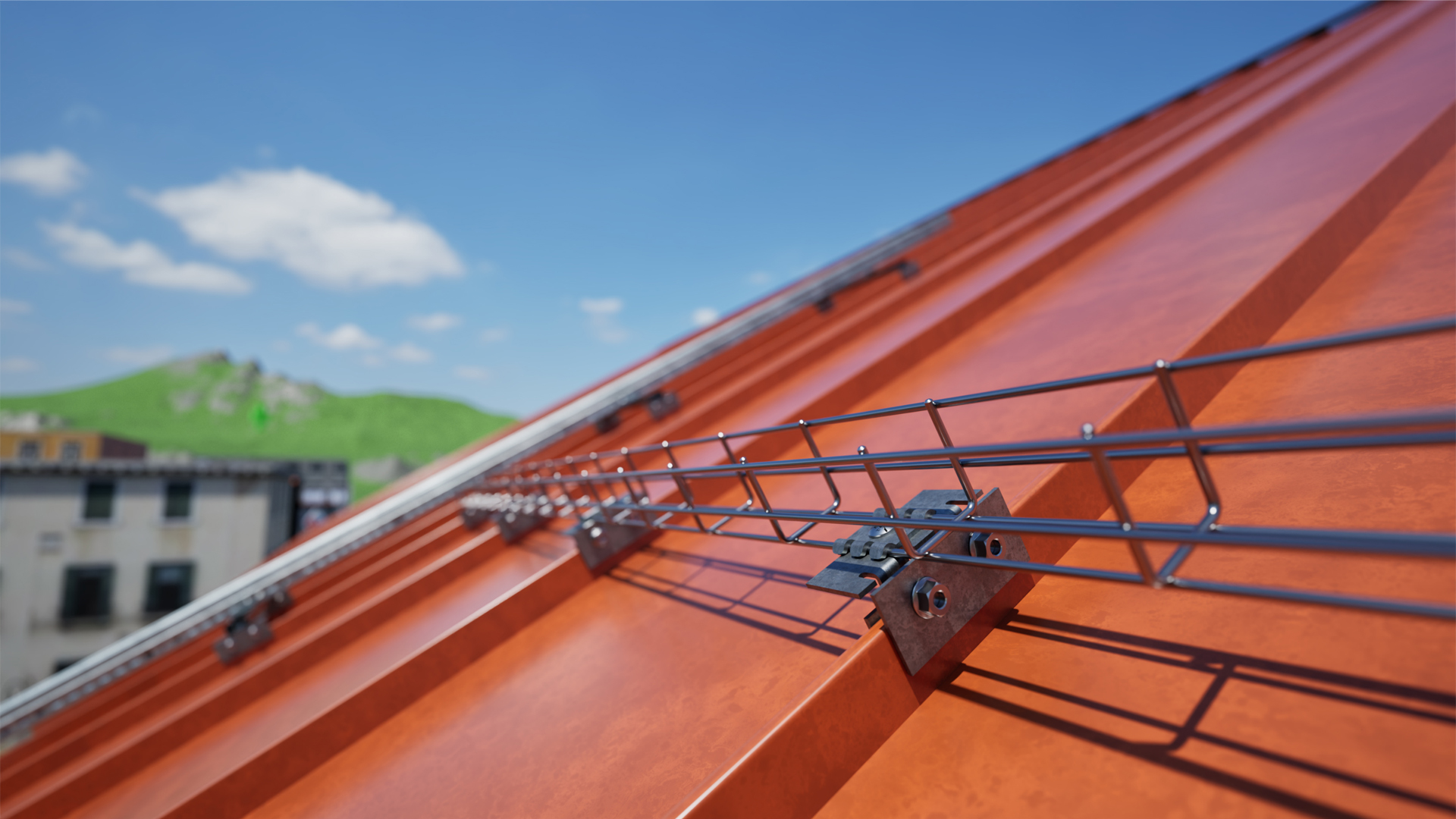

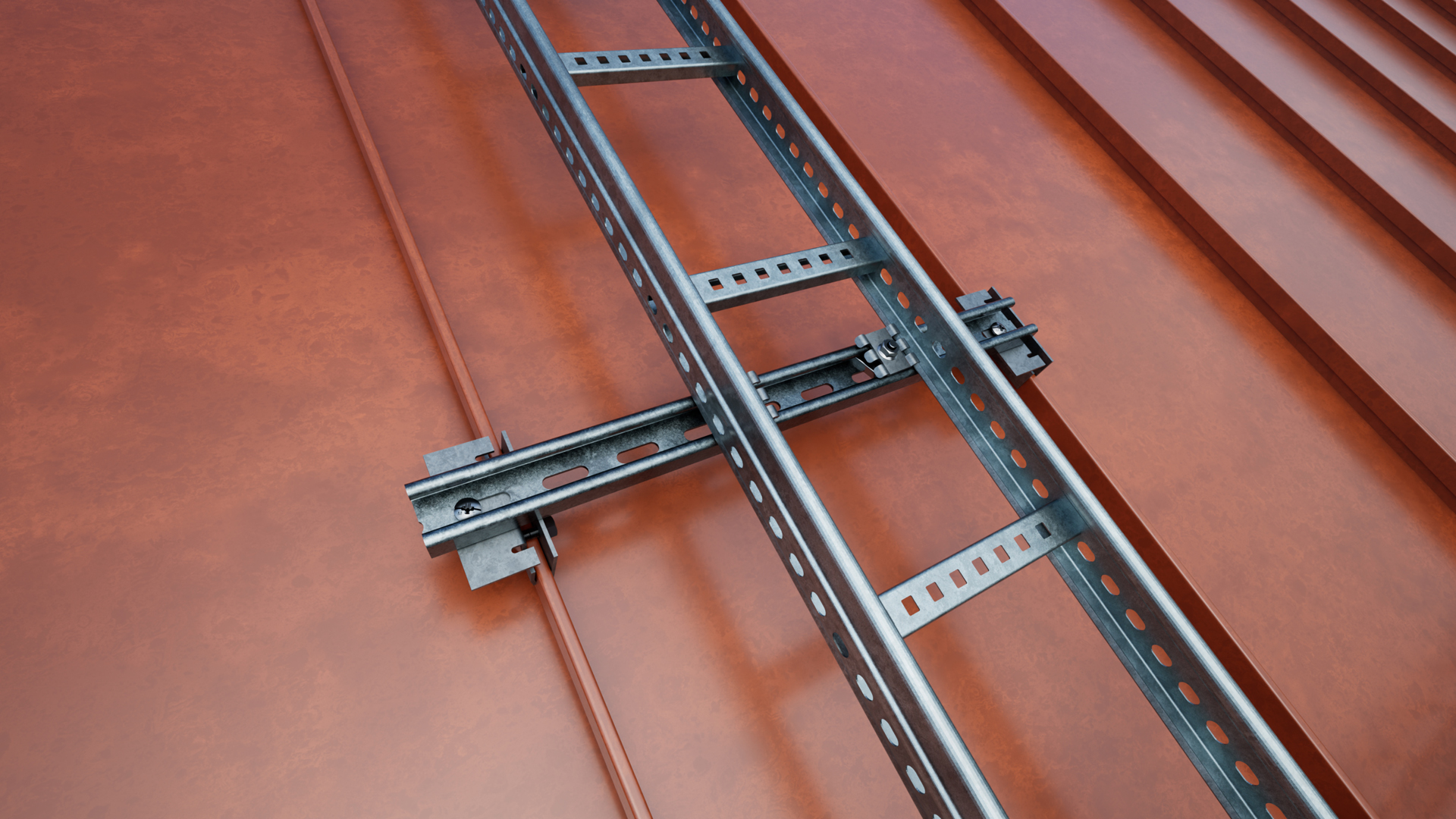

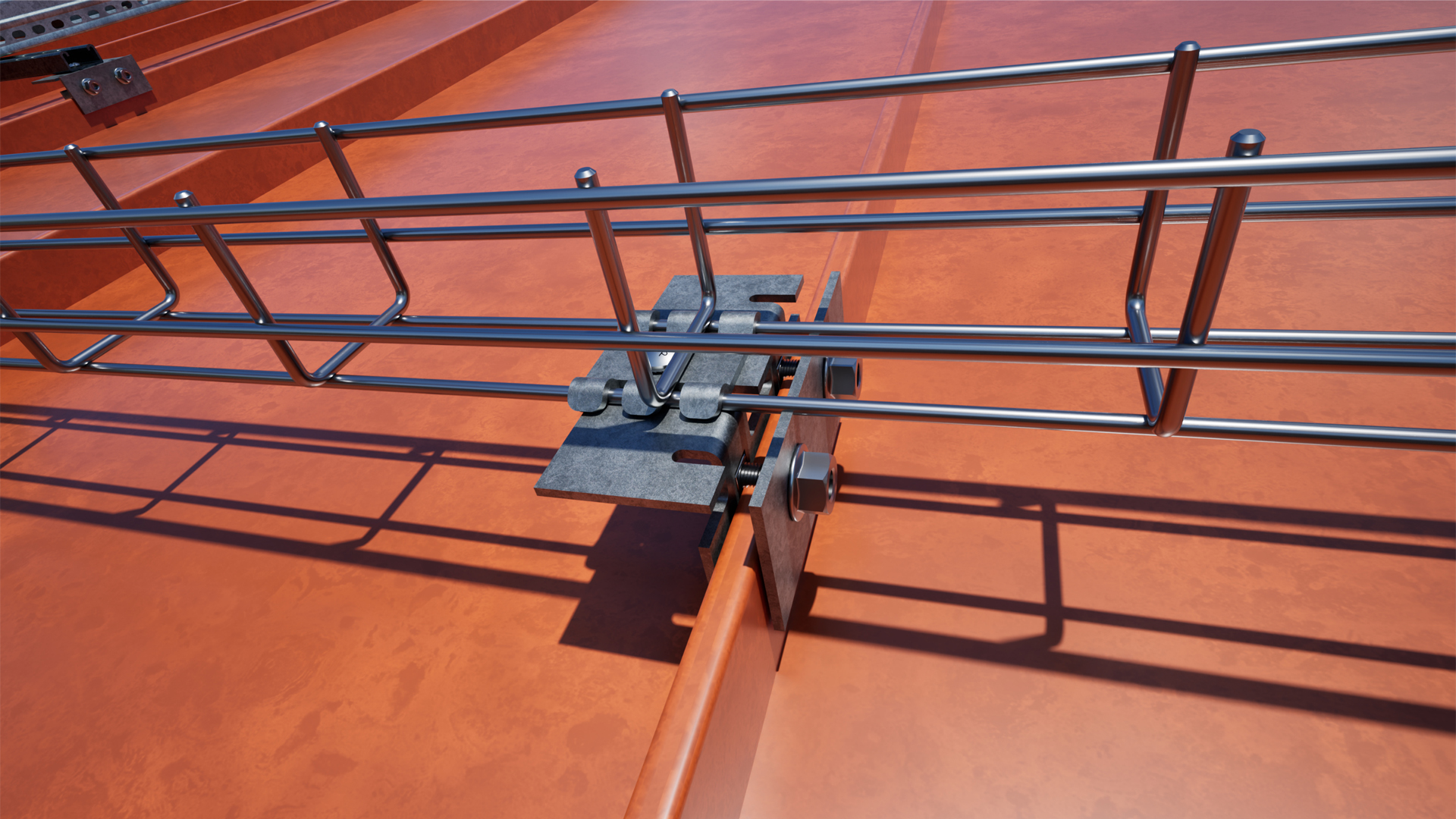

Fixing for sheet metal roofs with folds, not click roofs. Tighten so that the sheet metal folds are not deformed and so that the sheet metal can still expand when the temperature changes. In the case of copper roofs, some form of interlayer such as EPDM or similar is used to avoid galvanic corrosion. Follow the roofing supplier's recommendations.
All variants
Product details
- MP-number 278Z4
- EAN 7394333033815

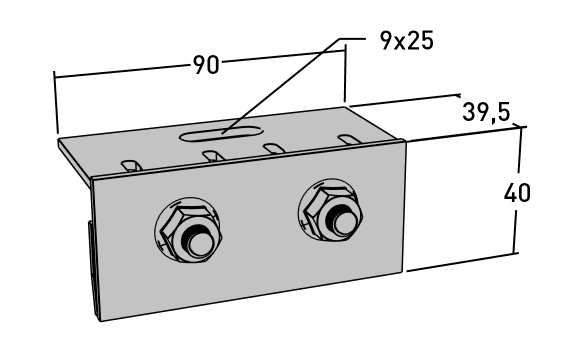

- Length 90 mm
- Width 55 mm
- Height 40 mm
- Weight 0.22 kg
- Climate impact 0.59 kgCO2e
- Surface treatment Z4
- Corrosion class C4
- Suitable for Cable ladders, Wire ladders
Documents
Environmental data galvanized Z4_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Length
Width
Height
Surface treatment
Corrosion class
Suitable for
278Z4
90 mm
55 mm
40 mm
Z4
C4
Cable ladders, Wire ladders
