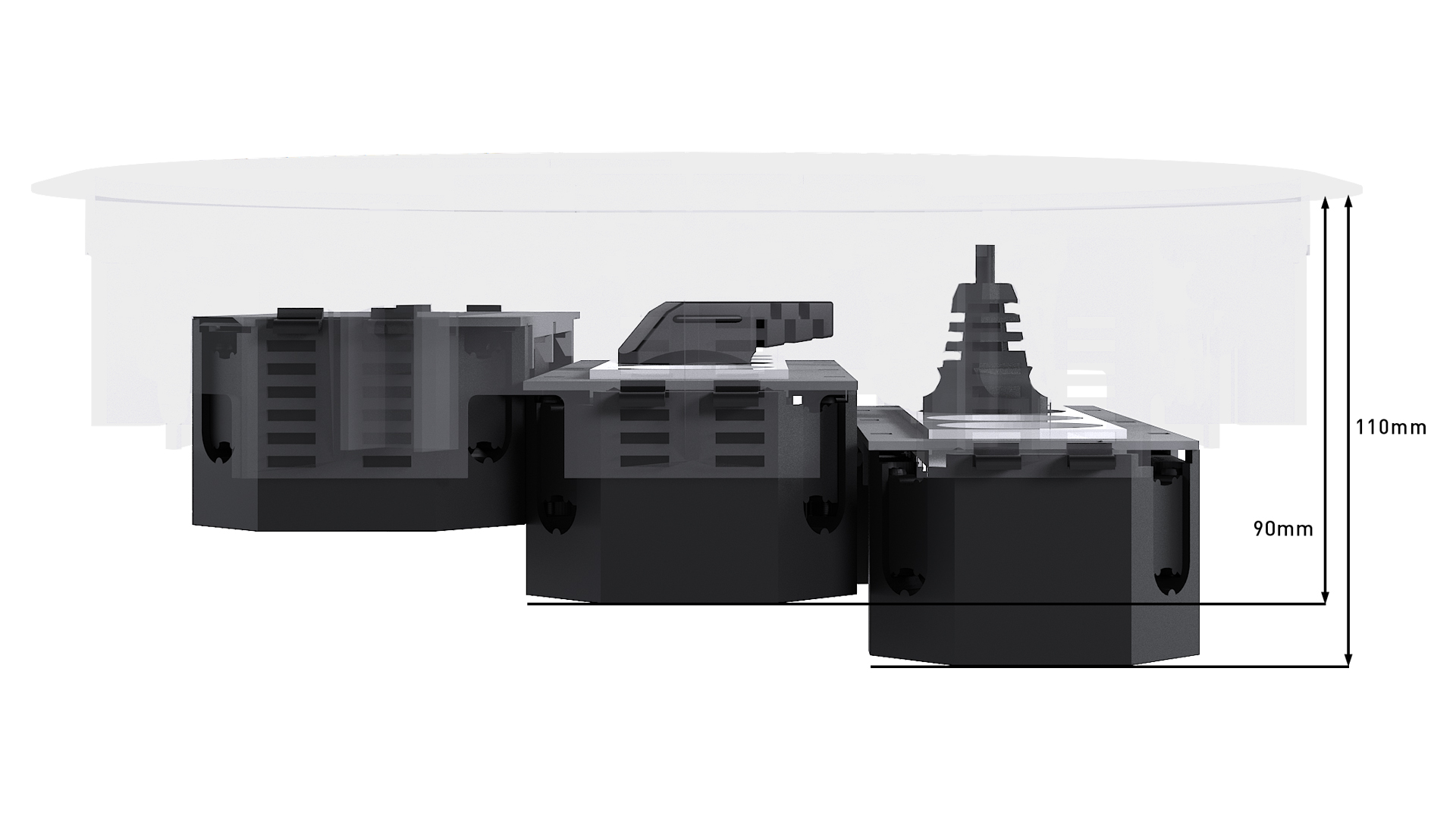

Plastic installation unit, Ø307mm, grey
E No:
|
MP-number: UEK3-R-G
Round installation unit Ø307 mm of grey plastic (polyamide) for dry cleaned areas, with space for up to 12 units. Maximum load on cover: 150 kg. Min. height 65 mm.
All variants
Product details
- MP-number UEK3-R-G
- EAN 4040918141866
- Length 330 mm
- Width 330 mm
- Height 65 mm
- Weight 1.84 kg
- Surface treatment Plastic
- Color RAL 7011 (grey)
- Mounting opening Ø 308 mm
- Units 12 st
- Max load 150 kg
- Filling depth lid 8 mm
- Suitable for Floor boxes
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Units
Filling depth lid
Mounting opening
Max load
UEK3-R-G
12 st
8 mm
Ø 308 mm
150 kg
