Mounting plate, 400 mm

C4

E No:

|

MP-number: 209Z4

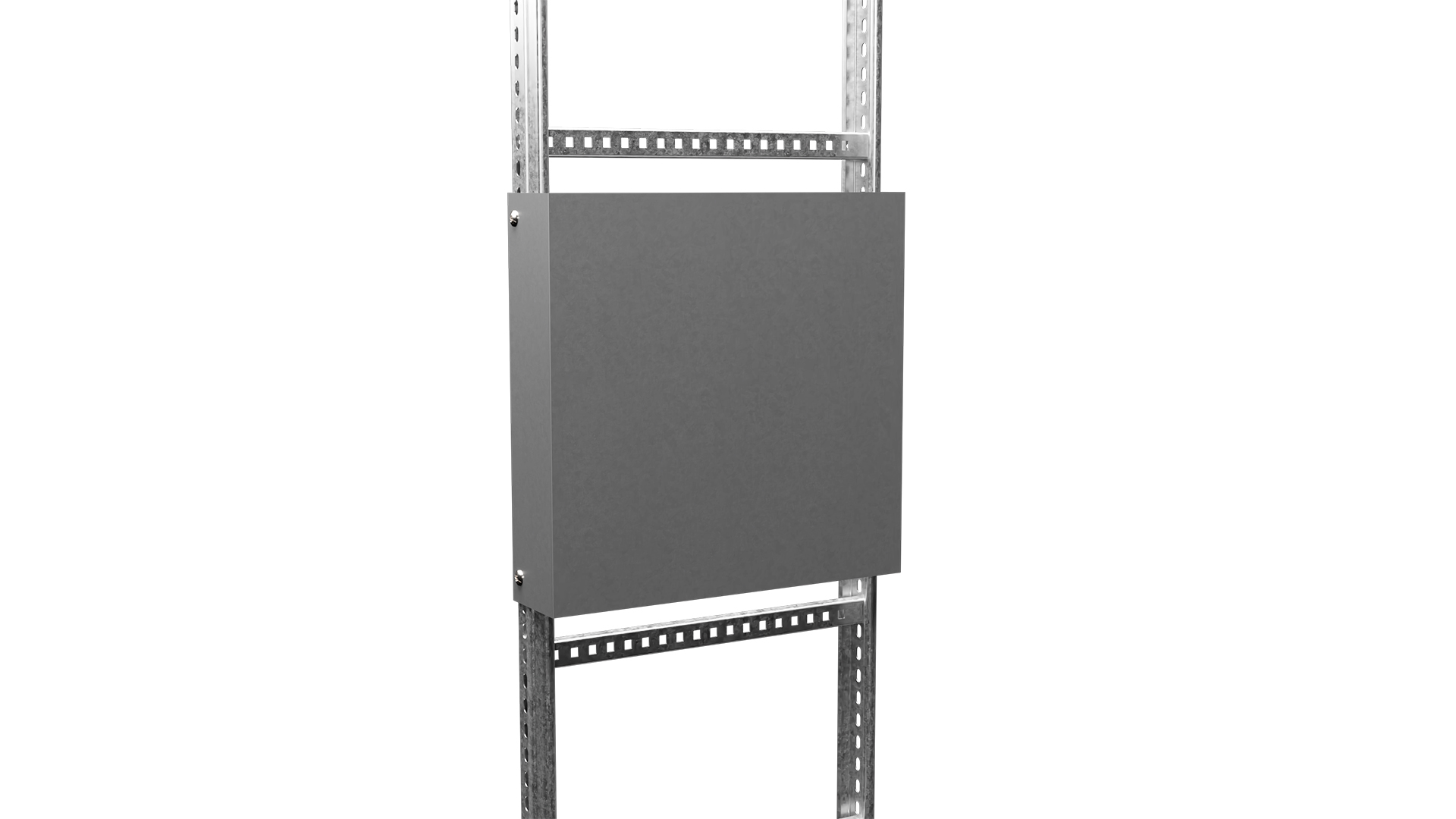

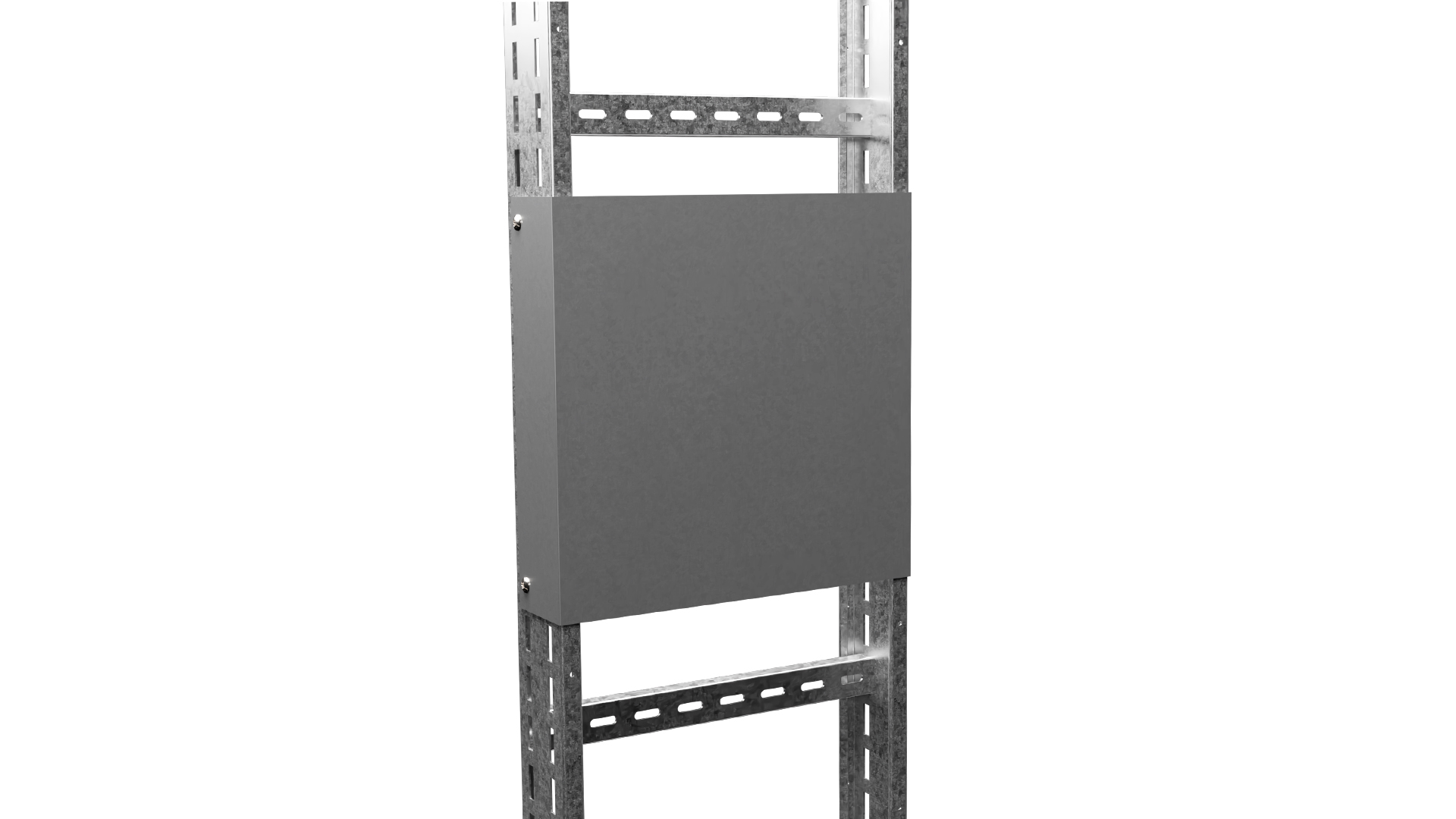

Mounting plate designed for installation of e.g. safety switches, etc. on vertical cable ladders. The mounting plate is made of a zinc-magnesium alloy (25 µm) and is suitable for use in environments up to classification C4. The advantage of this material is that it self-heals when cut, for example, and offers a more sustainable alternative to traditional hot-dip galvanizing. Suitable on all types of cable ladder. Plate thickness 1.5 mm. Fitted with bolt set MP-937Z when used outdoors and MP-937E when used indoors.
All variants

Product details

  • MP-number 209Z4
  • EAN 7394333039770
  • Length 400 mm
  • Width 403 mm
  • Height 0 mm
  • Weight 2.72 kg
  • Climate impact 7.504 kgCO2e
  • Surface treatment Z4
  • Corrosion class C4
  • Suitable for Cable ladders

Documents

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

207Z4

200 mm

203 mm

90 mm

Z4

C4

Cable ladders

Select

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

208Z4

300 mm

303 mm

90 mm

Z4

C4

Cable ladders

Select

MP-number

E No

Length

Width

Height

Surface treatment

Corrosion class

Suitable for

209Z4

400 mm

403 mm

0 mm

Z4

C4

Cable ladders

Selected
