Iron beam bracket
C4
E No:
|
MP-number: 243Z

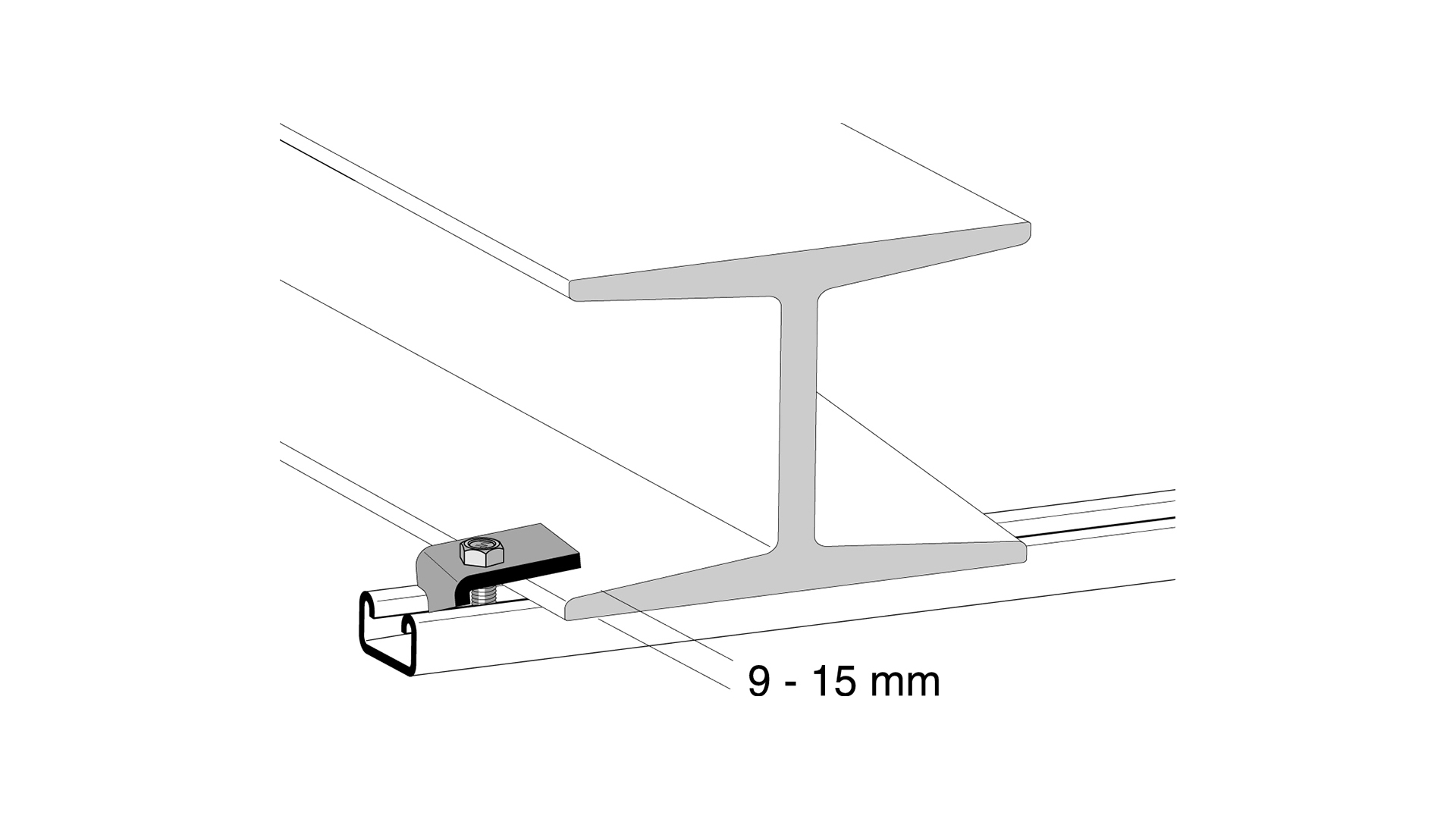

Designed for fastening to steel beams. For flange thickness 9-15 mm. Max load 200 kg.
All variants
Product details
- MP-number 243Z
- EAN 7394333033747
- Length 55 mm
- Width 40 mm
- Height 27 mm
- Weight 0.2 kg
- Climate impact 0.566 kgCO2e
- Surface treatment Hot-dip galvanized 55 µm
- Corrosion class C4
- Suitable for Cable ladders, Cable trays, Wire ladders
Documents
Environmental data galvanized Z_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Length
Width
Height
Surface treatment
Corrosion class
Suitable for
243Z
55 mm
40 mm
27 mm
Hot-dip galvanized 55 µm
C4
Cable ladders, Cable trays, Wire ladders
Relaterade produkter
C2

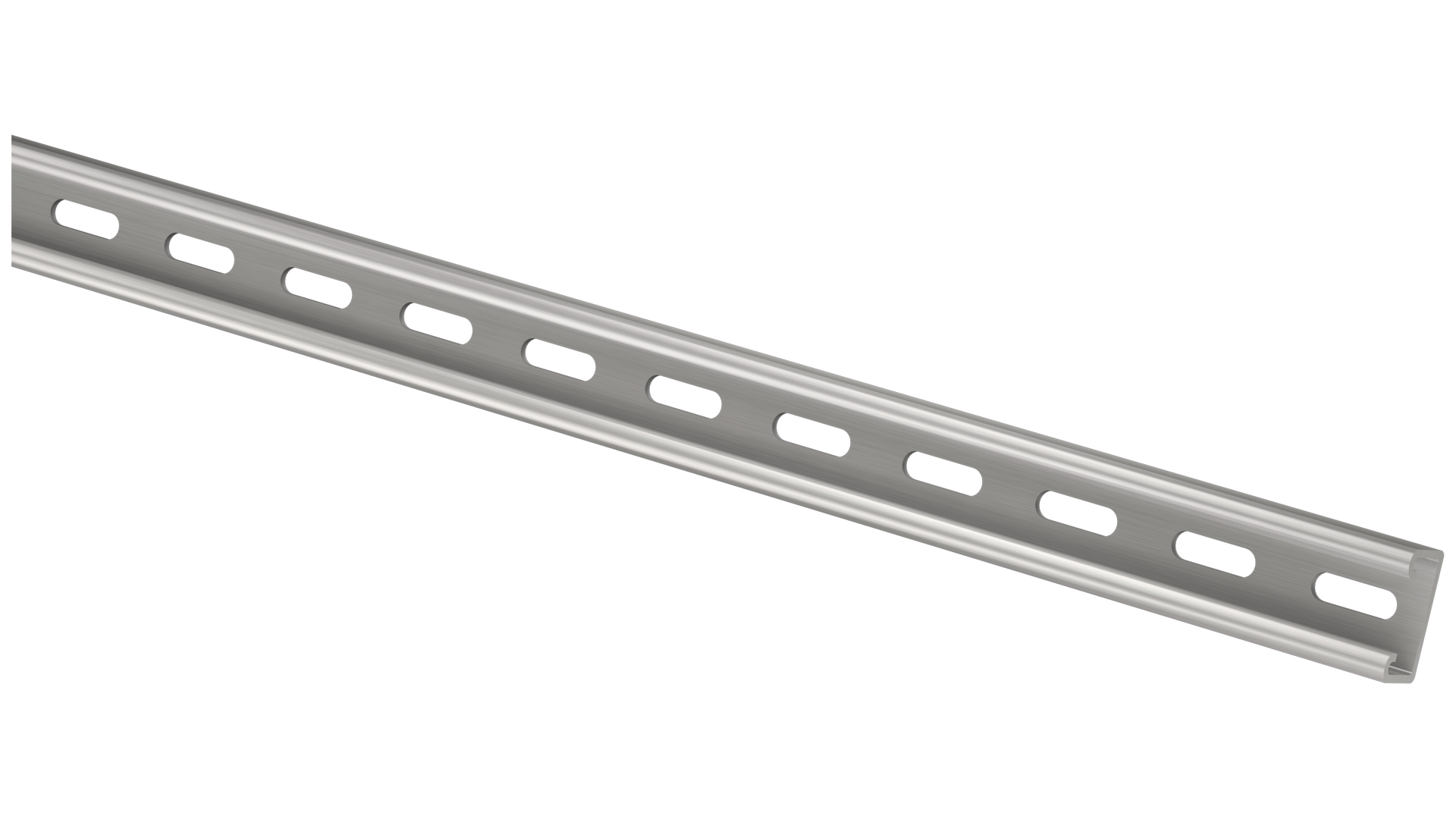

Anchor rail MP-V, 21x41 mm, 3000 mm
E No:
MP-number: 231S
C4

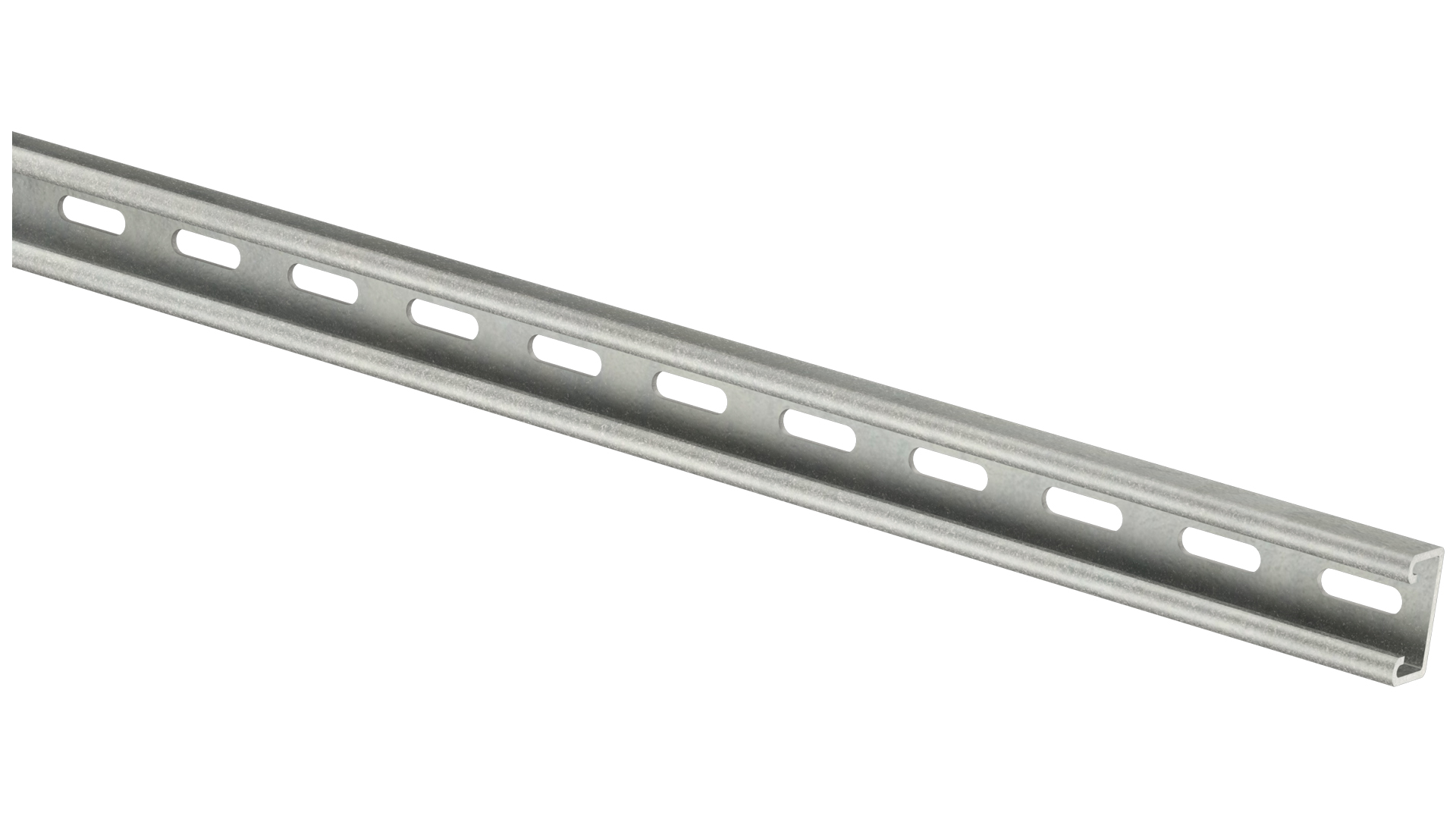

Anchor rail MP-V, 21x41 mm, 3000 mm
