Internal joint FZ
C4
E No:
|
MP-number: 206Z

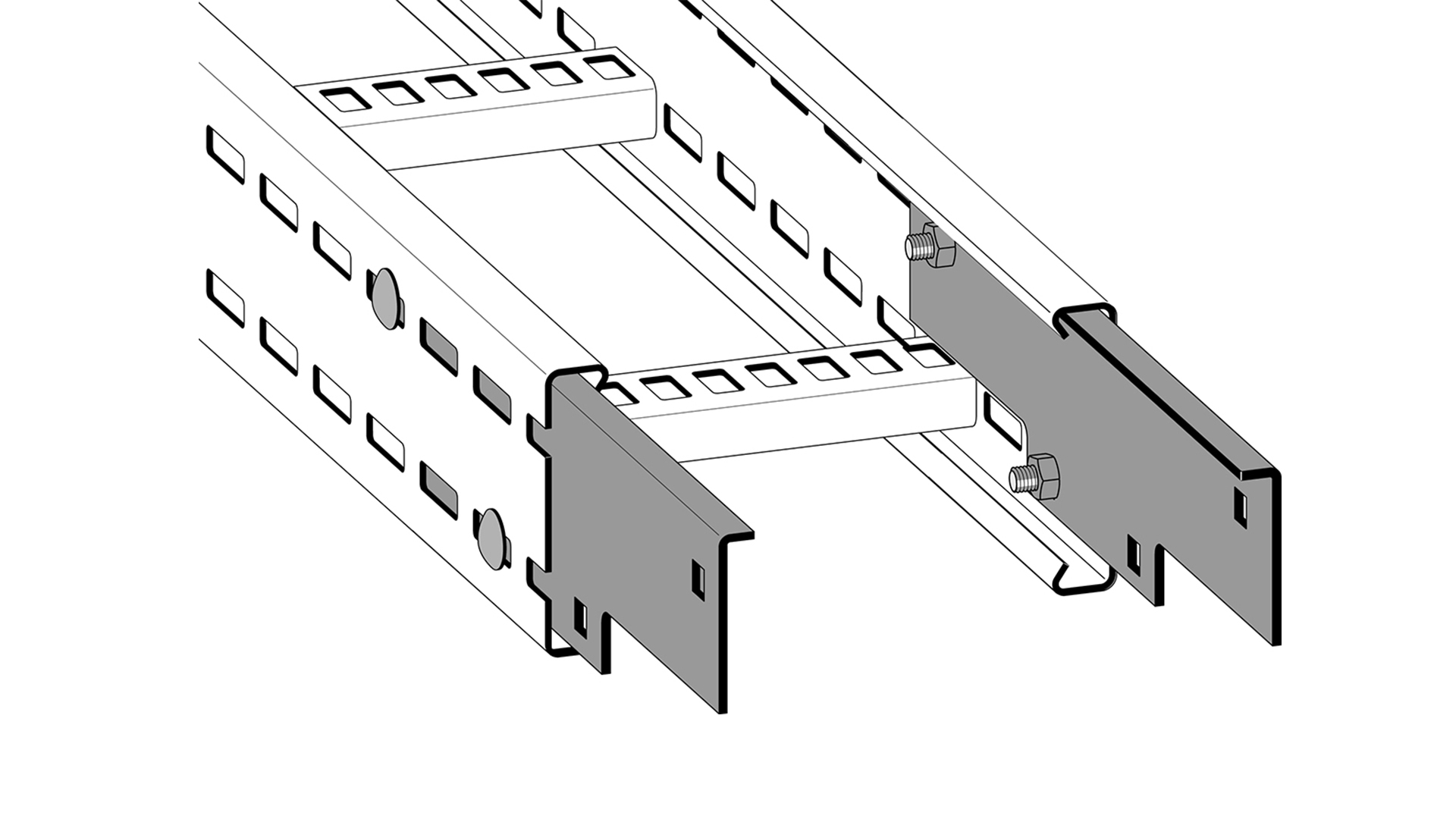

Internal ladder splice for MP-FZ. The splice is used at ends against the wall or the like where the standard splice MP-201 Z can not be used. Use 4 x MP-947 Z-bolts per splice. Meets requirements for equipotential bonding according SS-EN 61537:2007.
All variants
Product details
- MP-number 206Z
- EAN 7394333013367

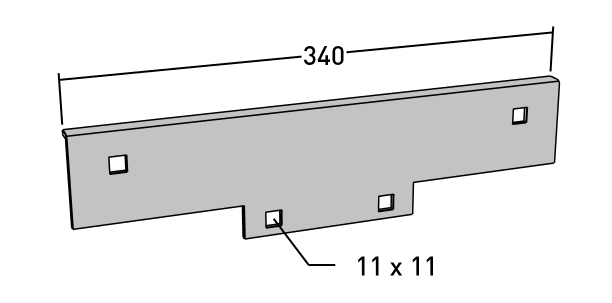

- Length 340 mm
- Width 83 mm
- Height 12 mm
- Weight 0.6 kg
- Climate impact 1.698 kgCO2e
- Surface treatment Hot-dip galvanized 55 µm
- Corrosion class C4
- Mounting Internal
- Suitable for Cable ladders
Documents
Environmental data galvanized Z_en-GB.pdf
Certifications
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Surface treatment
Corrosion class
Mounting
206Z
Hot-dip galvanized 55 µm
C4
Internal
