Gate support, 200 mm

C4

E No:

|

MP-number: 052Z

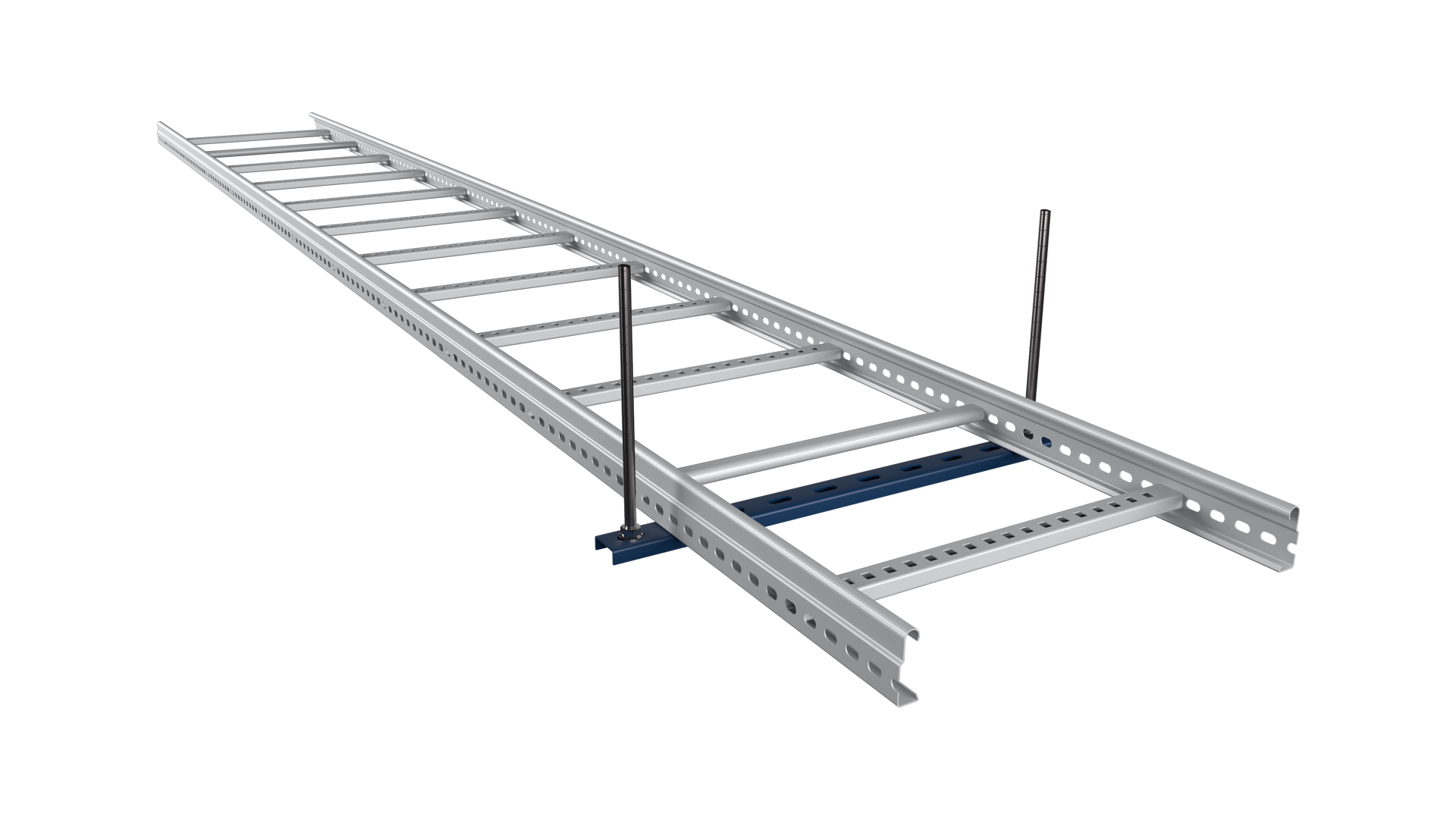

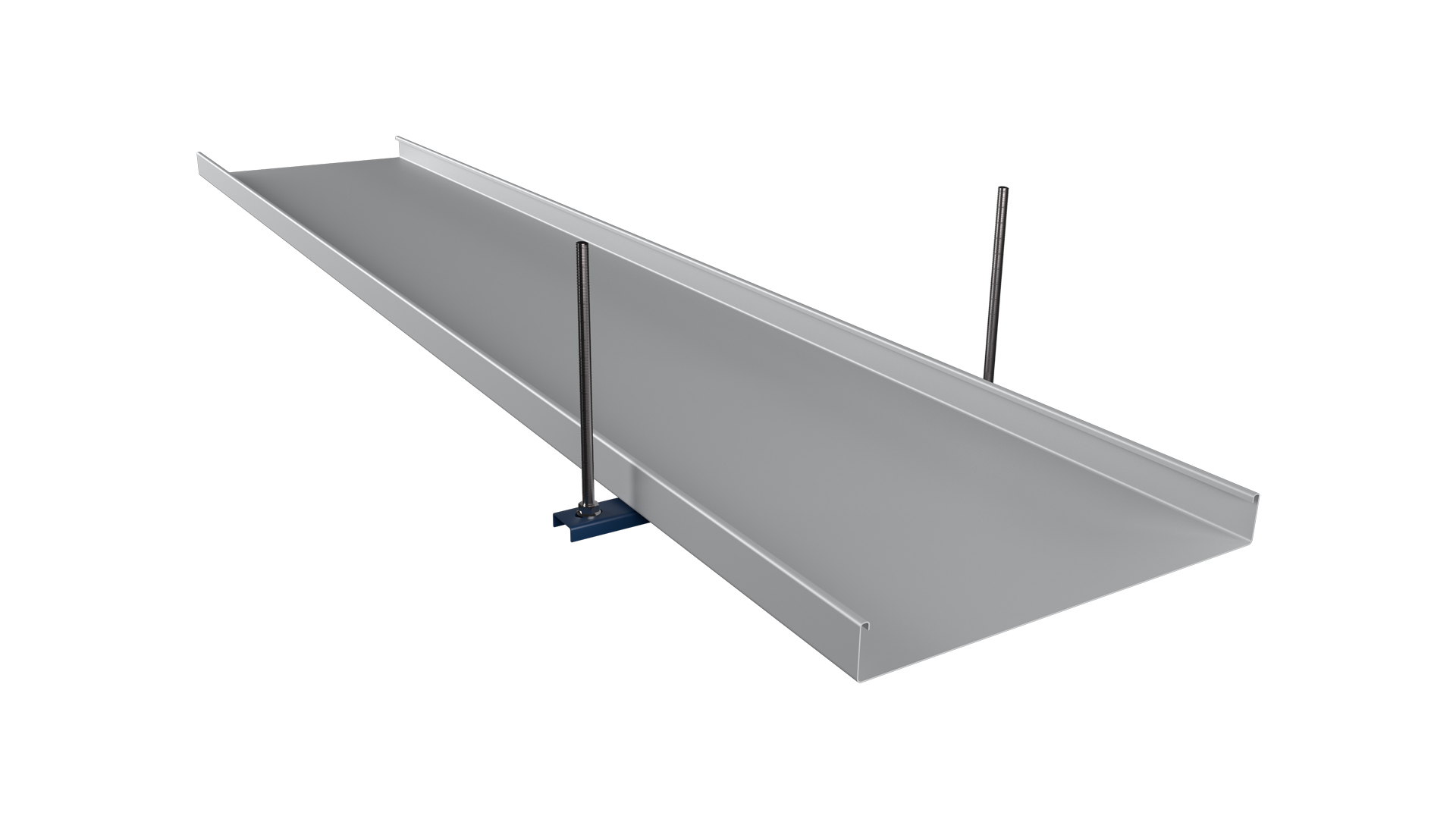

Gate support compatible with all cable ladders, wire ladders and cable trays from 200 mm width and upwards. The bracket is made of hot-dip galvanised sheet metal (55 µm) and is suitable for use in environmental class C4 max. It has a low construction height of only 14 mm, making it ideal for confined spaces. For mounting on cable ladders and wire ladders, use screw set M8x16 and universal washer MP-731. The bracket is used together with threaded rod M10 and lock nut MP-044.
All variants

Product details

  • MP-number 052Z
  • EAN 7394333022666
  • Length 300 mm
  • Width 35 mm
  • Height 14 mm
  • Weight 0.23 kg
  • Climate impact 0.651 kgCO2e
  • Surface treatment Hot-dip galvanized 55 µm
  • Corrosion class C4
  • Mounting Center mounting
  • Fits (width) 200 mm
  • Suitable for Cable ladders, Cable trays, Wire ladders
