Floor box equipped, 261x186 mm
E No:
|
MP-number: GB1-186-V-G

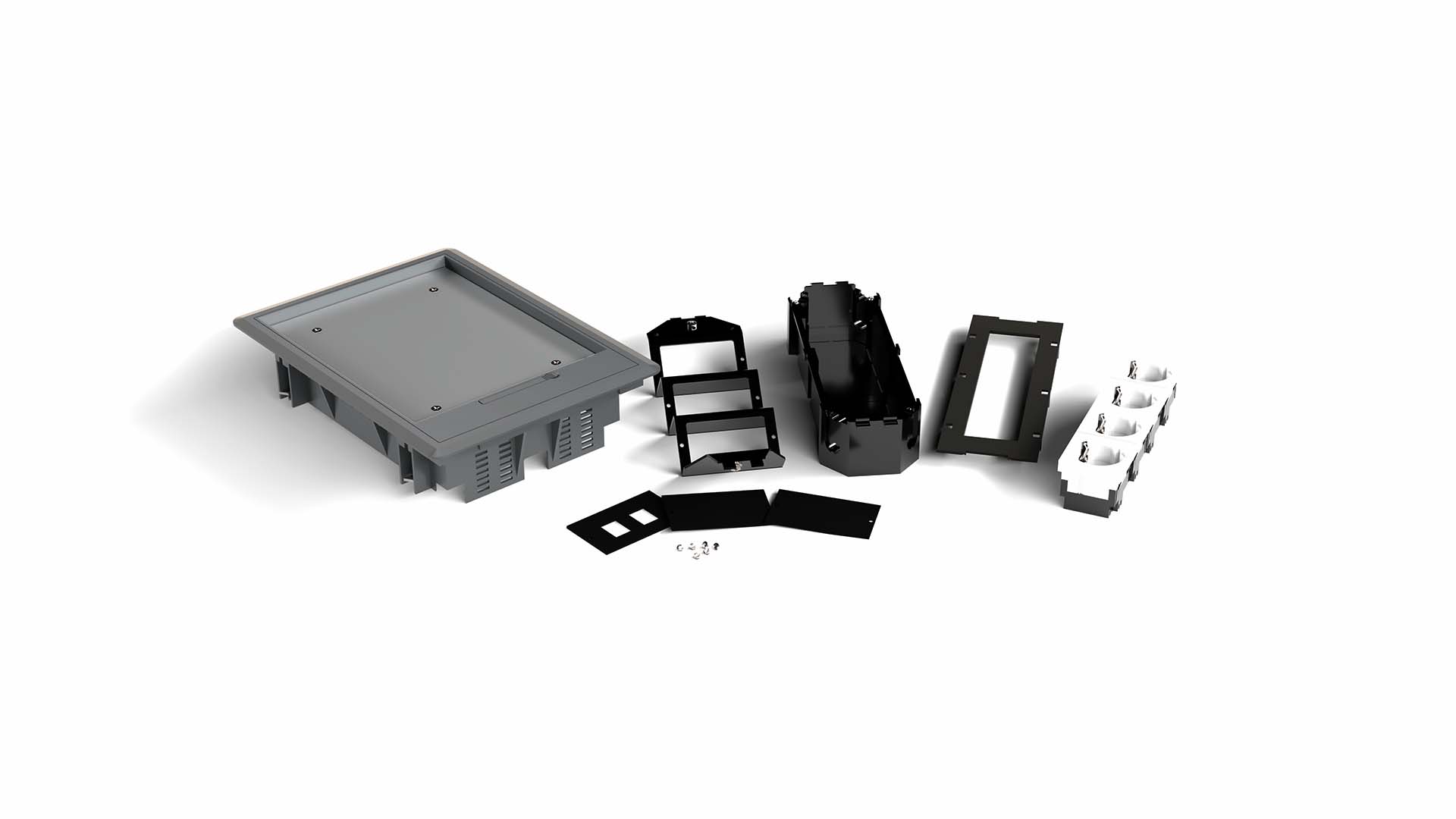

Equipped floor box made of polyamide plastic, designed to be installed either directly into the floor or in a casting box. The floor box has a built-in size of 261x186 mm. It is equipped with the following components: an equipment box with accompanying 4-way power outlet and a mounting frame for low voltage with space for three mounting plates. Of these, two plates are blank, while the third has a hole pattern to accommodate two keystone connectors.
All variants
Product details
- MP-number GB1-186-V-G
- EAN 7394333501925
- Length 206 mm
- Width 280 mm
- Height 87 mm
- Weight 1.86 kg
- Surface treatment Plastic
- Color RAL 7011 (grey)
- General power outlet (230V) 4 st
- Blind cap 2 st
- Mounting opening 186x261 mm
- Filling depth lid 8 mm
Comments on the product
Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.
Variants
MP-number
E No
Mounting opening
Filling depth lid
General power outlet (230V)
Blind cap
GB1-186-V-G
186x261 mm
8 mm
4 st
2 st
