Floor and ceiling pendulum MP-FDV, 2000 mm

E No:

MP-number: 987Z

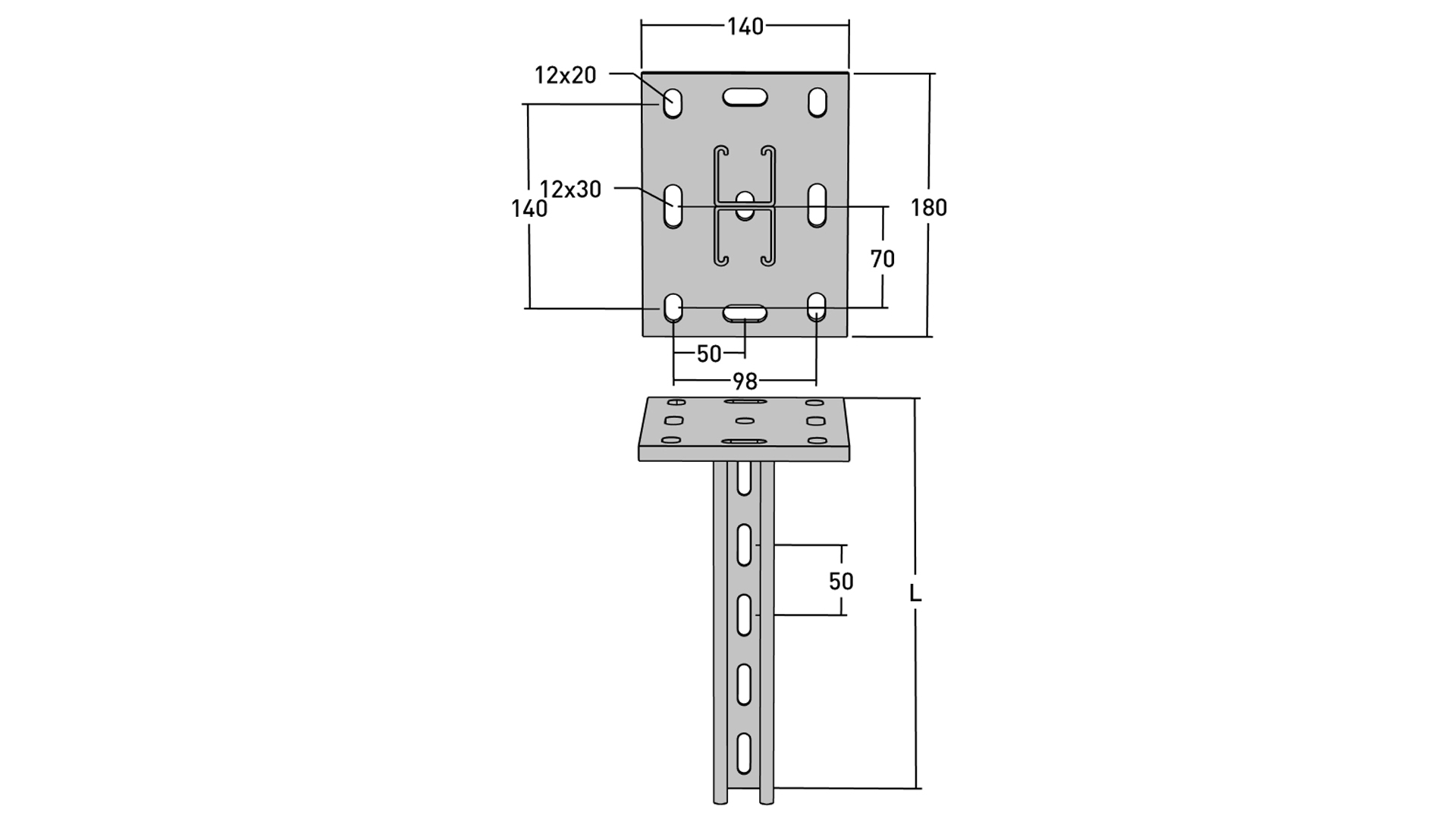

Double-sided ceiling/floor pendant – MP-FDV 2x41x41 mm. Is used to hang from the ceiling but can also be used as a support against a floor with both side and middle mounting. The ceiling pendant is made of hot-dip galvanised steel (55 µm) and is suitable for environmental class max C4. Add nut washer or T-bolt for easy adjustment of cantilever arm.

All variants All variants

Product details

MP-number 987Z
EAN 7394333032801
Length 2010 mm
Width 180 mm
Height 140 mm
Weight 12.5 kg
Climate impact 35.375 kgCO2e
Surface treatment Hot-dip galvanized 55 µm
Corrosion class C4
Suitable for Cable ladders, Cable trays, Wire ladders
Model MP-FDV

Documents

Environmental data galvanized Z_en-GB.pdf

Certifications

Comments on the product

Do you have any comments on the product? Please contact us if you have any feedback on this product. Use the link to access our product feedback form.

Variants

MP-number	Surface treatment	Corrosion class	Length
985Z	Hot-dip galvanized 55 µm	C4	1010 mm	Select
986Z	Hot-dip galvanized 55 µm	C4	1510 mm	Select
987Z	Hot-dip galvanized 55 µm	C4	2010 mm	Selected
988Z	Hot-dip galvanized 55 µm	C4	3010 mm	Select
