Fixing plate with box IP65, 180x175 mm

E No:

MP-number: 112SD10

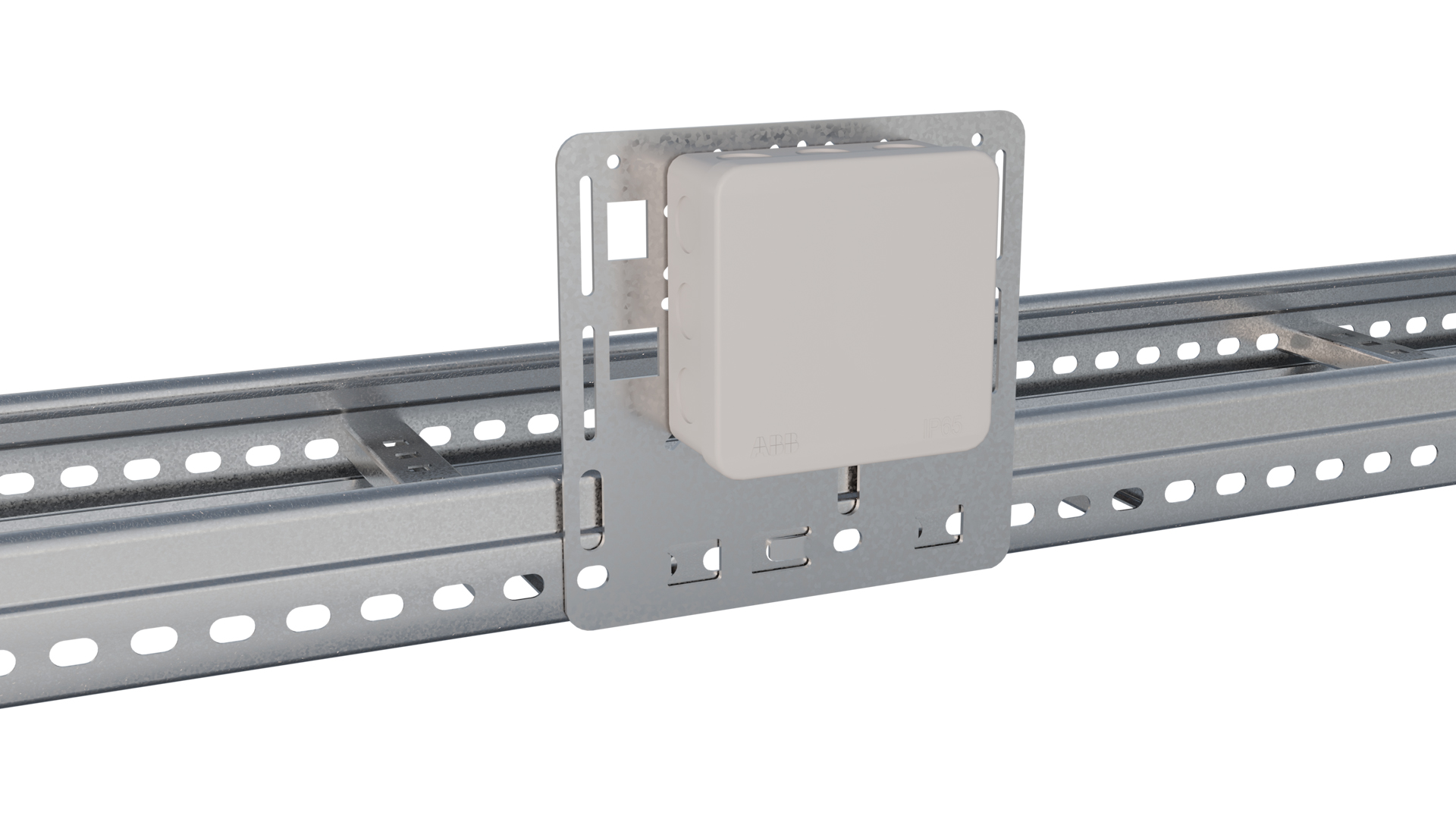

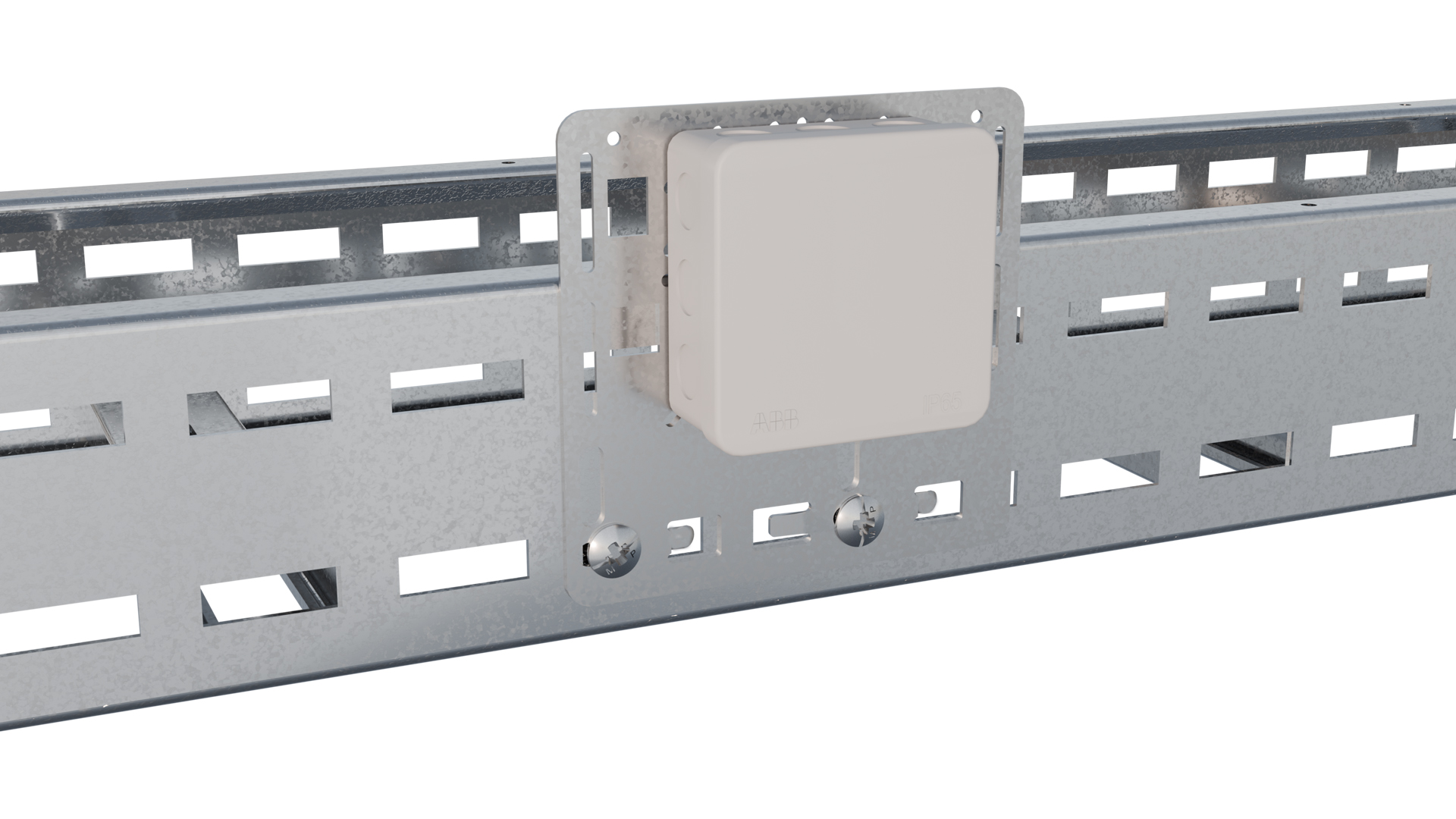

Mounting plate for cable ladders with pre-installed, halogen free junction box IP65 with ten entries. Supplied without terminal block, suitable strain relief - 2TKA00003876. Suitable terminal - 2TKA140016G1. There is also a cutout for 2 Actassi and 2 Keystone connectors for easy installation of data jacks.

All variants All variants

Product details

MP-number 112SD10
EAN 7394333038834
Length 180 mm
Width 50 mm
Height 175 mm
Weight 0.3 kg
Surface treatment Pre-galvanized 20 µm
Corrosion class C2
Configuration Box IP65 AP10
Suitable for Cable ladders
